Shenzhen Urovo Technology Co., Ltd. is a leading manufacturer of software and hardware products and comprehensive provider of cross-industry information solutions. As one of the leading professional manufacturers of Mobile Handheld Data Terminal in China, we specialize in manufacturing and developing "All-in-one" handheld data terminal integrated with RFID reader/writer, 1D/2D barcode scanner and wireless communications. Based on application of mobile data terminal technology, Urovo has made a number of groundbreaking achievement.
|

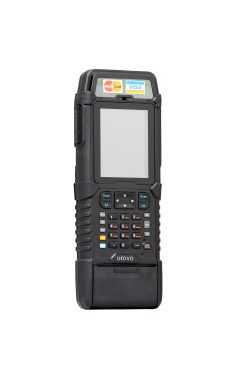

UROVO rugged mobile payment terminal i9000 is developed for application in current e-commerce industry, financial insurance, retail, express logistics, police enforcement, counterfeiting and sourcing etc. It compromises various functions of finance POS and traditional industry PDA to provide powerful solutions integrating customized application, security payment, fast data collection and information access through a portable single device. |
|
The collection and processing of data |
1D Barcode Reader
Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. 1D Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large range of reading data collector Urovo i9000 carefully collected data, which helps to increase the rate and efficiency. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
|
Modules and Wireless Networks
go top... menu… |
||||||||||||||||||||||||||||||||||||||
Payment Terminal |
||||||||||||||||||||||||||||||||||||||
Magnetic Card Reader / IC
Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. Urovo i9000 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
|
||||||||||||||||||||||||||||||||||||||
Built-in Thermal Printer |
||||||||||||||||||||||||||||||||||||||
Portable thermal printers designed to work in the field, to print receipts and receipts, ensuring their fast printing. A small number of moving parts and a robust design ensure trouble-free operation even in the most difficult conditions. The use of thermal printing technology eliminates the need for expensive ink cartridges or ribbons. No matter how many pages are printed - in the printer runs out of ink unexpectedly.
|
||||||||||||||||||||||||||||||||||||||
Minimalism |
||||||||||||||||||||||||||||||||||||||
i9000 is equipped with a Mini USB port, microSD card reader / PSAM / SIM card and audio output mini-jack. The possibility of recording enables integrated 5Mpx camera with autofocus. To facilitate the use of the device you will have a numeric keypad and alphabetical.
|
Resistance IP54
IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust. The second digit is a degree of protection against water. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Available hardware configurationsHardware configuration
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ... |
menu… |
Durability: | IP54 |
Humidity: | 5% -- 95% non condensing |
Waterproof: | IP54 |
Weight: | |
Temperature: | Operating (-10°C -- +50°C) / Storage (-20°C -- +60°C) |
Shock: | ----- |
Vibration: | ----- |
Drop: | multiple drops to concrete: 1.0m across the operating temperature range |
Sand and dust: | IP54 |
1D barcode scanner (reader): | none (available in other configurations) |
2D barcode scanner (reader): | No |
RFID scanner (reader): | No |
Magnetic card reader (MSR): | Yes - Triple track (tracks 1, 2, 3) : bi-directional : read life time: 1 milion times : ISO 7811 amplitude: 30% - 200% : read rate: 5-254cm/s |
Microchip card reader: | Yes - IC Card (Compatible with ISO 7816-3 and EMV 4.2 pay standards : Certfied to UnionPay PBOC 2.0) Contactless Cards IC ( Long effective distance to 50mm (depending on the specific envoirnment) : ISO/IEC 14443 A/MIFARE approved : Support ISO/IEC 14443 B read - write : MiFate Mini : MiFare 1K and MiFare 4K encryption : ISO/IEC 14443A communication: 212kBd, 424kBd, 49kBd : Certified to Unionpay qPBOC 2) |
Docking station connector: | No |
VESA standard – holders and mounts support: | No |
COM port: | No |
Dispaly: | 3.2" QVGA (240 x 320) rezystywny |
Brightness: | ----- |
Contrast: | ----- |
Touch screen: | Yes - Capacitive multi-touch |
Graphics card: | ----- |
Swivel Hinge: | No |
VGA out: | ----- |
TV Out: | ----- |
TV Tuner: | No |
Processor: | Samsung Cortex-A8 S5PV210@1GHz / Security Processor: MAXQ1850 |
Chipset: | ----- |
BIOS: | ----- |
Memory: | 512MB RAM / 512MB ROM |
Hard Drive: | 512MB + SD Card (possible to mount the sd card max.32GB) |
Flash Memory: | |
Battery: | 7.4V 2200mAh Lithium + Built-in 150mAh |
Working time on battery: | over 8h of standby time |
HotSwap battery: | No |
Fast battery replacement ability: | No |
Size: | 220x75x30mm - 550g (including battery) |
Casing material: | ----- |
Fanless casing: | Yes |
Operating System: | Android 2.3 (multi-language) or Windows CE 6.0 R3 |
LAN: | No |
WLAN: | Yes - 802.11b/g (54MB/sec, CISCO Compatible CCX2/3 Security, CISCO AP Security) |
Bluetooth: | Yes- Bluetooth Class 2.1 with EDR |
WAN: | none (available in other configurations) |
GPS: | none (available in other configurations) |
Flash Card Reader: | Yes - SD / TF |
CD/DVD: | ----- |
Camera: | none (available in other configurations) |
Audio: | Microphone / Loudspeaker / 3.5mm Jack |
Seciurity: | ----- |
In/Out: | mini USB : Micro SD/TF : SIM : PSAM x2 : DC Jack : 3.5mm audio jack |
Keyboard: | numeric : alphabetic x12 / directional x4 / function x10 / scan button |
Additional Navigation Devices : | ----- |
Color: | czarny |
Optional accessories: | High-speed Thermal printer |
Other: | ----- |
CURRENT PRICE |
|
2635.71 € | Net |
3241.92€ | Gross |
