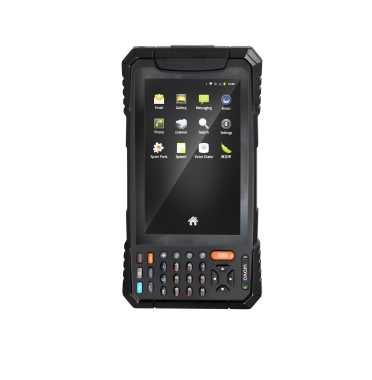

Industrial Tablet UROVO i8000 v.4
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/urovo-i8000-v.4-produkt-85989.html

Industrial Tablet UROVO i8000 v.4

EQUIPMENT AVAILABLE FROM JANUARY 2014.

kolektor danych urovo i8000 tabet przemysłowy
Shenzhen Urovo Technology Co., Ltd. is a leading manufacturer of software and hardware products and comprehensive provider of cross-industry information solutions. As one of the leading professional manufacturers of Mobile Handheld Data Terminal in China, we specialize in manufacturing and developing "All-in-one" handheld data terminal integrated with RFID reader/writer, 1D/2D barcode scanner and wireless communications.Based on application of mobile data terminal technology, Urovo has made a number of groundbreaking achievement.

Description

urovo i8000 barcode scanner kolektory danych

UROVO's i8000 adopts ergonomic design for easy operation and supports outdoor visualization of screen display by fully taking into account the apllication environment of the customer while providing the properties of a special industry device. With IP54 rating, high-capacity, battery and extra-low power consumption, it is allowed to serve under harsh environment for a long time. It is designed for use in warehouse management, logistics, transportation management, e-commerce, law enforcement and other industrial areas.
System specifications
 Processor Samsung Cortex-A8 S5PV210@1GHz
Display 7" TFT LCD (1240 x 600) capacitive : multi-touch
RAM 512MB
ROM 512MB
Connectors USB host : mini USB : 3.5mm audio Jack
  option - Micro SD/TF: SIM : PSAM
Audio Loudspeaker
Battery 3.7V 3000mAh Lithium (over 8h of standby time)
Keyboard numeric : alphabetic x12 / directional x4 / function x10 / scan button
Camera Front 1.3Mpx / Rear 5Mpx : autofocus
Operating System
 Windows CE 6.0 R3 or Android 2.3 (multi-language)

The collection and processing of data

1D/2D Barcode Reader

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. 1D/2D Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large range of reading data collector Urovo i8000 carefully collected data, which helps to increase the rate and efficiency. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.


 Scanning rate: 100±20 scan/sec
1D Laser Code 39 : Codebar : Code 128 : Discrete 2 of 5 : IATA 2 of 5 : Interleaved 2 of 5 : Code 93 : UPC A : UPC E0 : EAN 8 : EAN 13 : MSI : EAN 128 : UPC E1 : Trioptic Code 39 : Bookland EAN : Coupon Code : RSS-Limited : RSS-14 : RSS-Expanded
2D Laser 1D Symbologies : UPC/EAN : Bookland EAN : UCC Coupon Code : ESSN EAN : CODE 39 : CODE 128 : GS1-128 : ISBT 128 : Trioptic Code 39 : CODABAR : MSI : Interleaved 2/5 : Discrete 2/5 : Chinese 2/5 : Korean 3/5 : Matrix 2/5 : CODE 32 : CODE 93: CODE 11 : Inverse 1D : GS1 DataBar : Composite Codes
  2D Symbologies : PDF417 : MicroPDF417 : Data Matrix : Data Matrix Inverse : MaxiCode : QR Code : Aztec : Aztec Inverse Postal Codes: U.S. Postnet : U.S. Planet : U.K. Postal : Japan Postal : Australian Postal : Netherlands KIX Code : USPS 4CB/One Code/Intelligent Mail : UPU FICS Postal

urovo i8000 barcode scanner 1d 2d kolektor danych

Modules and Wireless Networks

WiFi 802.11b/g
Frequency Range
 54MB/sec, CISCO Compatible CCX2/3 Security, CISCO AP Security
Bluetooth Bluetooth Class2.1 with EDR
GPS Support A-GPS, 48 channels
Accuracy
 <1m, 1sec wakeup, warm botuup less than 38sec
WCDMA UMTS2100/900MHz : UMTS1900/850MHz : GSM850/900/1800/1900MHz
GSM CS GSM CS: UL 9.6kbps/DL 9.6kbps
GPRS/EDGE Multi-slot Class12. Class B
WCDMA CS UL 64kbps/DL 64kbps
WCDMA PS UL 384kbps/DL 384kbps
HSDPA DL 3.6Mbps
WAN GSM 850/900/1800/1900MHz
GPRS Class 10 Multi-slot, DL 85.6 kbps/UL 42.8kbps
GPRS Class 8
 Multi-slot, DL 85.6 kbps/UL 21.4kbps
CDMA 2000
 CDMA 2000, DMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)
CDMA 2000 1X
 UL/DL: 153.6kbps
EVDO Rev.0
 UL 153.6kbps DL 2.4Mbps
EVDO Rev.A UL 1.8Mbps DL 3.1Mbps

kolektory danych urovo i8000

go top... do góry menu… menu

Minimalism

urovo mobilator kolektory danych sim psam miniusb sdcard

i8000 is equipped with one USB / Mini USB, microSD card reader / PSAM / SIM card and audio output mini-jack. The possibility of recording enables integrated 5Mpx camera with autofocus. To facilitate the use of the device you will have a numeric keypad in addition alphabetical can define tasks for the selected the keys (hotkeys).

psam sim data colletor barcode scanner keyboard urovo i8000

Dimensions 240x130x20mm
Weight 450g (including battery)



kolektor danych urovo i8000 tablet przemysłowy komputery przemysłowe

go top... do góry menu… menu

Protection Standards

Tests and standards
Operating -10°C -- +50°C
Storage -20°C -- +60°C
Humidity 5% -- 95% non condensing
Dust protection
 IP5x (dust)
Water protection
 IPx4 (water)
Drop multiple drops to concrete: 1.2m across the operating temperature range
Regulatory CCC / CE / FCC
Electrical Safety
 Certified to Ul60950, CSA C22.2 No.6050, EN60950/IEC950
Laser Safety
 IEC Class 2/FDA Class II, in accordance with IEC60825/EN60825-1

go top... do góry menu… menu

kolektory danych przemysłowe tablety urovo i8000

Resistance IP54

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

go top... do góry menu… menu
The first digit [x]
Protection against solid objects		   The second digits [y]
Protection against liquids
No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1

Protection from dripping water
Protection from object not greater than 12mm in diamete
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection against heavy seas, or powerful jets of water


7
Protection against immersion


8
Protection against complete, continuous submersion in water
go top... do góry menu… menu

Available hardware configurations

 Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

v.1 v.2 v.3 v.4 v.5 v.6 v.7 v.8
WiFi
Bluetooth
OS
Kamera -
GPRS/GSM - - - -
3G - - - - -
GPS - - - - -
1D
 - - - -
2D - - -   - -


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
menu… menu

Durability: IP54
Humidity: 5% -- 95% non condensing
Waterproof: IP54
Weight:
Temperature: Operating (-10°C -- +50°C) / Storage (-20°C -- +60°C)
Shock: -----
Vibration: -----
Drop: multiple drops to concrete: 1.2m across the operating temperature range
Sand and dust: IP54
1D barcode scanner (reader): none (available in other configurations)
2D barcode scanner (reader): none (available in other configurations)
RFID scanner (reader): No
Magnetic card reader (MSR): No
Microchip card reader: No
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 7" TFT LCD (1240 x 600) capacitive : multi-touch
Brightness: -----
Contrast: -----
Touch screen: Yes - Capacitive multi-touch
Graphics card: -----
Swivel Hinge: No
VGA out: -----
TV Out: -----
TV Tuner: No
Processor: Samsung Cortex-A8 S5PV210@1GHz
Chipset: -----
BIOS: -----
Memory: 512MB RAM / 512MB ROM
Hard Drive: 512MB + SD Card (possible to mount the sd card max.32GB)
Flash Memory:
Battery: 3.7V 3000mAh Lithium
Working time on battery: 6 - 8h
HotSwap battery: No
Fast battery replacement ability: No
Size: 240x130x20mm - 450g (including battery)
Casing material: -----
Fanless casing: Yes
Operating System: Android 2.3 (multi-language) or Windows CE 6.0 R3
LAN: No
WLAN: Yes - 802.11b/g (54MB/sec, CISCO Compatible CCX2/3 Security, CISCO AP Security)
Bluetooth: Yes- Bluetooth Class2.1 with EDR
WAN: Yes - (WCDMA/GSM)
UMTS2100/900MHz : UMTS1900/850MHz
GSM: GSM850/900/1800/1900MHz
GPS: Yes - Support A-GPS, 48 channels
Flash Card Reader: -----
CD/DVD: -----
Camera: Yes - Front 2Mpx / Rear 5Mpx
Audio: Loudspeaker / 3.5mm Jack
Seciurity: -----
In/Out: Micro SD/TF : SIM : PSAM : USB host : mini USB : 3.5mm audio jack
Keyboard: numeric : alphabetic x12 / directional x4 / function x10 / scan button
Additional Navigation Devices : -----
Color: czarny
Optional accessories: -----
Other: -----


CURRENT PRICE
3005.44 € Net
3696.69€ Gross
