Payment terminal UROVO i9300 v.5
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/terminal-platniczy-urovo-i9300-v.5-produkt-86077.html

Payment terminal UROVO i9300 v.5

urovo i9300 tablet payment terminal
Shenzhen Technology Co. Urovo. Ltd. is a leading manufacturer of software and a comprehensive supplier of cross-industry solutions. Company UROVO achieved an excellent reputation as a manufacturer of data collectors. Due to the high position of the products in the high-tech enterprise, has won many awards in tests conducted around the world.

Description
payment terminal tablet android 2.3

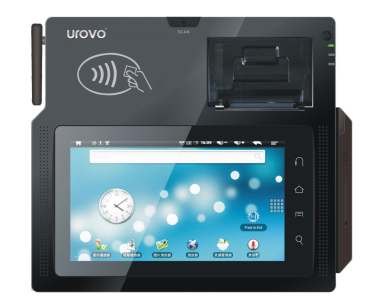

Payment Terminal UROVO i9300

Urovo i9300 is an all-in-one tablet payment terminal, integrated with all functions of traditional handheld POS and tablet PC. Based on Android platform, Urovo i9300 is specially designed for electronic payment application of retail and business field.
System specifications
  Processor  Samsung Cortex-A8 S5PV210@1GHz
 Display  7" TFT LCD (800 x480) Capacitive : Multi-Touch
 RAM  512MB DDR2
 ROM  512MB-2G
 Connectors  Serial port (RJ11) : HDMI : Mini USB : USB host : LAN
   Micro SD/TF (max. 32GB)
   optional - SIM
 Printer  Built-in Thermal Printer
 Audio  Headphone  : Microphone: Głośnik (2W)
 Battery  Built-in 2200mAh
   Emergency Battery (optional) - 1000mAh Lithium
 Keyboard  onscreen : touch buttons - MENU/HOME/ESC/SCAN
 Operating System
  environment Android 4.0 (multi-language)
 Warranty  12 months (optional 24 months)
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.



The collection and processing data

Barcode Scanner

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. 1D Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large range of reading data collector Urovo i9300 carefully collected data, which helps to increase the rate and efficiency. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.


 Scan speed: 100±20 scan/sec
1D Laser Code 39 : Codebar : Code 128 : Discrete 2 of 5 : IATA 2 of 5 : Interleaved 2 of 5 : Code 93 : UPC A : UPC E0 : EAN 8 : EAN 13 : MSI : EAN 128 : UPC E1 : Trioptic Code 39 : Bookland EAN : Coupon Code : RSS-Limited : RSS-14 : RSS-Expanded
2D Laser PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse, Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

industry payment terminal urovo i9300 tablet

Modules and Wireless Networks

WiFi 802.11b/g
Bluetooth Bluetooth Class2.1 with EDR
WCDMA UMTS2100/900MHz : UMTS1900/850MHz : GSM850/900/1800/1900MHz
GSM CS GSM CS: UL 9.6kbps/DL 9.6kbps (Just a phone call using headphones)
GPRS/EDGE Multi-slot Class12. Class B
WCDMA CS UL 64kbps/DL 64kbps
WCDMA PS UL 384kbps/DL 384kbps
HSDPA DL 3.6Mbps
WAN GSM 850/900/1800/1900MHz
GPRS Class 10 Multi-slot, DL 85.6 kbps/UL 42.8kbps
GPRS Class 8
 Multi-slot, DL 85.6 kbps/UL 21.4kbps
CDMA 2000
 CDMA 2000, DMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)
CDMA 2000 1X
 UL/DL: 153.6kbps
EVDO Rev.0
 UL 153.6kbps DL 2.4Mbps
EVDO Rev.A UL 1.8Mbps DL 3.1Mbps

go top... do góry menu… menu

Payment Terminal

barcode scanner rfid payment terminal urovo i9300

Magnetic Card Reader | IC

Card Readers UROVO the products meet the highest criteria for reading data. Architecture on which are formed readers can effectively protect personal information encoded on the cards. High safety standards allow the use of readers in all types of applications. Safety data reading confirms that the encryption standard ISO 7811. Robust plastic housing, easy integration with existing systems, high-speed read and write magnetic heads make the perfect choice.

 Safety
 Certified to PCI 3.0 Online/Offline : China UnionPay pin-input safety certificate
 Magcard Triple track (tracks 1, 2, 3) : bi-directional : read life time: 1 milion times : ISO 7811 amplitude: 30% - 200% : read rate: 5-254cm/s
 IC Card
 Compatible with ISO 7816-3 and EMV 4.2 pay standards : Certfied to UnionPay PBOC 2.0
 Contactless IC
 Long effective distance to 50mm (depending on the specific envoirnment) : ISO/IEC 14443 A/MIFARE approved : Support ISO/IEC 14443 B read - write : MiFate Mini : MiFare 1K and MiFare 4K encryption : ISO/IEC 14443A communication: 212kBd, 424kBd, 49kBd : Certified to Unionpay qPBOC 2.0

Built-in Thermal Printer

Portable thermal printers are designed to work in the field, to print receipts and receipts, providing high-speed printing. A small number of moving parts and a robust design ensure trouble-free operation even in the harshest conditions. The use of thermal printing technology eliminates the need for expensive ink or toner. No matter how many pages are printed pages - ink in the printer does not run out.

thermal printer tablet payment terminal urovo i9300 rfid barcode scanner

 Print speed
 50mm/s ~ 70mm/s
 Resolution
 203 dpi : 8 dot/mm
 Vitality
 100M pulses : 50KM
 Paper width
 58mm
 Paper height
 48mm

Minimalism

urovo mobilator data collector sim psam miniusb sdcard

i9300 is equipped with a Mini USB port, microSD card reader / SIM card and audio output mini-jack. Responsible for network communication modules and built-in RJ45 (LAN), RJ11, WiFi and Bluetooth. With HDMI, you can easily display the tablet on another screen.

 Dimensions 230x200x60mm
 Weight 500g



payment terminal android



payment terminal rj45





payment terminal wifi android urovo



payment terminal android sim card sd card



go top... do góry menu… menu

Safety
 Operating -10°C -- +55°C
 Storage -20°C -- +65°C
 Operating Humidity
 30% -- 85% bez kondensacji
 Regulatory CCC / CE
 Electrical Safety
 Certified to Ul60950, CSA C22.2 No.6050, EN60950/IEC950
 Laser Safety
 IEC Class 2/FDA Class II, in accordance with IEC60825/EN60825-1
go top... do góry menu… menu

Available hardware configurations

 Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

v.1 v.2 v.3 v.4 v.5 v.6
WiFi
Bluetooth
OS
GPRS/GSM - -
3G     - -
1D - - -
2D
 - - -


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
menu… menu

Durability: -----
Humidity: Operating Humidity: 30%–85% / Storage Humidity: 10%–90%
Waterproof: -----
Weight:
Temperature: Operating (-10°C -- +55°C) / Storage (-20°C -- +65°C)
Shock: -----
Vibration: -----
Drop: -----
Sand and dust: -----
1D barcode scanner (reader): Yes - 2D scanner CMOS (Motorola Scan Engine)
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes.
2D barcode scanner (reader): Yes - 2D scanner CMOS (Motorola Scan Engine)
2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse, Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
RFID scanner (reader): Yes - Support 14443 A / 14443 B approved; Frequency: 10 MHZ ~ 20 MHZ; Reading access time: less than 300 milliseconds
Magnetic card reader (MSR): Yes - Triple track (tracks 1, 2, 3) : bi-directional : read life time: 1 milion times : ISO 7811 amplitude: 30% - 200% : read rate: 5-254cm/s
Microchip card reader: Yes - IC Card ( Compatible with ISO7816 standard)
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 7" TFT LCD (800 x480) Capacitive : multi-touch
Brightness: -----
Contrast: -----
Touch screen: Yes - Capacitive multi-touch
Graphics card: -----
Swivel Hinge: No
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Samsung Cortex-A8 S5PV210@1GHz
Chipset: -----
BIOS: -----
Memory: NAND/INAND Flash 512M-2G / DDR2 512M RAM
Hard Drive: 512MB + SD/TF Card (possible to mount the sd card max.32GB)
Flash Memory:
Battery: Built-in WYPEŁNIJ : Emergency Battery (option) - 1000mAh Lithium
Working time on battery: Dormancy standby time: 100h / Power supply time: 4h / Battery charging time: 4h
HotSwap battery: No
Fast battery replacement ability: No
Size: 230mm*200mm*60mm - 500g
Casing material: -----
Fanless casing: Yes
Operating System: Android 4.0 (multi-language)
LAN: Yes - RJ45
WLAN: Yes - WIFI 802.11 b/g : 54MB/sec
Bluetooth: Yes- Bluetooth Class 2.1 with EDR
WAN: Yes - 3G + GSM/GPRS | 3G (option)
GPS: No
Flash Card Reader: Yes - SD / TF (max. 32GB)
CD/DVD: -----
Camera: Nie
Audio: Microphone / Headset / Loudspeaker (2W)
Seciurity: Warranty 12 months | 24 months (option)
CCC : CE | Electrical Safety - UL60950,CSA C22.2 No.6050,EN60950/IEC950 | Laser Safety - IEC Class 2 /FDA Class II,in accordance with IEC60825-/EN60825-1
In/Out: Serial port (RJ11) : HDMI : Mini USB : USB host
Keyboard: Mechanical buttons: Power key Capacitive keypad: MENU/HOME/ESC/SCAN
Additional Navigation Devices : -----
Color: czarny
Optional accessories: -----
Other: High-speed Thermal printer | 3x PSAM ISO7816


CURRENT PRICE
3058.27 € Net
3761.67€ Gross
