Payment Terminal SMARTPEAK P900SP Android v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/terminal-platniczy-smartpeak-p900sp-android-v.2-produkt-87504.html

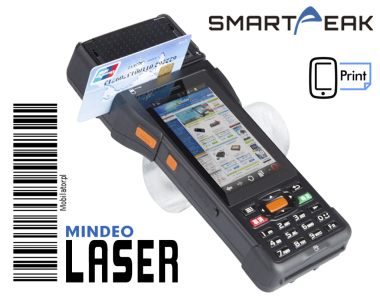

Payment Terminal SMARTPEAK P900SP Android v.2

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d


Smartpeak P900 SP  has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP 54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

 Processor  Qualcomm MSM8625Q quad-core 1.2GHz
 Display 4" (800x480) WVGA | IPS | Capacitive | multi-touch
 RAM  1GB
 ROM  4GB
 Connectors  MicroSD : Mini USB
 GPS  GPS | A-GPS
 Audio  Speaker : Microphone
 Camera  5Mpx
 Battery  3000 mAh Li-Ion 3.7V
 Keyboard   Numeric (+function keys) + On-Screen
 Environment  Android 4.1
 Modules (factory)
 GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth  4.0 : GPS+A-GPS
 Dimensions  226 mm x 89/73 mm x 54/31mm - 620g
 Resistance  IP54
 Readers (optional)
  1D - MINDEO (LASER)
 Sensors Gravity sensor, ambient light sensor, proximity sensor
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


1D (Laser)
Finger Print
Printer 3G Camera
v.1 - -
v.2 -
v.3

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D
MINDEO (Laser)

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

Built-in Thermal Printer

Portable thermal printers designed to work in the field, to print receipts and receipts, ensuring their fast printing. A small number of moving parts and a robust design ensure trouble-free operation even in the most difficult conditions. The use of thermal printing technology eliminates the need for expensive ink cartridges or ribbons. No matter how many pages are printed - in the printer runs out of ink unexpectedly.

 Printing Speed
18 row/sec,  Typical 60mm/sec, Low battery 30mm/sec
 Paper Roll Width 58mm
 Paper Roll diameter
30mm
 Printing Width
48mm

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

Magnetic Card Reader / IC

Card Readers Smartpeak are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. Urovo i9000 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.

 Magcard Triple track MSR, bi-directional swiping, ISO7811,7812
 SAM card 1 SAM Solt, ISO7816
 IC Card
1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV
 Karta zbliżeniowa IC 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

NFC

NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

NFC NFC 13.56Mhz  ISO14443 A / B i ISO15693

Finger Print

Fingerprint security feature makes our Tablet Becomes even more personal, Allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to Effectively protect your data.

go top... do góry menu… menu



Resitance

Applicable standards

Operating -20°C -- +60°C
Storage -40°C -- +80°C
Humidity 10% - 90% RH | non-condensing
Dust IP5x (dust)
Water IPx4 (water)
Drop Multiple drops to concrete 4.5ft./1.2m the entire operation range

go top... do góry menu… menu

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

IP54 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in Smartpeak P900 SP adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11a b/g/n
GPS  GPS, supported A-GPS,
Bluetooth  Bluetooth 4.0 + EDR; Class II
GSM/3G GSM/EDGE:850/900/1800/1900
WCDMA:2100/900
CDMA:800/1900
   The ability to make voice calls

go top... do góry menu… menu

Minimalism

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have P900 SP. The device weighs just 630g and its dimensions (226 x 89/73 x 54/31mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that P900 SP is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

 Dimensions 226 mm x 89/73 mm x 54/31mm
 Weight 620g



Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP54
Humidity: 10 to 90%(no condensation)
Waterproof: IP54
Weight:
Temperature: Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C
Shock: -----
Vibration: -----
Drop: 1.2 meter
Sand and dust: IP54
1D barcode scanner (reader): 1D LASER - Mindeo
2D barcode scanner (reader): -----
RFID scanner (reader): Contactless card: 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC
Magnetic card reader (MSR): Yes - Triple track MSR, bi-directional swiping, ISO7811,7812
Microchip card reader: Yes - 1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV | 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC | 1 SAM Solt, ISO7816
Docking station connector: No
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 4 ", capacitive, multi touch, WVGA (480x800), IPS
Brightness: 350nits
Contrast: -----
Touch screen: Tak
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Qualcomm MSM8625Q Quad-core 1.2GHz
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 4GB
Flash Memory:
Battery: 3.7V; 3000mAh Li-Ion
Working time on battery: 6h
HotSwap battery: -----
Fast battery replacement ability: No
Size: 226 mm x 89/73 mm x 54/31mm - 620g
Casing material: high quality plastic
Fanless casing: Yes
Operating System: Android 4.1
LAN: No
WLAN: 802.11 a/b/g/n Built-in Antenna
Bluetooth: Bluetooth 4.0 + EDR
WAN: WCDMA/GSM/CDMA2000/CDMA 1X
GPS: Built-in GPS, support AGPS
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Yes- 5Mpx
Audio: Built-in Speaker : Microphone
Seciurity: -----
In/Out: mini USB (support OTG), Mirco SD card slot (max.32GB)
Keyboard: Numeric (+function keys) + On-Screen
Additional Navigation Devices : -----
Color: black
Optional accessories: High-speed Thermal printer
Other:

Factory accessories:
- charger
- hand strap

Sensors:
- triaxial gravity
- light sensor
- proximity sensor



CURRENT PRICE
3299.80 € Net
4058.75€ Gross
