Industrial Tablet Winmate M101BL - ST
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-winmate-m101bl--st-produkt-89280.html

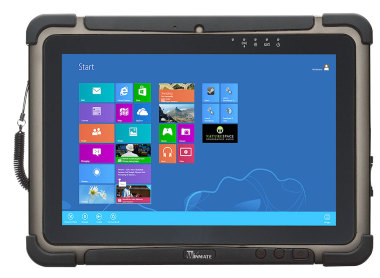

Industrial Tablet Winmate M101BL - ST

winmate m101b rfid 3g wcdma 1d/2d barcode scanner czytnik kodow kreskowych 2d

Winmate has had an impressive history of making successful rugged and embedded products, and just recently we started concentrating more on Industrial grade Rugged Tablet PC market, as we seeing a trend of continual growth in this market. That is why Winmate is introducing the new M101BL - ST, a 10.1" rugged tablet PC with superior quad-core processing performance to further grow our lineup of rugged tablets to fit the needs of every industrial application.


Description and version presentation

winmate m101b rfid 3g wcdma 1d/2d barcode scanner czytnik kodow kreskowych 2d

M101BL - ST is offered with IIntel BayTrail-M Quad-Core 1.8GHz processor to provide high performance and low power consumption, providing extended battery life. It supports with Windows 10/8.1/7 operating system to fulfill increasing requirement in industrial applications and provides an alternative solution for those between general consumer and extremely rugged application.

 Processor   Intel BayTrail-M Quad-Core 1.8GHz
 Display  10.1” (1280x800 - WUXGA)
 Display Type
 IPS LED (SUNLIGHT READABLE) | MultiTouch
 LEDs
 Power | Battery | HDD | RF
 Brightness  300nits
 Contrast  800:1
 RAM  4GB SODIMM DDR3L-1600 1.35V
 ROM  64 GB mSATA MLC SSD
 Connectors Micro HDMI(option) | 30-pin Combo Conn LAN/RS232 | SD Card Reader | USB 3.0  Audio |  DC In
 GPS  u-Blox Neo-6Q
 Audio  1x - Line out / MIC In |  2x - 1W speakers
 Camera  Front: 2MP | Rear: 5MP + Auto-Focus  + Flash (LED)
 Baterry  Li-Polymer 7.4V, 5140 mAh
 Baterry (optional)
 Li-Polymer 7.4V, 10280 mAh
 Keyboard  On-Screen : Function keys
 Buttons
 1x - Power | 1x - Home | 2x -Volume | 2x - User-defineable Function Keys
 System (factory)

Windows 10 IoT Enterprise

Windows Embedded 8.1 Industry Pro

Windows Embedded Standard 7

Windows 7 Pro for Emedded Systems

 Modules
 802.11 a/b/g/n | Bluetooth 4.0 Class 1 | 3G (optional) | 4G (optional)
 Dimensions
 272 × 197 × 19 - 1.2 kg / 1.4 kg (with bigger battery)
 Resistance  IP65
 Readers (optional)  RFID HF 13.56 Mhz or 1D/2D Barcode Scanner (both readers can not be placed in the same time)
 Sensors (factory)  Light , G Sensor, Gyrometer, E-Compass
 Certificates  CE, FCC, IC, UL 60950, EN60601
 Warranty
 12 months

winmate m101b-st micro usb 3.0 microphone



go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

 Model
Intermec EA30 (1D/2D Imager)
 Light Source
Highly visible white LED (100lm/W)
 Aimer
650 nm laser, Class 2
 Scan Rate
1D Mode - 120fps | 2D Mode - up to 60fps

winmate m101b-st intermec ea30

1D

EAN/UPC, GS1 Databar, RSS, Code 39, Code 128, UCC/ EAN 128, ISBN, ISBT, Interleaved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, Postal codes
2D Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec, GS1 composite codes

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

 RFID  HF 13.56 Mhz
 Standards
ISO15693 (1-5m)
   ISO14443A (MIFARE)

 ISO18092 (NFC)

winmate m101b-st mifare  hf ISO15693 ISO14443A

FC standards cover communications protocols and data exchange formats, and are based on existing radio-frequency identification (RFID) standards including ISO/IEC 14443 and FeliCa.

go top... do góry menu… menu

Resistance

Applicable standards

In terms of device ruggedness, the M101BL - ST can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -10° to 50°C, optimized for most industrial deployments. M101BL - STis a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

 Operating  (AC)
-20°C -- +60°C
 Operating  (Battery) -10°C -- +50°C
 Operating humidity
10% - 90% non-condensation
 Shock MIL-STD-810G Method 516.6 Procedure I
 Vibration MIL-STD-810G Method 514.6 Procedure I
 Drop MIL-STD-810G Method 516.6 -  1.2m  to concrete
 Dust IP6x (dust)
 Water IPx5 (water)



umpc, tablet, rugged, semi rugged, full rugged, tablet przemysłowy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemysłu, i-mobile Computer made in accordance with the requirements of the U.S. military standard MIL-STD-810G. He keeps working after falling onto concrete from a height of 1.2 meters, is not afraid of vibration, shock, water, mud and temperature changes. Certification C1D2 means that during operation of the tablet will not occur and the spark generating heat sufficient to ignite the vapors contained in the atmosphere of acetylene, hydrogen and other gases (important when operating in the petroleum industry). Operating temperature range from minus 20 to plus 60 degrees Celsius.

go top... do góry menu… menu

winmate m101b rfid 3g wcdma 1d/2d barcode scanner czytnik kodow kreskowych 2d

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle

go top... do góry menu… menu

Modułes and Wireless Networks

winmate m101b rfid 3g wcdma 1d/2d barcode scanner czytnik kodow kreskowych 2d

Real-time data access to the right information is very important to mobile users. M101BL - ST offers optional 3G/4G(optional), GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

 WIFI  802.11 a/b/g/n
 GPS  U-Blox Neo-6Q
 Bluetooth  Bluetooth 4.0 + Class I
 3G(optional)  3G: HSPA+,GSM/GPRS/EDGE
 4G(optional) 4G: (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO Rev A, 1xRTT)

bluetooth 4.0 10 inches rfid barcode scanner

go top... do góry menu… menu

Functionality



micro  lan rs232 winmate m101b-st

Winmate describes the M101BL - ST tablet as "rugged" and with its corner protection it certainly looks much tougher than all those Barbie-thin and fragile consumer tablets. Given Winmate's experience in rugged mobile computing, we assume those are just partial specs.

winmate m101b-st replaceable capacitive stylus function key

 Dimensions 271.8 x 197.2 x 19 mm
 Weights 1.2kg/1.4kg(with bigger battery)
docking connector bottom side winmate m101b-st



go top... do góry menu… menu


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 10% - 90% non-condensation
Waterproof: IP65
Weight:
Temperature: Operating (AC): -20°C -- +60°C
Operating (Battery): -10°C -- +50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6 - 4ft./1.2m
Sand and dust: IP65
1D barcode scanner (reader): -----
2D barcode scanner (reader): -----
RFID scanner (reader): -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: Yes
COM port: 30-pin Combo Conn (LAN or RS232)
Dispaly: 10.1” (1280x800 - WUXGA) | IPS LED | MultiTouch
Brightness: 300nits
Contrast: 800:1
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Intel BayTrail-M Quad-Core 1.8GHz
Chipset: -----
BIOS: AMI System BIOS
Memory: 4GB SODIMM DDR3L-1600 1.35V
Hard Drive: 64 GB mSATA MLC SSD
Flash Memory: Tak
Battery: Li-Polymer 7.4V, 5140 mAh
Li-Polymer 7.4V, 10280 mAh (optional)
Working time on battery: 8 Hours* - Battery Mark Ver. 4.0.1
With BatteryMon Test Program under Power Saving Mode
16 hours(with bigger battery)
HotSwap battery: -----
Fast battery replacement ability: Nie
Size: 271.8 x 197.2 x 19 mm - 1.2kg/1.4(with bigger battery)
Casing material: -----
Fanless casing: Yes
Operating System: Windows 10 IoT Enterprise
Windows Embedded 8.1 Industry Pro
Windows Embedded Standard 7
Windows 7 Pro for Embedded Systems
LAN: 30-pin Combo Conn (LAN or RS232)
WLAN: 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0 + Class I
WAN: -----
GPS: u-Blox Neo-6Q
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Front: 2MP
Rear: 5MP + Auto-focus + LED Flash
Audio: 1x - Line out / MIC In | 2x - 1W speakers
Seciurity: IP65 | MIL-STD-810G
In/Out: Micro HDMI(option), LAN/RS232 (30pin), SD Card Reader, USB 3.0, Audio, DC In
Keyboard: on-Screen | Function keys
Additional Navigation Devices : -----
Color: -----
Optional accessories: 30pin-LAN : 30pin-RS232 : Battery 10600 mAh Li-Polymer : Hand Strap : Micro-USB Cable : Vehicle Charger : Docking Station : Vehicle Docking : VESA Mount kit: Shoulder strap
Other: Power Adapter | Instruction | Drivers | Stylus


CURRENT PRICE
6098.61 € Net
7501.29€ Gross
