Rugged Tablet Senter ST907W-GW v.1.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-senter-st907w-gw-v.1.1-produkt-89062.html

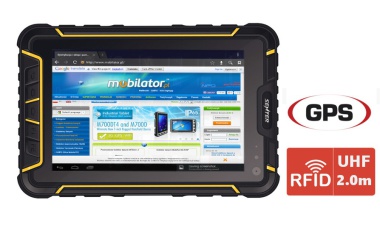

Rugged Tablet Senter ST907W-GW v.1.1

st907w-gw senter tablet rugged

ST907W-GW adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.


Description

rugged tablet senter st907w-gw waterpoof





 Processor  MSM8916, Cortex A53, Quad core CPU, 1.2GHz
 Display  7” (1280x800) IPS LCD
 Type of display  Capacitive
 Brightness  400cd/m2
 Contrast  800:1
 RAM  2GB
 ROM  16GB
 Connectors (factory)  MicroUSB (OTG) | Port MicroSD | Port MicroSIM | Audio Jack | DC-In
 GPS (optional)  Support GPS, DBS, GLONASS and professional GPS,Ublox; GPS and Beidou (alternative)
 Audio  Build-in Microphone | Build-in Speaker | Audio Jack
 Camera (Front)
 2Mpx
 Rear Camera
 8Mpx + Autofocus + Flash
 Keyboard

 On-Screen + Physical keys

 Home | Menu | Return | ON/OFF | Volume | Reset | Barcode (functional)

 Battery  Litowa 3.7V 7200mAh
 System  Android 5.1
 Modules(factory)
 802.11 b/g/n | Bluetooth 4.0  | 4G
 Dimensions  209mm x 139mm x 19mm | 590g
 Resistance  IP67
 Sensors (factory)  Compass | Gravity Sensor
 Certyficates  CE | ROHS | FCC
 Warranty  12 months
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

military tablet rugged st907w-gw dustproof

Select a version for yourself

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.


v.1
v.1.1 v.3 v.4 v.7 v.7.1 v.7.2 v.7.3 v.9 v.10 v.12 v.13
GPS Standard
- - - - - - - - - -
GPS-Pro - - - - - - - - -
RFID LF 125KHz
- - - - - - - - - - -
RFID LF 134.2KHz(FDX)
- - - - - - - - - - -
RFID LF 134.2KHz(FDX/HDX) - - - - - - - - - - -
RFID UHF 865-868MHz - - - - - - - - - - -
1D (CCD)
- - - - - - - - - - -
1D (LASER) - - - - - - -
2D (CMOS) - - - - - - - - - -
Fingerprint - - - - - - - - - - -

Resistance

waterproof ip67 senter st907w-gw

 Working
-20°C -- +50°C
 Storage -40°C -- +60°C
 Humidity
5% - 95% non-condensation
 Dust IP6x (dust)
 Water IPx7 (water)
 Drop 1.2m

rugged ip67 senter st907w-gw

Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.
6

7

Protection against immersion



go top... do góry menu…



The collection and processing of data

Barcode Scanner

physical keys st907

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
ZEBRA EM1350 (LASER) NEWLAND™ EM3096 (CMOS)
MOTOROLA™ SE655 (CCD)

Jacket

barcode scanner 1d 2d senter st907w-gw

If you use a scanner other than Motorola SE655 device is equipped with a special appetizer, which ensures the smooth operation of the barcode scanner using the latest barcode scanners Motorola, Newland and Code Reader.



RFID

st907w-gw rugged tablet

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

 Typ RFID UHF
 Częstotliwość RFID UHF 865-868MHz - 1,5m-2m

go top... do góry menu…



Modules and Wireless Networks

st907w-gw rugged tablet

With HSDPA module, you need only insert a MicroSIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal ST907W-GW WCDMA module adapts automatically to transfer and network coverage.

 WIFI  802.11 b/g/n
 GPS (Standard)
 GPS,DBS, GLONASS
 GPS (Professional)  GPS,Ublox i Beidou(alternative)
 Bluetooth  Bluetooth 4.0
4G

 2G:GSM 900/1800/1900  B2/B3/B8
 3G:WCDMA: 850/1900/2100   B1/B2/B5
 4G:LTE_ FDD: 1800/2100/2600   B1/B3/B7
 LTE_TDD :2555-2655MHz/:2300-2400MHz B41/B40

    The ability to make voice calls (speaker / audio jack)

st907w-gw wifi tablet rugged senter

The latest WiFi wireless module operating in 802.11 b/g/n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top... do góry menu…



Minimalism and comfort

st907w-gw rugged tablet rfid

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with Senter problem disappears forever, as it weighs only 590g and its dimensions (209 x 139 x 19mm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.


 Dimensions 209mm x 139mm x 19mm
 Weight 590g




more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP67
Humidity: 5% - 95% non-condensing
Waterproof: IP67
Weight:
Temperature: Operating temperature: -20°C -- +50°C
Storage temperature: -40°C -- +60°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP67
1D barcode scanner (reader): none (available in other configurations)
2D barcode scanner (reader): none (available in other configurations)
RFID scanner (reader): RFID UHF 865-868MHz (1,5m-2m)
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: No
Dispaly: 7” (1280x800) IPS LCD
Capacitive
Brightness: 400nits
Contrast: 800:1
Touch screen: Tak
Graphics card: -----
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: MSM8916, Cortex A53, Quad core CPU (Quad Core 4x - 1.2GHz)
Chipset: -----
BIOS: -----
Memory: 2GB
Hard Drive: 16GB
Flash Memory: Yes
Battery: 3.7V 7200mAh Lithium
Working time on battery: Operating time (depending on usage) - 7h
HotSwap battery: No
Fast battery replacement ability: Yes
Size: 209mm*139mm*19mm
590g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 5.1
LAN: -----
WLAN: IEEE 802.11 b/g/n
Bluetooth: Bluetooth 4.0
WAN: GSM: 900/1800/1900 B2/B3/B8
WCDMA: 850/1900/2100 B1/B2/B5
FDD-LTE: 1800/2100/2600 B1/B3/B7
LTE_TDD:2555-2655MHz/:2300-2400MHz B41/B40
GPS: Support GPS, DBS, GLONASS
Flash Card Reader: micro SD/TF max. 32GB
CD/DVD: -----
Camera: FRONT: 2px
REAR: 8Mpx (Auto Focus+ Flash)
Audio: Build-in Microphone | Build-in Speaker| Audio Jack
Seciurity: IP67
In/Out: MicroUSB (OTG) | Port MicroSD | Port SIM | Audio Jack | Zasilanie
Keyboard: Ekranowa + Przyciski fizyczne
Home | Menu | Return | ON/OFF | Volume | Reset | Barcode (funkcyjny)
Additional Navigation Devices : -----
Color: orange-black
Optional accessories: Hand Strap, Car charger
Other: Digital Compass | Gravity Sensor


CURRENT PRICE
2459.68 € Net
3025.41€ Gross
