Rugged Tablet MobiPad T80 v.4
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-mobipad-t80-v.4-produkt-87551.html

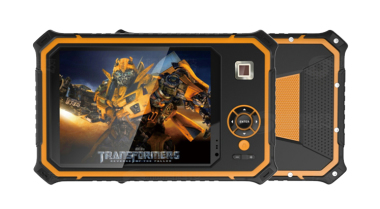

Rugged Tablet MobiPad T80 v.4

tablet przemyslowy mobipad t80 ip67

T80 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.

Description

tablet kolektor danych android mobipad t80

 Processor  Cortex-A7 (Quad Core 4x - 1.5GHz)
 Graphics  Andreno 205
 Display  7.85” (1024x768) IPS/AFFS LCD Sunlight Readable
 Type of Display
 Capacitive (G+G 5-points)
 Brightness
 420nits
 RAM  1GB
 ROM  16GB EMCP
 Connectors (factory)  MicroUSB (OTG) | Port MicroSD | Port SIM | Audio Jack
 GPS (factory)  GPS
 GPS (optional)  GPS/GLONASS/GALILEO/QZSS/GNSS
 Audio  Built-in Microphone | Built-in Speaker | Audio Jack
 Camera (Front)
 2MPx
 Camera tylna (Rear)
 8MPx + Autofocus + Flash
 Keyboard  On-Screen + Functional keys
   Home | Menu | Return | ON/OFF | Volume | Barcode (functional)
 Battery (factory)
 Li-on 3.7V 8000mAh

 Standby time -800h
   Operating time (depends of usage) - 14h
 Battery (optional)  Li-on 3.7V 11000mAh
 System  Android 4.2.2
 Modules (factory)  802.11 a/b/g/n | Bluetooth V4.0 (EDR+A2DP)  | 2G/3G (GSM/WCDMA) | GPS
 Weight  256mm x 159mm x 23mm | 860g
 Resistance  IP67
 Sensors (optional)  Temperature Sensor | Humidity Sensor | Pressure Sensor
 Certificates  FCC | CE | ROHS | IP67 | Vibration/Shock
 Warranty  12 months
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

magazyn tablet firma przemyslowy rugged mobipad t80

Select a version for yourself

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.


v.1
v.2 v.3 v.4 v.5 v.6
3G/GPS
GPS+Glonass - - - -
GPS/Glonass/GALILEO/QZSS/GNSS
RFID HF/NFC
- - -
RFID LF
- - -
RFID UHF
- - - - - -
2D (CMOS)
- - - - - -
Stylus - - - - - -
Bateria 11000 mAh
Sensors: Temperature, Humidity, Pressure


go top… do góry menu… menu

Resistance

ip67 android tablet przemyslowy mobipad t80

 Operating
-20°C -- +60°C
 Storage -40°C -- +80°C
 Relative Humidity
5% - 95% non condensing
 Dust
IP6x (dust)
 Water IPx7 (water)
 Drop  3,93ft./1.2m

odporny na upadek tablet ip67 mobipad t80

Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.



Complete protectionm against contact. Protection from infiltration of dust.
6

7

Protection against immersion


go top… do góry menu… menu

The collection and processing of data

Barcode Scanner

skaner kodów kreskowych mobipad t80

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D / 2D
MINDEO ME5110 (CMOS)

RFID

IP67 tablet wodoodporny pyloodporny mobipad t80

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

 Type RFID HF/NFC
 Frequency 13.56 MHz
 Standard ISO/IEC 15693
  ISO/IEC 14443A

go top… do góry menu… menu

Modules and Wireless Networks

mobipad t80 tablet przemyslowy

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal T80 WCDMA module adapts automatically to transfer and network coverage.

 WIFI  802.11 a/b/g/n
 GPS (Standard)
GPS
 GPS (Professional) GPS+GLONASS
 GPS (Professional+) GPS+GLONASS+GALILEO+QZSS+GNSS
 Bluetooth Bluetooth V4.0 (EDR+A2DP)
 2G/3G
GSM/WCDMA 3.75G
    The ability to make voice calls (speaker / audio jack)

mobipad t80 bluetooth 3g

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… do góry menu… menu

Minimalism and comfort

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with Senter problem disappears forever, as it weighs only 860 and its dimensions (256 x 159 x 23mm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.


 Dimensions 256mm x 159mm x 23mm
 Weight 860g

zlacza port sim oth micro usb audio jack



go top… do góry menu… menu


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP67
Humidity: 5% - 95% non-condensing
Waterproof: IP67
Weight:
Temperature: Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C
Shock: 1-19Hz/1.0mm
19-200Hz/1.0g
Vibration: -----
Drop: MIL-STD-810G Method 516.6 Procedure IV
1.2 meters
Sand and dust: IP67
1D barcode scanner (reader): 1D/2D (CMOS) MINDEO ME5110
2D barcode scanner (reader): 1D/2D (CMOS) MINDEO ME5110
RFID scanner (reader): RFID HF/NFC (13.56MHz)
RFID UHF (1-3m)
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: No
Dispaly: 7.85” (1024x768) IPS/AFFS LCD Sunlight Readable
Brightness: 420nits
Contrast: -----
Touch screen: Capacitive (G+G 5-points)
Graphics card: Andreno 205
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Cortex-A7 (Quad Core 4x - 1.5GHz)
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 16GB EMCP
Flash Memory:
Battery: Li-Ion 3.7V 11000mAh
Working time on battery: Operating time (depending on usage) - 14h
Standby time - 800h
HotSwap battery: No
Fast battery replacement ability: No
Size: 256mm x 159mm x 23mm
860g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.2.2
LAN: -----
WLAN: IEEE 802.11b/g/n
Bluetooth: Bluetooth V4.0 (EDR+A2DP)
WAN: GSM/WCDMA 3.75G
HSDPA+42.2Mbps | HSUPA+ 11.5Mbps
WIFI AP
GPS: GPS+GLONASS
Flash Card Reader: micro SD/TF max. 64GB
CD/DVD: -----
Camera: FRONT: 2MPX
REAR: 8MPX (Auto Focus+ Flash)
Audio: Wbudowany Mikrofon | Wbudowany Głośnik | Audio Jack
Seciurity: IP67
In/Out: MicroUSB (OTG) | Port MicroSD | Port SIM | Audio Jack | Zasilanie
Keyboard: On-Screen + Functional key
Home | Menu | Return | ON/OFF | Volume | Reset | Barcode (funtional)
Additional Navigation Devices : -----
Color: orange-black
Optional accessories: -----
Other: Sensors (factory)
Accelerometer, Gyroscope, Gravity, Linear Acceleration, Rotation, Magnetic Field

Capacitive stylus


CURRENT PRICE
4344.66 € Net
5343.93€ Gross
