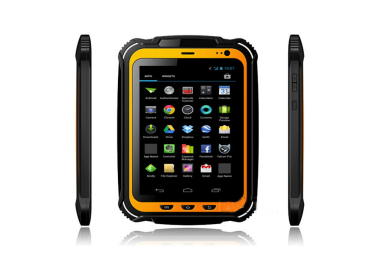

Rugged Tablet MobiPad T1 v.4
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-mobipad-t1-v.4-produkt-87515.html

Rugged Tablet MobiPad T1 v.4

tablet przemyslowy mobipad t1 ip67


MobiPad T1 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.


Description

mobipad t1 rfid hf lf tablet przemysłowy ze skanerem

 Procesor  MTK8382 Quad Core (4x - 1.3GHz)
 Graphics  Mali - 400MP
 Display  7.85” (1024x768) IPS/AFFS | Tempered Glass | 5-points| multi-touch
 Type of display
 Capacitive
 Brightnesss  400nits
 Contrast  800:1
 RAM  1G LPDDR2
 ROM  16GB EMCP
 Connectors (factory)  MicroUSB (OTG) | Port MicroSD | Port SIM | Audio Jack | micro HDMI
 GPS (factory)  Standard (GPS/EPO/A-GPS)
 Audio  Built-in Microphone | 2x - Speaker | Receiver | Audio Jack
 Camera (Front)
 2MPx
 Camera  (Rear)
 13MPx + Autofocus + Flash
 Keyboard  On-Screen + Physical keys
   Home | Menu | Return | ON/OFF | Volume | Reset
 Battery  Li-Ion 15000mA

 Standby mode - 1128h
   Operating mode (depends of usage) - 19h
 System  Android 4.2.2
 Modules (factory)  802.11 a/b/g/n | Bluetooth 3.0  | 2G/3G (GSM/WCDMA) | GPS
 Dimensions   244mm x 168mm x 16mm | 811g
 Resistance  IP67
 Sensors (factory)  Accelerometer | G-Sensor | Light Sensor | Proximity Sensor
 Certificates  CE | ROHS | IP67
 Warranty  12 months
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

magazyn tablet firma przemyslowy rugged mobipad T1 android

Select a version for yourself

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.


v.1
v.2 v.3 v.4
RFID LF
- - -
RFID HF
- - -
NFC
- - -

go top… do góry menu… menu

Resistance

ip67 android tablet przemyslowy

 Operating
-20°C -- +60°C
 Storage -40°C -- +80°C
 Humidity
5% - 95% non-condensing
 Dust IP6x (dust)
 Water IPx7 (water)
 Drop  3,93ft./1.2m

tablet przemysłowy android

Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.
6

7

Protection against immersion.


go top… do góry menu… menu

The collection and processing of data

RFID

IP67 tablet wodoodporny pyloodporny

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

  RFID HF
NFC RFID LF
 Frequency 13.56 MHz 13.56 MHz 125khz
 Reading distance
to 3cm
to 3cm to 3cm
 Standard ISO/IEC 15693 ISO 18092
EM/TK 4100/4200
  ISO 14443 A/B ISO/IEC 15693
    ISO 14443

go top… do góry menu… menu

Modules and Wireless Networks

3g 2g mobipad t1 modem

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal T1 WCDMA module adapts automatically to transfer and network coverage.

 WIFI  802.11 a/b/g/n
 GPS (Standard)
Standard
 Bluetooth Bluetooth 3.0
 2G/3G
(2G) 850/900/1800/1900MHz | (3G)  850/1900/2100MHz
  The ability to make voice calls (speaker / audio jack)

tablet z 3g przemysłowy

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… do góry menu… menu



Minimalism and comfort

tablet z hdmi lan mobipad t1

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPad problem disappears forever, as it weighs only 750 and its dimensions (24 x 17.8 x 20cm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.


 Dimensions  244mm x 168mm x 16mm
 Weight 811g





tablet mobipad t1 rozmiary

go top… do góry menu… menu




more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP67
Humidity: 5% - 95% non-condensing
Waterproof: IP67
Weight:
Temperature: Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP67
1D barcode scanner (reader): -----
2D barcode scanner (reader): -----
RFID scanner (reader): RFID LF (125kHz)
EM/TK 4100/4200
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: No
Dispaly: 7.85” (1024x768) IPS/AFFS | Toughened Glass | 5-points | multi-touch
Brightness: 400nits
Contrast: 800:1
Touch screen: Tak
Graphics card: Mali - 400MP
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: MTK8382 Quad Core (4x - 1.3GHz)
Chipset: -----
BIOS: -----
Memory: 1GB LPDDR2
Hard Drive: 16GB EMCP
Flash Memory:
Battery: Li-Ion 15000mA
Working time on battery: Operating time (depending on usage) - 19h
Standby time - 1128h
HotSwap battery: No
Fast battery replacement ability: No
Size: 244mm x 168mm x 16mm
811g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.2.2
LAN: Yes - via an adapter (OTG-> RJ45)
WLAN: IEEE 802.11b/g/n
Bluetooth: Bluetooth 3.0
WAN: GSM/GPRS/EDGE: 850/900/1800/1900MHz
WCDMA/HSDPA/HSUPA: 850/1900/2100MHz
GPS: Standard
Flash Card Reader: micro SD/TF max. 32GB
CD/DVD: -----
Camera: FRONT: 2MPX
REAR: 13MPX (Auto Focus+ Flash)
Audio: Built-in Microphone | 2x - Speakers | Receiver | Audio Jack
Seciurity: IP67
In/Out: MicroUSB (OTG) | Port MicroSD | Port SIM | Audio Jack | micro HDMI
Keyboard: Ekranowa + Przyciski fizyczne
Home | Menu | Return | ON/OFF | Volume | Reset
Additional Navigation Devices : -----
Color: orange-black
Optional accessories: Case, Car Charger, Wrist Strap, micro USB (RJ45)
Other: Accelerometer | G-Sensor | Light Sensor | Proximity Sensor


CURRENT PRICE
2065.61 € Net
2540.70€ Gross
