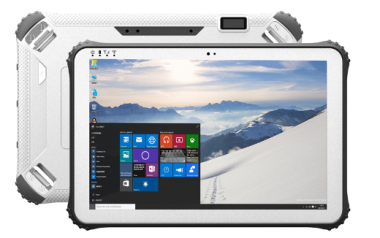

MobiPad MP22 is a new proposal 12.2 - inch tablet works with Windows 10. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.

MobiPad MP22 is offered with the latest quad-core Intel® Atom ™ processor Z8300 to ensure the highest performance, low power consumption and long battery life. The tablet works with Windows 10 operating system to meet the growing requirements in industrial applications.

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

	v.1	v.1.1	v.1.2	v.2	v.3	v.3.1	v.3.2	v.4	v.4.1	v.4.2
64GB			-				-			-
128GB	-	-		-	-	-		-	-
3G
4G	-	-	-	-	-	-	-	-	-	-
GPS
NFC	-	-	-		-	-	-	-	-	-
Intel Z8300
Intel 5Y30	-	-	-	-	-	-	-	-	-	-
1D (CCD)	-	-	-	-				-	-	-
2D (CMOS)	-	-	-	-	-	-	-
Sunlight Readable	-			-	-			-

go top... menu…

	v.5	v.6	v.7	v.7.1	v.7.2	v.7.3	v.8	v.8.1	v.8.2	v.8.3
64GB					-	-			-	-
128GB	-	-	-	-			-	-
3G				-	-	-	-	-	-	-
4G	-	-	-
GPS
NFC
Intel Z8300						-				-
Intel 5Y30	-	-	-	-	-		-	-	-
1D (CCD)	-						-	-	-	-
2D (CMOS)		-	-	-	-	-
Sunlight Readable	-	-	-				-	-

go top... menu…

The collection and processing of data

Barcode Scanner

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading MobiPad device and MMP quickly and accurately retrieves the data, which helps to increase the rate and efficiency.

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

Serial ports

go top... menu…

Resistance and strength

Standards

In terms of device ruggedness, the MP22 can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -20° to 60°C, optimized for most industrial deployments. MP22 is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

MIL-STD 810G

Durability is one of the most important factors to consider when choosing mobile solutions, which is why MobiPad ensures that its fully rugged units operate even when dropped onto concrete, or used in harsh environmental conditions such as heat and cold, dust and rain. Rigorous tests that pass MobiPad products ensures that our customers receive products that meet the highest standards of durability and reliability. MobiPad ensures compliance with the most rigorous standards in this area - MIL-STD 810G according to test its products. This standard, set by the US military, is the most widely used international standard.

The battery at its best

High quality Li-Polymer battery provides a long operating life under severe temperature conditions. With MobiPad MP22 you can easily work out at temperatures as low as -20 ° C.

go top... menu…

IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

Complete protectionm against contact, protection from infiltration of dust.

6 5

Protection from water projected from a nozzle.

go top... menu…

Modules and Wireless Networks

Thanks 3G(4G as option) module, user can connect with Internet by insert SIM card in right place.

go top... menu…

Functionality

Real-time data access to the right information is very important to mobile users. MP22 offers 3G, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

Additional equipment

Docking Station

The docking station (optional) enables simultaneous battery charging device and the battery itself. When you dock your device will be extended to additional ports located directly at the station.

Wrist Strap

Working comfort with the device can help you by buying durable stand (optional). It provides a stable position or facilitate safe movement on the tablet.

go top... menu…

specification of this version is available in the "Technical data" ...

*all accesories are not included with device...

*license of Windows 10 it's not included in price...
