Taiwanese company i-Mobile has an excellent reputation Achieved as a manufacturer of industrial mobile computers. Due to the high position of products in the segment of high-tech, have won many awards in tests Conducted around the world.
|
|

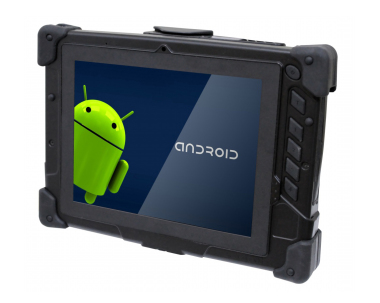

i-Mobile IQ-8 is unrivaled in the market, ultra-modern, armored tablet meets the very stringent industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where require high performance, flexibility and strength equipment.
.jpg) |
Warranty
Devices i-Mobile's standard with 1 year warranty, OPTIONALLY you can change the warranty period for 2 years. Any minor repairs are Carried out on the site in Poland. Defects requiring intervention in the components end up in haste to the main website i-Mobile Technology in Taiwan.
|
|
Advanced display technology |
.jpg) |
|
The display of the image corresponds to the 8-inch full touch screen (1024 x 768 XGA) LED-backlit display with Sunlight Readable Technology (700nit), Which uses reflected light beam as a light sensor - the bigger the better backlight illumination sensor. The Resulting display bright and is easy to read even in direct sunlight encounters.
|
.jpg) |
.jpg) |
With the hot-swap There is a possibility to connect an additional battery quickly without shutting down the operating system. Additional optional battery extends the life of half a standard battery.
|
|
|
Functionality |
Barcode Scanner |
.jpg)
Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading-Mobile device and IQ-8 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.
|
RFID |
||||||||||||
.jpg) RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products.
Magnetic Card Reader |
.jpg) Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. |
|
Tablet IQ-8 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
.jpg)
Magnetic card reader writes to all 3 tracks magnetic, so you can use it for all major card types (such as credit, debit, staff and membership cards, loyalty card systems, etc.)
Smart Card ReaderThe smart card reader Enables the secure electronic transactions through the use of digital signatures and certificates to enhance secure transactions through public and private networks. With easy access to the smart card reader you can use it in many different ways, Regardless of Whether you use it for authentication, data retrieval and verification of Their correctness, or is it the use of embedded applications. Smart cards are typically used by the departments of information technology (IT) in large Organizations.
Modules and Wireless Networks.jpg)
|
||||||||||||||||||||||||||
Application |
||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Safety |
IP65
IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust. The second digit is a degree of protection against water. |
||||||||||||||||||
|
||||||||||||||||||
Connectors |
|
In the back of the tablet and stylus located conveniently find That will help us to use the IQ-8 with greater precision. Neatly hidden internal antenna GPS will find Their Way in every area, and the battery indicator will Contribute to the accurate assessment of a possible operation on a removable battery. Located in the upper right corner of 5M CMOS camera with built-in LED flash Allows you to take photos in excellent quality.
That Facilitate the use of the device the user can define tasks for the selected keys were located in the right side of the tablet (Hotkey).
2D barcode reader and MSR card reader is located in the upper part of the tablet industry I - MOBILE IQ-8, in order to Provide convenience in daily use in any position. The lower part was reserved for the dock connector through Which the tablet can benefit from its functionality.
In the absence of wireless I-MOBILE gives us the ability to connect to the network the traditional way. All inputs are hidden under the rubber gasket to the ensure the Highest standard of immunity.
Select a version for yourselfHardware configurations available
RFID UHF
more photos in the "Photo Gallery" ... specification of this version is available in the "Technical data" ... |
| Durability: | ------ |
| Humidity: | Yes - 0% ~ 95% |
| Waterproof: | Yes - (IPx5) IEC 60529 14.1/14.2.5 (2.1 2001-2) |
| Weight: | |
| Temperature: | Operating: -10° –– +50°C ; Storage: -20°C –– +70°C |
| Shock: | ------ |
| Vibration: | 5 Hz to 500Hz 2g/5g rms 20Hz to 2000 Hz 7.69g rms |
| Drop: | 1.2 meters |
| Sand and dust: | Yes - (IP6x) IEC 60529 13.4 (2.1 2001-2) |
| 1D barcode scanner (reader): | Yes - MOTOROLA SE4500 (1D/2D - IMAGER) All major codes |
| 2D barcode scanner (reader): | Yes - MOTOROLA SE4500 (1D/2D - IMAGER) PDF417 | MicroPDF417 | Composite RSS | TLC-39 | Datamatrix | QR Code | Micro QR Code | Aztec | MaxiCode Postal Codes: US PostNet | US Planet | UK Postal | Australian Postal | Japan Postal | Dutch Postal (KIX) |
| RFID scanner (reader): | RFID HF 13.56MHz Mifare DESFire Reader | ISO 15693 Reading distance: 30mm ~ 50mm depending on tag typesRFID UHF (High Power) 860-980Mhz Reading distance: up to 4m |
| Magnetic card reader (MSR): | none (available in other configurations) |
| Microchip card reader: | none (available in other configurations) |
| Docking station connector: | Yes - 1 x 16 pin docking connector |
| VESA standard – holders and mounts support: | Yes - using i-Mobile (VESA) |
| COM port: | Yes - RS232 (DB9 full function connector) |
| Dispaly: | TFT LCD 8" (1024 x 768 XGA) Sunlight Readable |
| Brightness: | 700nits Sunlight Readable |
| Contrast: | 1000:1 |
| Touch screen: | Yes - capacitive |
| Graphics card: | Andreno 225 |
| Swivel Hinge: | ------ |
| VGA out: | ------ |
| TV Out: | No |
| TV Tuner: | ------ |
| Processor: | Qualcomm® Snapdragon™ S4 Plus APQ8060A (2x - 1.5GHz) |
| Chipset: | ------ |
| BIOS: | ------ |
| Memory: | 1GB LPDDR2 |
| Hard Drive: | 8GB eMMC |
| Flash Memory: | |
| Battery: | Internal Battery 3.7V / 920mah External 3S1P 11.1V 3100mAh (optional) - External 3S1P 11.1V 6200mAh |
| Working time on battery: | 600 minutes (10h) |
| HotSwap battery: | Yes |
| Fast battery replacement ability: | Yes |
| Size: | 251 x 181 x 30 (mm) (10.04" x 7.24" x 1.54") 1.3kg with battery |
| Casing material: | |
| Fanless casing: | Yes |
| Operating System: | Android 4.3 |
| LAN: | Yes - 1 x 10/100 Ethernet |
| WLAN: | IEEE 802.11 a/b/g/n |
| Bluetooth: | Bluetooth 4.0 |
| WAN: | GSM/GPRS (850/900/1800/1900MHz) WCDMA (850/900/1900/2100MHz) |
| GPS: | Built-in - Qualcomm® Snapdragon™ S4 Plus APQ8060A GPS/A-GPS 1575.42MHz |
| Flash Card Reader: | Micro Secure Digital (SD) - (max.32GB) |
| CD/DVD: | ------ |
| Camera: | Rear (5MPX) |
| Audio: | Built-in speaker and microphone |
| Seciurity: | IP65 | CE | FCC |
| In/Out: | 1 x USB 2.0 Type A 1 x microUSB (OTG) 1 x DC Power input 1 x RS232 1 x Micro Secure Digital (SD) card slot 1 x 16 pin docking connector 1 x 10/100 Ethernet 1 x SIM socket (3G only) |
| Keyboard: | On-Screen |
| Additional Navigation Devices : | Yes - Function keys 1 x Power on/off button 1 x Barcode Scanner trigger button 1 x User Define 1 x User Define |
| Color: | Black |
| Optional accessories: | Hand Strap Additional external battery 6200mAh Vehicle & Wall mount VESA Docking station Vehicle charger 12V Vehicle charger 12V-36V Station battery charger |
| Other: | Factory accessories: Capacitive stylus Shoulder strapSensors: Light sensor E-Compass Żyroskop Gyroscope AltimeterIndicators: Power Charging Operation status |
CURRENT PRICE |
|
| 5820.75 € | Net |
| 7159.52€ | Gross |
