Taiwanese company i-Mobile has an excellent reputation Achieved as a manufacturer of industrial mobile computers. Due to the high position of products in the segment of high-tech, have won many awards in tests Conducted around the world. |
|

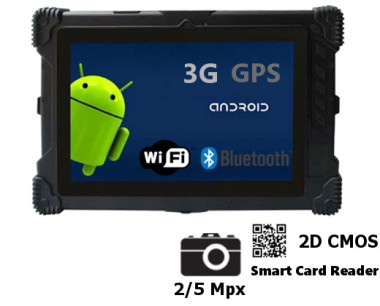

i-Mobile IMT-10 PLUS is unrivaled in the market, ultra-modern, armored tablet meets the very stringent industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where require high performance, flexibility and strength equipment.
 |
Warranty
Devices i-Mobile's standard with 1 year warranty, OPTIONALLY you can change the warranty period for 2 years. Any minor repairs are Carried out on the site in Poland. Defects requiring intervention in the components end up in haste to the main website i-Mobile Technology in Taiwan.
|
|
The high performance processor |
|
|
MediaTek MT8382 |
|
|
The processor MT8382 is one of the fastest processors dedicated for tablets, nettops and netbooks. Thanks using quad core processor IMT-10 Plus its one of the best Industrial Rugged Tablet. Fast processor makes possible to smoothly work in any case.
Super fast eMMC memory
Use your eMMC 8GB (max - 16GB) on which you can install the system and frequently used applications. This approach leads to a super-fast operation of your computer.
Advanced display technology |
|
 |
|
The display of the image corresponds to the 10.1-inch full touch screen (1280 x 800 XGA) LED-backlit display with Sunlight Readable Technology (350nit), Which uses reflected light beam as a light sensor - the bigger the better backlight illumination sensor. The Resulting display bright and is easy to read even in direct sunlight encounters.
|
 |
 |
With the Hot-Swap there is a possibility to connect an additional battery quickly without shutting down the operating system. Additional optional battery extends the life of half a standard battery.
|
|
Tablet IMT-10 PLUS is equipped with 3G and 50-channel GPS(optional) armored performed. This small komputerek is made of very durable materials. It is well protected against falls, shocks or vibrations. He also is harmless water (IP65) or Low Temperatures. Equipped with fast DDRII RAM and eMMC memory.
|
Functionality |
Barcode Scanner |
 Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and wide range of reading-Mobile device and IMT-10 PLUS quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.
|
RFID HF (13.56MHz) |
||||||||||
RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading the details of the special tags are attached That is the object (but not only, because RFID is also applicable to the identification of the animals, and even humans) is by radio. Depending on the type of tag changes the amount of information Which can hold as well as the maximum distance from Which to read data. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
RFID UHF (860-960Mhz)In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO). The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6C). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.
Magnetic Card Reader |
Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications.
|
|
Tablet IMT-10 PLUS is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
Magnetic card reader writes to all 3 tracks magnetic, so you can use it for all major card types (such as credit, debit, staff and membership cards, loyalty card systems, etc.)
Smart Card ReaderThe smart card reader Enables the secure electronic transactions through the use of digital signatures and certificates to enhance secure transactions through public and private networks. With easy access to the smart card reader you can use it in many different ways, Regardless of Whether you use it for authentication, data retrieval and verification of Their correctness, or is it the use of embedded applications. Smart cards are typically used by the departments of information technology (IT) in large Organizations. This internal device for reading and writing smart cards is reliable and easy to use, and Provides That support for applications require high-speed data from a smart card to the computer. The unit Complies with all major standards for use in companies, making it the perfect alternative to external devices That read and write smart cards.
|
||||||||||||||||||||||||
Use of a device |
||||||||||||||||||||||||
|
||||||||||||||||||||||||
Protection Standards |
|
High Temperature: MIL-STD 810G Method 501.5
This test procedure determines a computer’s operating performance during exposure to high temperature conditions. The operational test differs from the storage test in that the computer is evaluated while conditioned to elevated temperatures determined to be applicable to, or resulting from, exposure in its operational configuration.
Low Temperature: MIL-STD 810G Method 502.5
This test determines the performance of the computer during exposure to low temperature conditions. The operational test differs from the storage test in that the computer is evaluated under cold conditions determined to be applicable to, or resulting from, exposure in its operational configuration.
Temperature Shock: MIL-STD 810G Method 503.5
Temperature shock tests determine if an item can withstand sudden changes in the temperature of the surrounding atmosphere without experiencing physical damage or deterioration in performance.
The two objectives of the temperature shock test are set to determine whether the test item can still a) be safely operated, and b) satisfy its performance requirements, after being exposed to sudden changes in temperature of the surrounding atmosphere.
Rain: MIL-STD 810G Method 506.5
Rain Resistance tests are performed to determine the resistance to rain and wind-driven rain.
Vibration: MIL-STD 810G Method 514.6
Drop: MIL-STD 810G Method 516.6
Free fall drop tests (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks or transient vibrations encountered during handling, transportation, and normal service. The standard requires 26 drops from 1.2 m (4 ft) onto plywood, using up to 5 units.
Resistance IP65
IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust. The second digit is a degree of protection against water.
|
||||||||||||||||||
|
||||||||||||||||||
Connectors |
|
I-Mobile IMT-10 PLUS is an industrial tablet That Will Satisfy every user. Experience the diverse requirements The The of the customers and extensive cooperation with the Taiwanese manufacturer has created a unique device the Polish and global markets. In the back of the tablet and stylus located conveniently find That will help us to use the IMT-10 PLUS with greater precision. Neatly hidden internal antenna GPS will find Their Way in every area, and the battery indicator will Contribute to the accurate assessment of a possible operation on a removable battery. Located in the upper right corner of 5M CMOS camera with built-in LED flash allows you to take photos in excellent quality.
1D/2D barcode reader and MSR card reader is located in the upper part of the tablet industry I-MOBILE IMT-10 PLUS, in order to Provide convenience in daily use in any position. The lower part was reserved for the dock connector through Which the tablet can benefit from its functionality.
In the absence of wireless I-MOBILE gives us the ability to connect to the network the traditional way. All inputs are hidden under the rubber gasket to the ensure the Highest standard of immunity.
Select a versionSelect a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ... |
menu…  |
| Durability: | MIL-STD 810G |
| Humidity: | 0% ~ 95% |
| Waterproof: | (IPx5) IEC 60529 14.1/14.2.5 test Edition 2.1 2001-2 |
| Weight: | |
| Temperature: | Operating: -10° –– +50°C Storage: -20°C –– +70°C |
| Shock: | MIL-STD-810G |
| Vibration: | MIL-STD-810G-514.6,E-2 Sine | MIL-STD-810G-514.6,E-1 Random |
| Drop: | Drop up to 1.2m |
| Sand and dust: | (IP(IP6x) IEC 60529 13.4 test Edition 2.1 2001-265) IEC 60529 / AC2:2007 |
| 1D barcode scanner (reader): | ----- |
| 2D barcode scanner (reader): | Scanner 1D/2D Honeywell N3680 |
| RFID scanner (reader): | ----- |
| Magnetic card reader (MSR): | ----- |
| Microchip card reader: | Yes - EMV 4.0 Level I Based on ISO7816 implemantation Support PC/SC 2.0 Smart Card Industry Standard |
| Docking station connector: | 1 x 16 pin docking connector |
| VESA standard – holders and mounts support: | Yes |
| COM port: | Yes - RS232 |
| Dispaly: | TFT LCD 10.1" 1280x800 (XGA) LED Sunlight Readable |
| Brightness: | 350 nits Sunlight Readable |
| Contrast: | 800:1 |
| Touch screen: | Yes - capacitvie |
| Graphics card: | Integrated |
| Swivel Hinge: | ----- |
| VGA out: | ----- |
| TV Out: | ----- |
| TV Tuner: | ----- |
| Processor: | MediaTek MT8382 QuadCore (4 x 1.3GHz) |
| Chipset: | ----- |
| BIOS: | ----- |
| Memory: | 2GB LPDDRII |
| Hard Drive: | 16GB eMMC |
| Flash Memory: | Yes |
| Battery: | 2 external batteries 3S1P,3 Cell, DC 10.8V/3400mAh Support Hot-swap |
| Working time on battery: | 480 minutes (8h) - depense of using |
| HotSwap battery: | Yes |
| Fast battery replacement ability: | Yes |
| Size: | 306 x 207 x 40mm - 1.6Kg with batteries |
| Casing material: | PC/ABS |
| Fanless casing: | Yes |
| Operating System: | Android 4.4 |
| LAN: | Yes - 10/100 Ethernet Support POE (Power-Over-Ethernet applications up to 25.5W) |
| WLAN: | WLAN 802.11 b/g/n |
| Bluetooth: | Bluetooth 4.0 |
| WAN: | 3G: WCDMA 900/2100MHZ / HSPA 7.2/5.76Mbps, 3GPP R6/GSM/GPRS/EDGE: 850/900/1800/1900 MHZ |
| GPS: | MediaTek MT6627 |
| Flash Card Reader: | Yes - MicroSD |
| CD/DVD: | ----- |
| Camera: | FRONT: 2Mpx REAR: 5Mpx |
| Audio: | Built-in speaker and microphone |
| Seciurity: | ----- |
| In/Out: | 1 x USB 2.0 Typu A(host) 1 x Micro USB 1 x DC Power input 1 x RS232 1 x Port Micro Secure Digital (SD) 1 x 16 pin docking connectors 1 x 10/100 Ethernet 1 x SIM(Only 3G) |
| Keyboard: | No - Function keys |
| Additional Navigation Devices : | Yes - Function keys |
| Color: | Black |
| Optional accessories: | Docking station: 4 x USB, 1 x RS-232, 1 x RJ45, 1 x DC in, 1 x Earphone, 1 x Microphone, Battery charging bay Vehicle & Wall mount: Standard VESA & DC in Vehicle adapter12V~36V Stylus |
| Other: | Stylus , Shoulder strap , Hand strap |
CURRENT PRICE |
|
| 4431.50 € | Net |
| 5450.75€ | Gross |
