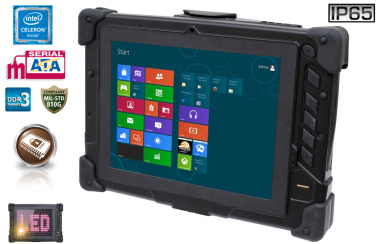

Industrial Tablet i-Mobile High IB-8 v.18.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-i-mobile-ib-8-high-v.18.1-produkt-91786.html

Industrial Tablet i-Mobile High IB-8 v.18.1

industrial pc panel ib8 imobile mobilator new portable device poland intel ip65 full protection



imobile wytrzymaly ap-10 sprzet panel pc 2019 new portable device

Taiwanese company i-Mobile has an excellent reputation Achieved as a manufacturer of industrial mobile computers. Due to the high position of products in the segment of high-tech, have won many awards in tests Conducted around the world.


Description

i-Mobile IB - 8 is unrivaled in the market, ultra-modern, armored tablet meets the very stringent industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where require high performance, flexibility and strength equipment.
poland intel ip65 full protection industrial pc panel ib8 imobile mobilator new portable device

The high performance processor

Intel® Celeron® N2930
(2M Cache, 4x1.83 GHz)
umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemys³u, i-mobile
The Intel Celeron N2930 is a power efficient quad-core SoC for entry-level notebooks. It is clocked at 1.83 - 2.16 GHz and part of the Bay Trail-M platform. Thanks to the specially optimized 22 nanometer low-power process (P1271) with tri-gate transistors, performance and energy efficiency have been significantly improved compared to previous Intel Atom CPUs. The N2930 supports Quick Sync as well as Wireless Display.

Super fast mSATA SSD drive

Use your mSATA SSD 128GB (max - 256GB) on which you can install the system and frequently used applications. This approach leads to a super-fast operation of your computer. The speed of operations carried out applications installed on the mSATA drives can be increased up to 50%.

Advanced display technology
poland intel ip65 full protection industrial pc fanless panel with full ip65 protection
The display of the image corresponds to the 8-inch full touch screen (1024 x 768 XGA) LED-backlit display with Sunlight Readable Technology (500nit), Which uses reflected light beam as a light sensor - the bigger the better backlight illumination sensor. The Resulting display bright and is easy to read even in direct sunlight encounters.
sunlightreadable-imobile-ib-8-8cali
hot-swap-imobile-tablet-przemys³owy-ip65
With the hot-swap There is a possibility to connect an additional battery quickly without shutting down the operating system. Additional optional battery extends the life of half a standard battery.

GPS-tablet-przemyslowy-odporno¶æ-bezpieczeñstwoIB-8 is equipped with a tablet (optional) on 4G and 50-channel GPS armored performed. This small komputerek is made ​​of very durable materials. It is well protected against falls, shocks or vibrations. He also is harmless water (IP65) or Low Temperatures. Equipped with fast DDRII RAM expandable to 4GB and SSD.



go top... do góry menu… menu

Functionality

Barcode Scanner
czytnik-kodow-kreskowych imobile ic8Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading-Mobile device and IB-8 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.

Barcode Scanner 1D/2D (UART)

1D symbologies: EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code39, Code 128, UCC/EAN 128, ISBN, ISBT, Interlaeved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post)
2D Data Matrix, PDF417, Micro PDF 417, Codablock Maxicode, QR, Aztec GS1 composite codes
Scan Rate 2D mode: 56/images/auto adaptive
Scan Angle
 38.9" (Horizontal) 25.4" (Vertical)
Optical Resolution
 752 (H) x 480 (V) pixel, 256 gray levels
Contrast down to 25%
 Version Standard range and high density

RFID
RFID imobile ib-8 tablet przemys³owy

RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading the details of the special tags are attached That is the object (but not only, because RFID is also applicable to the identification of the animals, and even humans) is by radio. Depending on the type of tag changes the amount of information Which can hold as well as the maximum distance from Which to read data. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

  LF HF UHF
Frequency 124 kHz, 125 kHZ lub 135 kHz 13,56 Mhz 865-928 Mhz
 Reading range a few centimeters 0.5 meters 2-10 meters
 RFID HF
  13.56 MHz Mifare DESFire Reader / ISO 15693 Reader
Reading Distance
  30mm ~ 50mm depending on tag types

RFID UHF (860-960Mhz)

In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO).  The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.

RFID UHF
(Low Power)		 RFID UHF
(High Power)
UHF ISO180006C (EPC C1 GEN2) / ISO 180006B - (15cm) UHF ISO180006C (EPC C1 GEN2) / ISO 180006B - (4m)

Magnetic Card Reader
czytnik kart magnetycznych imobile ib-8Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption.
Tablet IB-8 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
MSR card reader full ip65 mobilator poland industrial pc panel

Magnetic card reader writes to all 3 tracks magnetic, so you can use it for all major card types (such as credit, debit, staff and membership cards, loyalty card systems, etc.)

 MSR  USB Interface
 Formats  ISO 7811, AMMYA, oraz inne formaty F2F
 Rate  7 to 150cm per secod, bi-directional
 Vitality  1,000,000 cycles minimum

Smart Card Reader

The smart card reader Enables the secure electronic transactions through the use of digital signatures and certificates to enhance secure transactions through public and private networks. With easy access to the smart card reader you can use it in many different ways, Regardless of Whether you use it for authentication, data retrieval and verification of Their correctness, or is it the use of embedded applications. Smart cards are typically used by the departments of information technology (IT) in large Organizations. This internal device for reading and writing smart cards is reliable and easy to use, and Provides That support for applications require high-speed data from a smart card to the computer. The unit Complies with all major standards for use in companies, making it the perfect alternative to external devices That read and write smart cards.

 Obs³uga  ISO7816 microprocessor or memory card
 Transfer  9600 to 115200 bps
 Vitality  1,000,000 cycles minimum

go top... do góry menu… menu

Modules and Wireless Networks

Bluetooth 3.0 GPS WCDMA 4G industrial panel pc mobilator new portable device
 WIFI  WLAN 802.11 b/g/n
 Bluetooth  Bluetooth 3.0
 4G  WCDMA/HSDPA/HSUPA/GSM/GPRS/CDMA 1xEV-DO/CDMA1X/EDGE/LTE
 WCDMA R99
  maximum data rate of 384 kbps
 HSDPA  Downlink Category 8 (7.2 Mbps) or 10 (14.4 Mbps)
 HSUPA  E-DCH data rates of up to 5.76 Mbps for 2 ms TTI (UE category 6) uplink
 GSM R99
  Supports CS SMS
 GPRS  CS schemes - CS1, CS2, CS3 and CS4
 CDMA 1xEV-DO
  High-speed peak data rates of 3.1 Bmps on the downlink and 1.8 Mbps on the uplink
 CDMA1X
  Supports up to 153.6 kbps data throuhput on both forward and reverse links
 EDGE  Downlink coding schemes - CS 1-4, MCS 1-9
 GPS  High performance positioning engine. Support 50 channels

 GPS L1 Frequency , C/A Code. SBAS: WAAS/EGNOS/MSAS

Security

Fingerprint

Fingerprint security feature makes our Tablet Becomes even more personal, Allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to Effectively protect your data.

finger print mobilator poland ib 8 imobile new industrial pc panel fanless full ip65

TPM (Trusted Platform Module)

bezpieczenstwo trusted platform module bankowo¶æ tablet przemys³owy imobile ib-8A TPM is a microchip designed to provide basic security-related functions, primarily involving encryption keys. The TPM is usually installed on the motherboard of a computer or laptop, and communicates with the rest of the system using a hardware bus. Computers that incorporate a TPM can also create a key that has not only been wrapped, but also tied to certain platform measurements. This type of key can only be unwrapped when those platform measurements have the same values that they had when the key was created. This process is called "sealing" the key to the TPM. Decrypting it is called "unsealing".bitlocker TPM imobile ib-8 tablet przemys³owy

go top... do góry menu… menu

Use of a device


umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemys³u, i-mobile

Product of i-Mobile is directed to audiences Primarily as emergency services, industry, surveying, telecommunications, airlines, industrial equipment maintenance, repair and service, logistics, construction, industry, domestic, automotive. Also in energy and water supply, and wherever the engineers and operators need to read or monitor the parameters of the devices, Which are Often in a humid environment.

Operating temperature: -10 ° C ~ 50 °C

Operating Humidity: 0% ~ 95%

umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemys³u, i-mobile

go top... do góry menu… menu

Protection Standards


High Temperature: MIL-STD 810G Method 501.5
umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemys³u, i-mobile
This test procedure determines a computer’s operating performance during exposure to high temperature conditions. The operational test differs from the storage test in that the computer is evaluated while conditioned to elevated temperatures determined to be applicable to, or resulting from, exposure in its operational configuration.



Low Temperature: MIL-STD 810G Method 502.5
This test determines the performance of the computer during exposure to low temperature conditions. The operational test differs from the storage test in that the computer is evaluated under cold conditions determined to be applicable to, or resulting from, exposure in its operational configuration.
Temperature Shock: MIL-STD 810G Method 503.5
Temperature shock tests determine if an item can withstand sudden changes in the temperature of the surrounding atmosphere without experiencing physical damage or deterioration in performance.
The two objectives of the temperature shock test are set to determine whether the test item can still a) be safely operated, and b) satisfy its performance requirements, after being exposed to sudden changes in temperature of the surrounding atmosphere.
Rain: MIL-STD 810G Method 506.5
Rain Resistance tests are performed to determine the resistance to rain and wind-driven rain.
Drop: MIL-STD 810G Method 516.6
Free fall drop tests (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks or transient vibrations encountered during handling, transportation, and normal service. The standard requires 26 drops from 1.2 m (4 ft) onto plywood, using up to 5 units.

Standards
 Operating temperature
 -10°C to +50°C
<0.5°C / min ; 24h cycle x 3 cycles		 MIL-STD-810G
Methods 501.5; 502.5 (Operating)
 Storage Temperature 20°C -- +70°C
<0.5°C / min ; 24h cycle x 3 cycles		 MIL-STD-810G
Methods 501.5; 502.5 (Non-operating)
 Relative Humidity 95% @ 40°C
3 x 24hr cycles		 MIL-STD-810G
Metoda 507.5
 Dust Protection IP6x (dust) IEC 60529 / AC2:2007
 Water Protection IPx5 (water) IEC 60529 / AC2:2007
 Vibration Fig 514.6E-1 & 514.6E-2 MIL-STD-810G-514.6
Procedure I Cat.24
(Non-operating)
 Drop Test  1.2 meters (47") drop, 2⇒plywood over concrete, each edge,face and corner; 26 drops total (@ ambient temp) MIL-STD-810G
Metoda 516.6
Procedure IV
 Regulatory CE / FCC CLASS B / FCC ID / EN 60950-1 2005

umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemys³u, i-mobile full ip65 industrial pc panel mobilator new portable devicego top... do góry menu… menu

Resistance IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.


The first digit [x]
Protection against solid objects		 Protection
Level		 The second digits [y]
Protection against liquids

No special protection

 No special protection
Protection from solid objects greater than 50mm in diameter Protection from dripping water
Protection from object not greater than 12mm in diamete Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter Protection from sprayed water
(tilted up to 60°)
Protection from object not greater than 1mm in diameter Protection from splashed water
Complete protection against contact, Protection against dust deposit Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust Protection against heavy seas, or powerful jets of water
  Protection against immersion
  Protection against complete, continuous submersion in water


Connectors

I-Mobile IB-8 is an industrial tablet that will meet the expectations of every demanding user. Experience with diverse customer requirements and extensive cooperation with the Taiwanese manufacturer has led to the creation of a unique device on the Polish and global market. In the back of the tablet we will find a handy stylus, which will help us use the IB-8 with greater precision. A neatly hidden internal GPS antenna will allow you to find your way in any terrain, and the battery charge indicator will contribute to an accurate assessment of the possible operation of the device on a replaceable battery. The 5M CMOS camera with a built-in flash diode located in the upper right corner allows you to take pictures in excellent quality.


imobile ib - 8 tablet przemys³owy GPS MMCX bateria kamera 5m mocny wzmocniony panel przemyslowy mobilator

To improve the use of the device, the user can define tasks for selected keys located on the right side of the tablet (Hotkey). Bearing in mind the full mobility and multi-tasking of the device, the tablet has been equipped with a front camera allowing video conferencing and a fingerprint reader (Fingerprint) guaranteeing full restriction of access to data for unauthorized persons.

do góry… do góry menu… menu


czytnik linii papilarnych tablet wideokonferencje barcode skaner mobilator wzmocniony tablet przemyslowy ip65

The 2D barcode reader and MSR card reader have been placed in the upper part of the industrial tablet in order to ensure comfort in everyday use in any position. The lower part has been reserved for the dock connector with which the tablet can gain its functionality.

czytnik kart magnetycznych MSR imobile tablet przemys³owy ib-8 mobilator polska wzmocniony tablet

port dukuj±ce komputery panelowe tablet przemys³owy ip65 imobile ib-8

In the absence of a wireless Internet network, I-MOBILE gives us the opportunity to connect to the network using a traditional method. All entrances are hidden under rubber gaskets to ensure the highest resistance standard. IB-8 provides digital signal transmission through the use of a miniHDMI connection, which is a big advantage, considering the size of the described equipment and the number of modules used.

mobilator polska wzmocniony tablet LAN czytnik kart inteligentynych MICRO SD HDMI tablet przemys³owy ib-8RS 232 tablet przemys³owy mobilator polska wzmocniony tablet imobile ib-8

Dostêpne konfiguracje sprzêtowe

Choose the version that suits your needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given below. At the customer's request, a configuration not available in the offer can be created. Detailed parameters are available in the "Technical Data" tab.


 64GB
 128GB
 256GB
 4GB RAM GPS
 4G Front
Cam
 Rare
Cam
 2D
Barcode
scanner
 MSR Smart Card RFID HF
 RFID UHF (LP)
 RFID UHF (HP)
 Add Battery + Car Adapter
v.1.1 - - - - - - - - - - - - -
v.2 - - - - - - - - - - - -
v.2.1 - - - - - - - - - - -
v.3 - - - - - - - - - - - -
v.3.1 - - - - - - - - - - - -
v.3.2 - - - - - - - - - - - -
v.3.3 - - - - - - - - - - -
v.3.4 - - - - - - - - - - -
v.4 - - - - - - - - - - - -
v.4.1 - - - - - - - - - - -
v.5 - - - - - - - - - - -
v.6 - - - - - - - - - - - -
v.6.1 - - - - - - - - - - -
v.6.2.1 - - - - - - - - - -
v.6.2.2 - - - - - - - - - -
v.6.3 - - - - - - - - - -
v.6.3.1 - - - - - - - - - -
v.6.3.2 - - - - - - - - - -
v.7 - - - - - - - - -
v.7.1 - - - - - - - -
v.8.0.1 - - - - - - - - -
v.8.1 - - - - - - - -
v.9 - - - - - - - - - -
v.10 - - - - - - - - -
v.11 - - - - - - - - -
v.12 - - - - - - - -
v.12.1 - - - - - - - -
v.13 - - - - -
v.15 - - - -
v.15.1 - - -
v.15.2 - - -
v.17 - - - - - - - - - - - -
v.18 - - - - - - - - - - -
v.18.1 - - - - - - - - - -
v.19 - - - - - - - - - - -
v.19.1 - - - - - - - - - - -
more photos in "Gallery"...

Specification of choosed versions is in "Technical data"...

Durability: MIL-STD 810G
Humidity: 0% ~ 95%
Waterproof: (IP65) IEC 60529 / AC2:2007
Weight:
Temperature: Operating: -10° –– +50°C
Storage: -20°C –– +70°C
Shock: MIL-STD-810G
Vibration: MIL-STD-810G-514.6 Procedure I Cat.24 (Non-operating)
Drop: MIL-STD-810G Method 516.6 Procedure IV
Sand and dust: (IP65) IEC 60529 / AC2:2007
1D barcode scanner (reader): -----
2D barcode scanner (reader): -----
RFID scanner (reader): RFID HF 13.56MHz Mifare DESFire Reader | ISO 15693
30mm ~ 50mm
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: 1 x 16 pin docking connector
VESA standard – holders and mounts support: Yes
COM port: Yes - RS232 (DB9 full function connector)
Dispaly: TFT LCD 8" (1024 x 768 XGA) LED Sunlight Readable
Brightness: 500 nits Sunlight Readable
Contrast: 1000:1
Touch screen: Yes - capacitvie
resisitive-capacitive (optional)
Graphics card: Integrated 400Mhz
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Intel® Atom Bay Trail-M Processor Quad Core N2930 1.86GHz
Chipset: -----
BIOS: Phoenix
Memory: 4GB DDR3 (DDR3 SO-DIMM)
Hard Drive: 128GB mSata SSD
Flash Memory: Yes
Battery: Internal Battery, one cell DC3.7V / 920mah
External 3S2P , 6 Cell, DC 11.1V/6200mAh Support Hot-swap
Working time on battery: 480 minutes (8h)
HotSwap battery: Yes
Fast battery replacement ability: Yes
Size: 251 x 181 x 30 (mm) (9.8" x 7.1" x 1.1") - 1.3kg (2.8lbs) with batteries
Casing material: High impact plastic with aluminum alloy skeleton
Fanless casing: Yes
Operating System: Yes (option) - Microsoft® Windows® Embedded 8 Standard / Windows® Embedded 8.1 Pro / Windows® Embedded 8.1 Industry Pro / Microsoft® Windows® Embedded 7 Standard / Windows® 7 Professional / Linux
LAN: Yes - 10/100 Ethernet Support POE (Power-Over-Ethernet applications up to 25.5W)
WLAN: WLAN 802.11 b/g/n
Bluetooth: Bluetooth 3.0
WAN: 4G: FDD_LTE / WCDMA / TDSCDMA / GSM/GPRS/EDGE - Class 12 / CDMA2000(EVDO) 800
GPS: -----
Flash Card Reader: Yes - MicroSD
CD/DVD: -----
Camera: -----
Audio: Built-in speaker and microphone
Seciurity: Yes - Fingerprint, TPM 1.2
In/Out: 2 x USB 2.0 Type A
1 x DC Power input (16V / 4A)
1 x DB-9 RS232 Full function connector
1 x Micro Secure Digital (SD)
1 x 16 pin docking connector
1 x 10/100 Ethernet , Support POE (Power-Over-Ethernet applications up to 25.5W)
1 x SIM
1 x Mini HDMI
Keyboard: Yes - On-screen Keyboard
Additional Navigation Devices : Yes - Function keys
Color: Black
Optional accessories: Docking station: 4 x USB, 1 x RS-232, 1 x VGA, 1 x RJ45, 1 x DC in, 1 x Earphone, 1 x Microphone, Battery charging bay
Vehicle & Wall mount: Standard VESA & DC in
12V vehicle adapter
12~36V vehicle adapter
Stylus
Other: Stylus , Shoulder strap , Hand strap


CURRENT PRICE
5427.68 € Net
6676.05€ Gross
