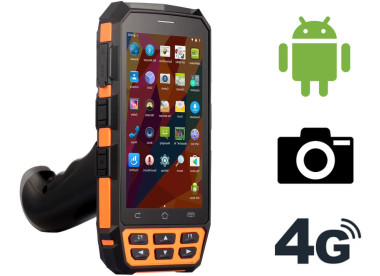

Industrial Data Collector MobiPad C51 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Specification

Processor	Cortex A53 1.3GHz Quad Core
RAM	2GB
Flash memory	16GB
Connectors	2x PSAM | SIM | MicroSD | Mini USB | Cradle connector
Display	5" (720 x 1280) Capacitive
Camera	Rear: 8Mpx + Autofocus + Flash
GPS	GPS + A-GPS
Audio	Built-in speaker and microphone
Battery	Li-ion Polymer, 3.7V, 8000mAh
Keyboard	On-Screen
Operating system	Android 7.0
Modules	Bluetooth | Wi-Fi | GPS/A-GPS | 2G/3G/4G
Readers (optional)	RFID HF | RFID LF | 1D Scanner (Honeywell) 2D Scanner (Honeywell)
Dimensions	170mm(H) x 85mm(W) x 23mm(D) ± 2mm
Weight	370g
Resistance	IP65

Check "Available versions" tab to see available configurations of this device. To get more information about this product click "Ask about the product" or use the Contact form.

MobiPad C51 is offered with the latest ARM Cortex A53 processor to ensure the highest performance, low power consumption and long battery life. The data collector works with Android 7.0 operating system to meet the growing requirements in industrial applications.

Select the version dedicated to yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

	1D Honeywel	2D Honeywell	RFID LF	RFID HF	RFID UHF
v.1	—	—	—	—	—
v.2	—	—	—	✔	—
v.3	—	—	✔	—	—
v.3.1	—	—	✔	✔	—
v.3.2	—	—	—	—	✔
v.4	✔	—	—	—	—
v.4.1	✔	—	—	—	—
v.5	—	✔	—	—	—
v.6	✔	—	—	✔	—
v.7	✔	—	✔	—	—
v.7.1	✔	—	—	—	✔
v.7.2	✔	—	✔	✔	—
v.7.3	✔	—	✔	—	✔
v.7.4	✔	—	—	✔	✔
v.8	—	✔	—	✔	—
v.9	—	✔	✔	—	—
v.9.1	—	✔	✔	✔	—

The collection and processing of data

back to top… menu…

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly

Radio-Frequency Identification (RFID)

RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

Type	RFID LF	RFID HF
Frequency	125KHz/134.2KHz(FDX-B/HDX)	13.56MHz
Potocol	ISO11784/5	ISO 14443A/15693
Read distance	2-10cm	2-8cm

Type	RFID UHF
Frequency	865~868MHz
Potocol	EPC C1 GEN2/ISO 18000-6C
Antenna	Circular antenna(3dBi)
Read distance	6-7m, tags and environment dependent

Resistance

back to top… menu…



Work temperature	-20℃ to 50℃
Storage temperature	-20℃ to 70℃
Humidity	5% - 95% (non-condensing)
Dust resistance	IPx6
Water resistance	IPx5
Drop resistance	1.5m



Resistance IP65

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No protection	0		0	No protection
Protection against any large surface of the body, such as the back of a hand	1		1	Protection against vertically dripping water
Protection from object > 12mm, e.g. Fingers or similar objects	2		2	Protection against vertically dripping water when device is tilted at an angle up to 15 degrees
Protection from object > 2.5mm, e.g tools, thick wires, etc.	3		3	Protection against direct sprays of water when device is tilted at an angle up to 60 degrees
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc.	4		4	Protection from sprays and splashing of water in all directions
Dust protected - Ingress of dust is almost entirely prevented.	5		5	Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction
Dust tight - No ingress of dust, complete protection against contact.	6		6	Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction
—	7		7	Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins
—	8		8	Protected from immersion in water with a depth of more than 1 meter

Modules and wireless networks

back to top… menu…

Real-time data access to the right information is very important to mobile users. MobiPad C51 offers 4G, GPS, WiFi 802.11 b/g/n and Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 8 Mega Pixels camera on rear side, users can instantly capture photos, videos or documents.

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the kolektor danych such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

Thanks to the WCDMA module, you only need to insert a SIM card in the slot and you are able to instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad C51 adjusts automatically to transfer and network coverage.

Wi-Fi	2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n
GPS	GPS + A-GPS
Bluetooth	Bluetooth v2.1 + EDR, Bluetooth v3.0 + HS, Bluetooth v4.0
WWAN	4G: TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20 3G: WCDMA(850/1900/2100MHz) 2G: GSM/GPRS/Edge (850/900/1800/1900MHz)
Phone calls	Yes

Application

back to top… menu…

Industrial data collector MobiPad C51 is specifically designed for use in harsh industrial environments, as well as on the outside. Resistant plastic housing protects the display from the outside against mechanical damage, drops of water, sand and dust. MobiPad C51 is the best solution in conditions where there is dust or moisture.

Data collectors in the form of tablets and smartphones, thanks to its functionality and the ability to install in them a number of modules have been used in almost all fields of industry and not only. Collectors equipped with barcode scanners and RFID are primarily used in warehouses where, thanks to them, time-consuming activities will no longer be a problem. In turn, NFC readers can be used in both the smaller and larger stores as a payment card reader, making the payment becomes fast and convenient as never before.

Minimalism and comfort

back to top… menu…

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, this problem disappears forever with MobiPad C51. The device weighs just 370g and its dimensions (170mm x 85mm x 23mm) allow you to take this device everywhere.

You can find more photos of this device in Gallery. Specification of the given version is available in the Technical data tab.
