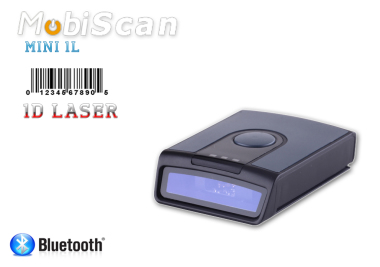

Barcode Scanner 1D Laser MobiScan Mini1L
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/skaner-kodow-1d-laser-mobiscan-mini1l-produkt-87192.html

Barcode Scanner 1D Laser MobiScan Mini1L

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The company's  MobiScan  new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan Mini 1L
Barcode Scanner
1D Laser
Working time
6 - 8 h
Support system
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux
Range 10 m
Communication Bluetooth
Dimensions 57.8 x 42.3 x 16.4mm
Weight
40g
Other Built-in memory, and offline store 10,000 15-bit character barcode

The detailed specification of the configuration available in the "Technical data"

go top… do góry menu… menu

Description



Unusual, modern, wireless (Bluetooth) mini barcode scanner MobiScan MS-Mini 1 is designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIMS-Mini 1 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing the information read from the barcode .

Barcode Scanner 1D Laser - MobiScan MS-Mini 1 through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIA new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work. The scanner has a set of handle by which we can easily przymocowoć to the device from which we use.

With built-in internal memory scanner can operate in trybyi (offline) and without konieczości connecting the device, remembers up to 10 000 thousand barcodes. Built-in battery support big amount of data scanned.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan MS-Mini 1 is equipped with a Li-Ion battery with 600mAh capacity Sufficient, Which Allows the scanner to operate for about 8 hours in scan mode or leave it on standby for 5days.




Continuous trigger scanning interval
Decoding number
Working time
1s
15500
4.3 h
5s
5500
7.7 h
10s
3590
10 h

go top do górymenu… menu

Communication

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIMini scanner has a built-in barcode reader, 1D Laser, which is connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI Designed to be tailored it different applications, wireless (Bluetooth) barcode scanner can be compatible with dry systems as Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.

MobiScan Hand Mini MS398 Bluetooth 2.0 MOBISCAN HAND MINI MS-398 IP64 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 10m from the computer.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The device uses the HID interface

To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed ​​USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our  introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .



MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI




Application

Standards and Tests

 Operating -10°  do 60°C
 Operating Humidity 5% ~ 90%
 Dust IP5x (Dust)
 Water IPx4 (Protection from splashed water)
 Drop ----

go top… do góry menu… menu

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Resistance IP54

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIDegrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.



go top… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water



Application

For MobiScan MS-Mini 1 manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
Pharmacy

For MobiScan MS-Mini 1 manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.

Trade

The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Magazine

Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.

Logistics and transport

Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



Specifications



MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIBarcode readers allow you to read and send data to a computer stored in the barcode. We offer the highest quality devices work flawlessly even in harsh industrial environments.MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

After scanning the coded data you can upload them to your computer or portable database. Mobile, quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes.

The bar code scanner can be connected to almost any device of computer technology - via the USB port.



MobiScan Mini 1L
Mechanical

Height: 16.4mm

Lenght: 57.8 mm

Witdh: 42.3 mm

Weight: 40g

Electrical
DC: 5V
Scan Performance

Sensor Type: 1D Laser

Light Source: Laser Diode 650nm

Scan Rate: 100 times / sec

Scan angle: : ±50°,±65°,±35°(skew, pitch, Roll)

Reflection: > 20%

Battery

Li-ion 600 mAh

Working time: to. 6 -8h

Standby time: to 5 day

Barcode Type

UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants
Communication

Bluetooth

Range: 10 m

Cable MicroUSB

Scan Range

(1 mil = 0.0254 mm)

4mil: 42- 75 mm

5 mil: 40-105 mm

10 mil: 10-250 mm

15 mil: 23-380 mm

20 mil: 35-490 mm

30 mil: 30-650 mm

55 mil: 75-900 mm

Housing color
Black / Silver
Accessories

User Manual, MicroUSB cable for charging, self-adhesive mounting bracket

Resistance IP 54
MobiScan MS-Mini 1 Bluetooth 3.0 MOBISCAN MINI1 Skaner 1D CCD Bezprzewodowy Bluetooth 3.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Supported Operating Systems: Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux
Internal memory: 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Operation Voltage: DC: 5V ± 5%
Reading indicator: 1D
Dimensions: 57.8 x 42.3 x 16.4mm
Weight: 40g
Battery: 600 mAh Li-ion
Housing material: Plastic
Scan rate: 100 skan/sek
Light source: Laser Diode 650nm
Resolution: -----
Communication distance: 10 m
Readable codes: UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants
Sensor: 1D Laser
Scan Angle: ±50°,±65°,±35°(skew, pitch, Roll)
Print Contrast Ratio: >20%
Scan range: (1 mil = 0.0254 mm) 4 mil: 42- 75 mm 5 mil: 40-105 mm 10 mil: 10-250 mm 15 mil: 23-380 mm 20 mil: 35-490 mm 30 mil: 30-650 mm 55 mil: 75-900 mm
Cable Type: Micro USB
Battery Life: 6-8 h
Communication: Bluetooth 3.0
Interface/ Prole: HID / SPP
Operating Temperature: -10°C ~ 60°C
Storage Temperature: -40°C ~ 70°C
Relative Humidity: 5 ~ 90%
Resistance IP: IP 54
Drop test: -----
Barcodes 1D: Barcodes 1D:
2 of 5 Chinese: No
2 of 5 Discrete: No
2 of 5 IATA: No
2 of 5 Industrial: Yes
2 of 5 Interleaved: Yes
2 of 5 Matrix: Yes
2 of 5 Standard: No
BC - 412: No
Bookland EAN: No
Codabar: No
Codabar - NW7: Yes
Code - 11: Yes
Code - 11(USD-8): Yes
Code - 32: No
Code - 39: Yes
Code - 39 Extended (full ASCII): Yes
Code - 39 Trioptic : Yes
Code - 93: Yes
Code - 128 (A, B, C): Yes
EAN-8: Yes
EAN-13: Yes
EAN -128 / UCC-128: Yes
GS1 DataBar: Yes
Intelligent Mail: No
ISBN: Yes
ISBT - 128: No
ISSN: Yes
ITF-6: No
ITF-14: No
KIX code: No
Matrix 25: No
MSI: Yes
MSI - Plessey: Yes
Pharmacode - One Track: No
Pharmacode - Two Track: No
Planet: No
Plessey: No
Post - Australian (4-State Postal Code): No
Post - China (4-State Postal Code): Yes
Post - Japanese (4-State Postal Code): No
Post - Singapore (4-State Postal Code): No
PostNET: No
Royal Mail (RM-4SCC): No
Telepen Code: No
UK/Plessey: Yes
UPC - A: Yes
UPC - E: Yes
UPC - E1: No
Barcodes 2D: Barcodes 2D:
Aztec: No
Composite code: No
DataMatrix: No
MaxiCode: No
Micro PDF 417: No
Micro QR Code : No
PDF 417: No
QR Code : No
RSS: No
TLC-39: No


CURRENT PRICE
508.70 € Net
625.70€ Gross
