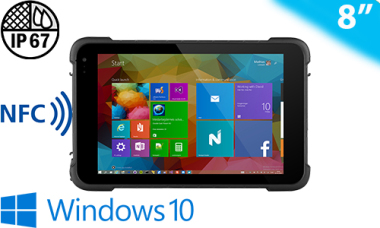

Emdoor I86H dustproof industrial tablet is a new 8 inch tablet that works with Windows 10 Home or Professional. The tablet has a specially designed, reinforced construction, adapted to work in harsh environmental conditions, such as in production halls where there is a lot of dust. The machine is ideally suited not only for typical industrial conditions but also for wide application in normal home environments.

The EMDOOR I86H industrial tablet is powered by the latest Intel® Atom™ Z8350/Z8300 quad-core processor, which delivers superior performance, low power consumption and long battery life. The processor makes the device run very smoothly and without problems it is done in everyday work. The tablet works with the Windows® 10 operating system to meet the growing demands of industrial and more.

Check the "Available Versions" tab for the version of your device. For additional information on the device, click on "Ask a product" or go to the contact form.

Choose a version that suits your needs

Choose the version that fits your needs and needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters listed below. Any additional configuration is valued at customer's request. Detailed parameters are available in the "Technical Data" tab.

[tab_wersja_id_15]

up… menu…

Barcode scanners and NFC reader

Barcode reader (optional)

A bar code reader enables you to read, decode and send data to a computer written in a bar code. With dynamic scanning capabilities and a large reading range, the data collector gets the data accurately, helping to increase speed and productivity. You can quickly launch the scanner because of the simplified installation procedure and intuitive, convenient construction of the scanner to work is very easy.

Model scanner	Motorola SE655	Motorola SE4710
Scanner type	1D	1D/2D
Type of matrix	CCD	CMOS

NFC

Near-field communication is a technology used to communicate between devices and to read information from special tags that are attached to items by radio. Depending on the type of tag, the amount of information that it can store as well as the maximum distance from which data can be read varies.

up… menu…

Resistance and strength

The standard of resistance, that is the strength of the tablet

EMDOOR I86H is designed for use in a variety of environments. Resistance to shocks, vibrations, falls and work over a wide temperature range makes the tablet able to be used in both industrial and military environments. IP67 is fully water and dust resistant. The enclosure can be cleaned with water to reduce the spread of infection. for medical use.

MIL-STD-810G

Robustness is one of the most important factors to consider when choosing a mobile solution, so EMDOOR ensures that its fully durable devices work even after falling to concrete or used in harsh environmental conditions such as heat and cold, dust and rain. The rigorous testing that passes the EMDOOR products ensures that our customers receive products that meet the highest standards of durability and reliability. EMDOOR guarantees compliance with the most stringent standard in the field - MIL-STD 810G according to which its products are tested. This standard, established by the US military, is the most widely used international standard.

MIL-STD 810G covers a wide range of tests used to measure equipment reliability:

Hight temperature: MIL-STD 810G Metoda 501.5
This procedure determines the computer performance test during exposure at high temperatures. This test differs from the standard tests in that the performance of the computer is judged under elevated ambient temperatures.

Low Temperature: MIL-STD 810G Metoda 502.5
This procedure determines the computer performance test during exposure at low temperatures. Such tests differ from standard tests in that the performance of the computer is judged under low ambient temperatures.

Temperature change: MIL-STD 810G Metoda 503.5
Testing for temperature changes is to determine if the computer components can withstand the sudden changes in the surrounding temperature and do not cause any damage or deterioration.

There are two objectives in this study: whether the tested object can still be safely operated and meets operational requirements when exposed to sudden changes in ambient temperature.

Rain: MIL-STD 810G Metoda 506.5
Rainfall testing is conducted to determine rain and wind resistance.

Drop: MIL-STD 810G Metoda 516.6
Free fall tests (shocks) are performed to ensure that the equipment is able to withstand relatively rare, non-repeated shocks and vibrations occurring during loading, transport and collisions.

The standard test requires 26 falls from 1.2 m (4 ft) per plywood.

Rugged battery ensures long-term operation

The high quality Lithium-Polymer battery provides a very long operating time under severe temperature conditions. With the EMDOOR I86H you can work outdoors at temperatures as low as -20 ° C and in temperatures up to 60 ° C.

up… menu…

Resistance - IP67

IP classes are the classification of the different degrees of protection of electrical equipment that are provided by the enclosures of these devices in accordance with PN-92 / E-08106. The number after the "IP" is actually two digits. The first means protection against the access of people and animals to dangerous parts and protection against pollution, such as dust. It is mainly about the access of foreign objects to the interior of the device. The second digit is the degree of protection against water.

Total dust protection.

6 7

Water can not penetrate device if it is immersed with consideration time and pressure conditions (up to 1m).

up… menu…

Modues and wireless networks

With the 3G module it is enough (4G LTE - optional) that the user inserts the SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and configure connections to mobile networks. In addition, the internal 3G module adapts automatically to the transfer and network coverage. Built-in speaker and microphone for voice calls.

up… menu…

Functionality

Access to real-time information is very important for mobile users. The EMDOOR I86H offers a number of modules (3G, 4G LTE, GPS, WiFi, Bluetooth) that allow users to connect in the way that best suits their needs. With a built-in rear 5 megapixel camera, users can take high quality pictures and videos. The I86H can also use a front 2-megapixel camera for video and video recording.

Optional accessories

The following table lists all the accessories that the manufacturer offers: I86H. Accessories are only available when ordering with the device.

Docking station	Windows 10 Pro with Bing*
Additional charger*	Stylus
Wrist grip	Car charger
Car holder (short)	Car holder (long)
