Przemysłowy Winmate S430T-3C
e-mail: sklep@mobilator.pl
phone: +48 508-235-505
www.mobilator.pl/przemyslowy-winmate-s430t-3c-produkt-86097.html

Przemysłowy Winmate S430T-3C
Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech enterprise, has won many awards in tests conducted around the world.

winmate mil-810f mil-std 461e rugged wojskowy przemysłowy industrial army militar pc full ruggadized mobilator.pl

Winmate Company introduced a new model S430T reinforced Full Rugged Tablet PC that meets the most stringent military standards established by the U.S. military.

Description

kolektor danych winmate s430t

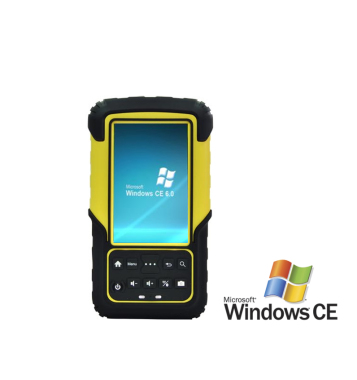

Winmate S430T-3C
• Windows CE 6.0
• 400 nit 480 x 800 LED displa
• 5 megapixel digital camera
• RS232 | USB OTG | Docking
• IP67 Dust & Water Protection
• Micro SD card slot
• Optional 1D/2D Barcode reader
• Optional LF/HF RFID reader
• Robust battery
• Flexible warranty

This compact PDA works where other equipment long refuse to obey. With a sealed casing and rubber corners, the device is resistant to mechanical damage, dirt, dust and moisture, and can operate in temperatures from -20 to 60 degrees Celsius. Protection was defined by MIL-810F.

System specifications
  Processor  ARM®Cortex™ - A8 OMAP DM3730 1.0Ghz
 Display  4.3" (480x800) Capacitive : Multi-Touch : Sunlight Readable
 RAM  512MB Mobile DDR RAM
 ROM
  512MB Flash Memory
 Camera  5Mpx : LED : auto-focus
 Klawiatura  35Keys QWERTY
 Connectors  USB OTG : RS232 : Micro SD (max.32GB)
 Audio  Microphone : Speaker 1.2W
 Battery  3.7V Li-Poli 5000 mAh
 Sensors  Light : Proximity
 Readers  2D via Camera
   RFID HF 13.56 MHz (optional)
   RFID LF 125 KHz (optional)
   1D Barcode Scanner (optional)
 Modules  WiFi  : Bluetooth V2.1+EDR
   HSPA/ UMTS / GPRS / WCDMA / GSM
 GPS  Built-in  EO-6Q GPS module
 System  Windows CE 6.0
Versions
Standard
 S430T-C
3.5G
 S430T-3C
1D Laser
 S430T-B2C
1D Laser + 3.5G
 S430T-3B2C
RFID HF
 S430T-HFC
RFID HF + 3.5G S430T-3HFC
RFID LF S430T-LFC
RFID LF + 3.5G
 S430T-3LFC
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

The collection and processing of data

s430t data collector kolektor danych

Barcode Scanner (optional)

1D Barcode Scanner winmate s430tQuick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

Barcodes Density (mil) Near (mm) Far (mm)
Code 39 5 55 115
Code 39 10 30 215
PDF417 5 50 105
PDF417 10 30 215
QR Code 10 25 135
QR Code 15 25 210
Datamatrix 10 25 150
Datamatrix 15 20 220

RFID (optional)

RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

  RFID HF
  RFID LF
Reference Standards ANSI/ISO Standards 14443A
 EM 64 bits, ASK Manchester coding
Operating Frequency 13.56MHz 125 KHz
Detect Range 1 ~3cm
 1 ~3cm



Modules and Wireless Networks

WiFi 802.11 a/b/g/n
Bluetooth Bluetooth Class2.1 with EDR
GPS Built-in  EO-6Q GPS module
WCDMA  HSPA/ UMTS / GPRS / WCDMA / GSM

hsdpa wcdma 3g kolektor danych bluetooth winmate

S430T is aimed at mobile applications in the field, warehouse, hospital, vehicles and combat vehicles. The wireless communication using Bluetooth, WLAN 802.11 b / g / n, 3.5G and GPS module. Unquestionable advantage is the presence of the RS-232 side has a mini USB standard. Optionally, it can be embedded barcode or RFID.

go top... do góry menu… menu

Minimalism

rugged ip67 winmate kolektor danych Body and dimensions

The small size (179x99x38mm) tablet will work where other equipment long refuse to obey. With a sealed casing and rubber corners, the computer is very resistant to mechanical damage, dirt, dust and moisture, and can operate in temperatures from -20 to 60 degrees Celsius. Protection was defined by MIL-810F. The manufacturer also provides full immunity standard IP67.

kolektor danych winmate s430t rfid barcode scanner 1D 2D


Processor and Chipset

Winmate is supported processor TI OMAP 3730 Cortex A8 1000MHz, making it extremely energy efficient while maintaining high performance. All applications work very smoothly and the use of multiple modules at the same time does not affect the operation of the device.


Dimensions 99x179x38mm
Weight 450g

wymiary winmate s430t kolektory danych

go top... do góry menu… menu

Resistance Standards

Applicable Standards
 Operating -20°C -- +60°C
 Operating Humidity
 95% no condensing
 Dust IP6x (dust)
 Water IPx7 (water)
 Vibration MIL-STD-810G M514.6
 Drop MIL-STD-810F Method 516.5 | Multiple drops to concrete 4ft./1.2m
 Regulatory     CE, FCC class B

go top... do góry menu… menu

kolektory danych winmate przemysłowy 3g rfid

Resistance IP67

RFID 2D skaner czytnik kodów kreskowych 1DDegrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

go top... do góry menu… menu
The first digit [x]
Protection against solid objects		   The second digits [y]
Protection against liquids
No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1

Protection from dripping water
Protection from object not greater than 12mm in diamete
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from water projected from a nozzle
Complete protection against contact, Protection from infiltration of dust
6

6
Protection against heavy seas, or powerful jets of water


7
Protection against immersion


8

Protection against complete, continuous submersion in water
go top... do góry menu… menu

Use

The S430T, rugged tablet is ideal solution for Government; industrial/commercial customers who are interested in the ability to work in rough environments yet maintain productivity without the risk of data or performance losses.

Public Health Services

With Winmate 4,3" Handheld, doctors are able to quickly tracking patients medical records ordiagnostic information with barcode reader without going back and forth between offices andwards. The compact size of 4,3" Handheld makes medical workers easier to carrying light-weightcomputer around and increasing work efficiency.

High Mountain Engineering

For high mount engineering which requires multi-functional devices for all kinds of harsh environments, 4,3" Handheld assists engineers to utilize digital compass to determine directionas well as altimeter to estimate altitute. In addition, the digital camera with auxiliary LED backlightallows them to take photos during night time or dim environments.


Warehousing

In warehousing industry, users are able to obtain product and inventory information by using

4,3" Handheld and transfer data back to the office with built-in 3G and WLAN.



Mining Industry

Miners are frequently requested to work in high-temperature and inconvenient place. 4,3" Handheld optimizes all functions in a wide range of temperature from -20°C to 60°C. Furthermore with digital compass helps miners determine the right direction under ground.


go top... do góry menu… menu


Available hardware configurations

winmate s430t industrial przemysłowy

Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.
S430T C 3C B2C 3B2C HFC 3HFC LFC 3LFC
 WiFi
 Bluetooth
 Camera
 IP66 - -
 IP67 - - - - - -
 GPS
 3.5G - - -
 1D Laser
 - - - - - -
 2D CMOS
 - - - - - -
 RFID HV
 - - - - - -
 RFID LF - - - - - -

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
menu… menu

Durability: MIL-STD 810F
Humidity: 95% non-condensation
Waterproof: IP 67
Weight:
Temperature: Operating temperature: -30°C - 60°C / -4°F - 140°F, Storage temperature: -40°C - 71°C / -40°F - 160°F
Shock: MIL-STD-810F Metod 516.5
Vibration: MIL-STD-810F Metod 514.5
Drop: MIL-STD-810F Metod 516.5
Sand and dust: IP 67
1D barcode scanner (reader): none (available in other configurations)
2D barcode scanner (reader): Yes - via Camera
RFID scanner (reader): none (available in other configurations)
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Yes
VESA standard – holders and mounts support: -----
COM port: Yes
Dispaly: 4.3" (480x800) Capacitvie : Sunlight Readable : Multi-Touch
Brightness: 400nit
Contrast: 800:1
Touch screen: Yes - Touch Capacitive
Graphics card: -----
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: ARM®Cortex™ - A8 OMAP DM3730 1.0Ghz
Chipset: -----
BIOS: -----
Memory: 512MB Mobile DDR RAM
Hard Drive: 512 MB Flash
Flash Memory:
Battery: Li-Poly 3.7V 5000mAh, adapter 100-240V, 50-60Hz, 15VDC
Working time on battery: up to 8h
HotSwap battery: Yes
Fast battery replacement ability: Yes
Size: 179 x 99 x 38 mm / 470g
Casing material: plastic
Fanless casing: Yes
Operating System: Win CE6.0 (optional: Windows Mobile 6.5 o rAndroid 2.3.4)
LAN: -----
WLAN: Yes - 802.11 2.4GHz b/g/n mode
Bluetooth: Yes - 2.1+ EDR (No audio profile)
WAN: Yes - HSPA/ UMTS / GPRS / WCDMA / GSM
GPS: Yes - NEO-6Q GPS (factory)
Flash Card Reader: Yes - SDIO / SDHC up to 32GB
CD/DVD: No
Camera: Yes - 5.0M pixel Camera with LED auxiliary light (Rear Side , with Auto Focus)
Audio: Microphone : Speaker 1.2W
Seciurity: Gum case
In/Out: 1xRS232 : 1xmicroUSB : 1xUSB OTG : 1xDocking station slot : DC
Keyboard: Yes - 35Key QWERTY
Additional Navigation Devices : -----
Color: black-yellow
Optional accessories: Barcode scanner : RFID scanner
Other: Warranty 1 year (Option 2/3 years)


CURRENT PRICE
3271.05 € Net
4023.39€ Gross
