Founded in 1996, Winmate has achieved a fine reputation as a developer and manufacturer of rugged computers and industry panel LCD. Due to our product positioning in the high-tech and niche market, we have won many honors in computer product evaluation conducted throughout the world.
|

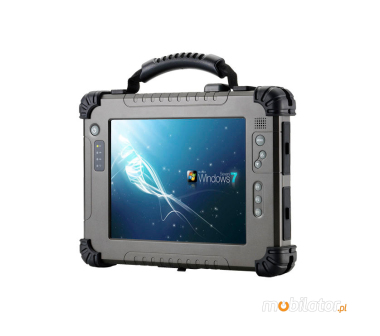

Winmate PCs are an ideal gadget for mobile professionals. They enable you to take notes quickly and work in close spaces. Rugged Tablet PCs provide even more benefits for mobile professionals. R10I is fully rugged and is certified for both military and industrial ruggedization standards.
|
|
|
|
Guarantee
Winmate corporation give 1 year standard guarantee. Optional possibility 2 year or 3 years.
|
 |
|
|
 |
 |
Function Hot-Swap:
Everyone wants as much processing speed as possible, especially in mobile units. The battery life of our Rugged Tablet PC has been extended by our new function to change the second battery without shutting down your system. We believe it will bring immense benefits and reliability in your mobile application.
The Hot-swap second battery is secured by two large Philips screws ensuring the battery will never loosen. It has Li-Ion 2600 mAh which supports half the operating time of the main battery.
|
|
Option accessories
Winmate delivers our all new Ruggedized Tablet products with two kind of series: one is Rugged Mobile PC Series for a Panel PC with battery charging solution, other series is Rugged Tablet PC Series with totally portable design with hot-swap battery for outdoor use.
|
Car AC
|
Docking Station
|
Vehicle Mount Kit VESA
|
Vehicle Mount Kit
|
Carrying Handle
|
Shoulder Handle
|
Carry Bag
|
 |
 |
 |
 |
Ergonomics:
-Designed with about custommer.
-Comfortable strong handle be irreplaceable in transportation.
|
 |
Mobility:
- WiFi 802.11,
- Bluetooth,
- GPS.
|
 |
Software:
- Programmable function HotKey buttons.
- Programmable application HotTab SW
- Support: Windows 7
|
 |
Cooling:
- Fanless.
|
 |
Durability:
- Full Rugged aluminium-magnesium alloy case.
|
 |
Screen:
- 10.4" LED 1024x768 touch screen, ideal for high ambient light conditions standard 700nits, contrast 1200:1
|
 |
  |
 |
|
The R10I, rugged tablet is ideal solution for Government; industrial/commercial customers who are interested in the ability to work in rough environments yet maintain productivity without the risk of data or performance losses.
|
 |
|
The following is a top-level introduction to US Military standard MIL-STD-810, used to define the testing methodology for, and results required for acceptance of, rugged equipment.
MIL-STD-810 is a series of performance and manufacturing guidelines set by the US Department of Defense for military and commercial equipment and applications. These guidelines specify allowable parts and environmental condition ranges in which a device must be able to operate to meet compliance. MIL-STD-810 is a generally accepted standard of ruggedisation testing and compliance for mobile computers and equipment. The MIL-STD-810 test method is used to generate confidence in the environmental worthiness and overall durability of ‘material system’ design. The testing process follows guidelines, which include program documentation, program roles, test standards, and laboratory test method guidelines for all categories. The laboratory test methods are broken down into 24 categories and thereafter procedures (specific tests or levels) appropriate to the environment in which the equipment is expected to be used. The compliance test categories are shown overleaf.
|
|
MIL-STD 461E
Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment.
|
|
Vibration: MIL-STD 810F Metod 514.5
|
|
Shock: MIL-STD 810F Metod 516.5
 |
|
|
 |
 |
|
Dictionary:
|
|
Nit - 1Nit = 1Candela - The candela is the luminous intensity, in a given direction, of a source that emits monochromatic radiation of frequency 540×1012 hertz and that has a radiant intensity in that direction of 1⁄683 watt per steradian. The definition describes how to produce a light source that (by definition) emits one candela. Such a source could then be used to calibrate instruments designed to measure luminous intensity.
The candela is sometimes still called by the old name candle, such as in foot-candle and the modern definition of candlepower. |
| Durability: | MIL-810F / Full Rugged |
| Humidity: | 10 - 90% |
| Waterproof: | IP 54 |
| Weight: | |
| Temperature: | High temp. MIL-STD 810F Method 501.4 60蚓 / Low temp. MIL-STD 810F Method 502.4 -20蚓 |
| Shock: | MIL-STD 810F Method 516.5 |
| Vibration: | MIL-STD 810F Method 514.5 |
| Drop: | MIL-STD 810F Method 516.5 / 1.20m |
| Sand and dust: | IP 54 |
| 1D barcode scanner (reader): | No |
| 2D barcode scanner (reader): | No |
| RFID scanner (reader): | No |
| Magnetic card reader (MSR): | No |
| Microchip card reader: | No |
| Docking station connector: | Yes |
| VESA standard – holders and mounts support: | Yes |
| COM port: | Yes |
| Dispaly: | 10.4" High Quality 1024 x 768 Resolution TFT-LCD Panel |
| Brightness: | 700nit |
| Contrast: | 1200:1 |
| Touch screen: | Yes |
| Graphics card: | Intel® Integrated |
| Swivel Hinge: | No |
| VGA out: | No |
| TV Out: | No |
| TV Tuner: | No |
| Processor: | Intel® Atom Dual Core N2800 1.86GHz |
| Chipset: | Intel® NM10 Chipset |
| BIOS: | AMI System BIOS |
| Memory: | 2 GB DDR3-800 ( max. 4GB) |
| Hard Drive: | 32GB mSATA SSD Max. up to 128GB) |
| Flash Memory: | |
| Battery: | Li-Ion 5200mAh 11.1V |
| Working time on battery: | Battery Mark Ver.4.0.1 - 5 hrs 30 mins |
| HotSwap battery: | No |
| Fast battery replacement ability: | Yes |
| Size: | 323 x 244 x 53 mm / 2.5 Kg / VESA / Vehicle Mount |
| Casing material: | aluminium - magnesium |
| Fanless casing: | Yes |
| Operating System: | No - (Option - Windows 7) |
| LAN: | Gigabit-LAN BCM57780, 10/100/1000 Mbps |
| WLAN: | Yes - 802.11b/g/n |
| Bluetooth: | Yes - Bluetooth 3.0 HS Standard (class II) |
| WAN: | Yes - Built-in 3G module |
| GPS: | No |
| Flash Card Reader: | None |
| CD/DVD: | No (optional by USB) |
| Camera: | No |
| Audio: | 1.5W Speaker |
| Seciurity: | Gum corners |
| In/Out: | 2x USB 2.0 / 1x Line in / 1x Line out / 1x Reset button / 1x power jack / 1x LAN / 1x 6 pins Terminal block connector for 2 channels Canbus / 1x COM port for RS232 / 1x SIM card Slot / 1 x docking connector |
| Keyboard: | No |
| Additional Navigation Devices : | No |
| Color: | Graphit |
| Optional accessories: | Car AC, Docking Station, Vehicle Mount Kit VESA, Vehicle Mount Kit, Carrying Handle, Shoulder Handle, Carry Bag |
| Other: | Fanless / Stadard VESA |
CURRENT PRICE |
|
| 7420.77 € | Net |
| 9127.55€ | Gross |
