Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.
 |
|

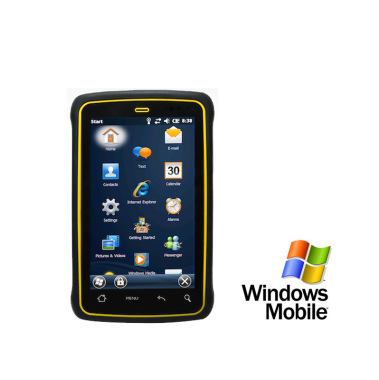

While from upfront the Winmate E430 looks like just another modern smartphone, take it in your hands or look at it from the side or back, and it's instantly obvious that this device is built to last and take a good bit of abuse. The body is made of ABS plastic with rubberized bumper areas and overmolding offering not only an attractive look, but also extra protection along the sides and corners. Physical controls are at a minimum. Like all devices with procap digitizers, the E430 is operated almost exclusively via touch. While our review device came in an attractive yellow and black, Winmate also offers the E430 in white with light-blue moldings, likely geared towards applications in healthcare settings.
|
||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The collection and processing of data
|
Barcode Scanner (optional)Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
|
RFIDRFID Technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading information from special tags that are attached to the objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
Modules and Wireless Networks
Return to "Available hardware configurations" |
||||||||||||
Minimalism |
||||||||||||
|
Winmate E430T is equipped with one USB port and Micro SD card. The possibility of recording two cameras allow 2Mpx and 5Mpx. And thanks to the 3G device can connect to the Internet at any time. Navigating the complex facilitates efficient GPS module, which is equipped in each model Winmate E430T. 1D/2D barcode scanner and RFID / IR is available in select configurations to select the appropriate version in the menu "Available hardware configurations".
|
||||||||||||
Protection Standards |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Available hardware configurationsHardware configurations
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ... |
menu…  |
| Durability: | MIL-STD 810F |
| Humidity: | 95% non-condensation |
| Waterproof: | IP 65 |
| Weight: | |
| Temperature: | Operating temperature: -30°C - 60°C Storage temperature: -40°C - 70°C Charging temperature: 10°C do + 40°C |
| Shock: | MIL-STD-810F Method M516.5 |
| Vibration: | MIL-STD-810F Method M514.5 |
| Drop: | MIL-STD-810F Method M516.5 |
| Sand and dust: | IP 65 |
| 1D barcode scanner (reader): | No - (available in other configurations) |
| 2D barcode scanner (reader): | No - (available in other configurations) |
| RFID scanner (reader): | Yes - RF 13.56MHz Mifare_One (S50), Mifare_One (S70) ISO 14443-A(R/W), ISO 15693(R/W) |
| Magnetic card reader (MSR): | No |
| Microchip card reader: | No |
| Docking station connector: | No |
| VESA standard – holders and mounts support: | No |
| COM port: | No |
| Dispaly: | 4.3'' TFT WVGA (480x800) capacitive (Pro-Cap) |
| Brightness: | 400nits |
| Contrast: | 800:1 |
| Touch screen: | Yes - capacitive (Pro-Cap) Multi Touch |
| Graphics card: | -------- |
| Swivel Hinge: | -------- |
| VGA out: | -------- |
| TV Out: | No |
| TV Tuner: | ----- |
| Processor: | ARM® Cortex™ - A8 Core DM3730 1000MHz |
| Chipset: | -------- |
| BIOS: | -------- |
| Memory: | 512MB MDDR |
| Hard Drive: | 512MB NAND Flash |
| Flash Memory: | |
| Battery: | Li-Ion battery 2600 mAh (1S1P) : 5V/1A : USB Adapter |
| Working time on battery: | up to 8h |
| HotSwap battery: | No |
| Fast battery replacement ability: | No |
| Size: | 132.2 x 82 x 21.5mm - 232g |
| Casing material: | ABS plastic with rubberized bumper areas and overmolding |
| Fanless casing: | Yes |
| Operating System: | Yes - Microsoft® Windows Embedded Handheld 6.5 |
| LAN: | -------- |
| WLAN: | Yes - WiFi b/g/n |
| Bluetooth: | Yes - Bluetooth (2.1+ EDR) |
| WAN: | No - (available in other configurations) |
| GPS: | Yes - U-Blox Neo6Q |
| Flash Card Reader: | Yes - micro SD (max. 32GB) |
| CD/DVD: | ----- |
| Camera: | Yes - Rear Camera 5Mpx + LED Flash |
| Audio: | 1.2W |
| Seciurity: | Gum case |
| In/Out: | micro USB (typ B) |
| Keyboard: | No |
| Additional Navigation Devices : | Yes - Function keys | Switch, Starting scanner, Volume |
| Color: | black-yellow |
| Optional accessories: | Car holder, Car charger |
| Other: | Optional warranty up to 3 years : Receiver&Transmitter IR (optional) |
CURRENT PRICE |
|
| 2703.08 € | Net |
| 3324.79€ | Gross |
