Industrial Winmate E430T-3BLM
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-winmate-e430t-3blm-produkt-86185.html

Industrial Winmate E430T-3BLM

winmate e430t 3G 1D 2D RFID


Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.



Description

kolektor danych winmate e430t

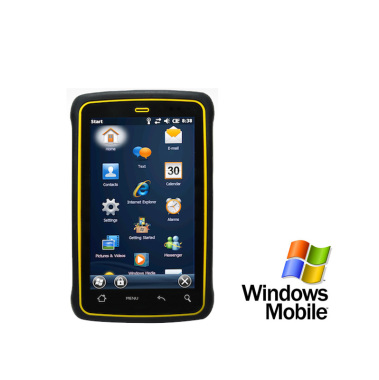

Winmate E430T
TI Cortex A8 OMAP DM3730 1.0GHz
Windows Embedded Handheld 6.5
High quality 4.3" Display Pro-Cap
The lightness and mobility
Rubberized corners
IP67 | IP66 (with readers)
MIL-STD-810G | MIL-STD-810F
Many wireless options
Robust battery
Flexible warranty

While from upfront the Winmate E430 looks like just another modern smartphone, take it in your hands or look at it from the side or back, and it's instantly obvious that this device is built to last and take a good bit of abuse. The body is made of ABS plastic with rubberized bumper areas and overmolding offering not only an attractive look, but also extra protection along the sides and corners. Physical controls are at a minimum. Like all devices with procap digitizers, the E430 is operated almost exclusively via touch. While our review device came in an attractive yellow and black, Winmate also offers the E430 in white with light-blue moldings, likely geared towards applications in healthcare settings.

System specifications
 Processor TI Cortex A8 OMAP DM3730 1.0GHz
 Display 4.3" (480x800) capacitve (Pro-Cap) : multi-touch
 RAM
512MB SDRAM
 ROM
512MB NAND flash
 Connectors Micro USB : Micro SD (max.32GB)
  SIM (versions with 3G)
 Audio Microphone : Speaker 1.2W
  3.5mm Jack (versions without readers)
 Battery 3.7V 2600mAh Li-Ion (1S1P)
 Camera Front: 2Mpx
  Rear: 5Mpx + Dioda LED
 Sensors light : proximity : gravity
  3-axis acceleration : 3-axis magnetic field
 Readers RFID (optional) : 1D : 1D/2D (optional) : IR (optional)
 Modules WiFi : Bluetooth V2.1+EDR : GPS : 3.5G
 Operating System
Windows Embedded Handheld 6.5
Return to "Available hardware configurations"
Standard - 3G
winmate e430T 3G
HF RFID
winmate E430T RFID HF
IR winmate E430T RFID HF
1D winmate E430T 1D Barcode SCanner
1D / 2D
winmate E430T 1D Barcode SCanner
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

The collection and processing of data



winmate e430t kolektor danych kolektory danych 1D 2D IP67

Barcode Scanner

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

1D Laser
JAN/UPC/EAN incl. addon, Codabar/NW-7, Code 11, Code 39,Code 93, Code 128, GS1-128(EAN-128),GS1 DataBar (RSS), IATA, Industrial2of5,Interleaved 2of5, ISBN-ISMN-ISSN,Matrix 2of5, MSI/ Plessey, S-Code, Telepen,Tri-Optic, UK/Plessey• Postal code: Chinese Post, Korean PostalAuthoritycode
2D CMOS (optional)
QRCode, DataMatrix, PDF417 Maxicode,Aztec

winmate e430t barcode scanner czytnik kodów kreskowych

RFID (optional)

RFID Technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading information from special tags that are attached to the objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.



czytnik RFID winmate e430t gps wcdma Bluetooth wifi

Modules and Wireless Networks

RFID
HF:13.56M (ISO14443A Protocol) - (optional)
IR Odbiornik & Nadajnik IR (DLT 645 protocol) - (optional)
WiFi Tak - 802.11 a/b/g/n (factory)
Bluetooth Tak - Bluetooth Class2.1 with EDR (factory)
GPS Tak - U-Blox Neo6Q (factory)
WCDMA 2100/900MHz (WCDMA, HSDPA, HSUPA, GPRS , EDGE)

Return to "Available hardware configurations"

go top... do góry menu… menu

Minimalism



kolektor danych winmate e430t ip67

Winmate E430T is equipped with one USB port and Micro SD card. The possibility of recording two cameras allow 2Mpx and 5Mpx. And thanks to the 3G device can connect to the Internet at any time. Navigating the complex facilitates efficient GPS module, which is equipped in each model Winmate E430T. 1D/2D barcode scanner and RFID / IR is available in select configurations to select the appropriate version in the menu "Available hardware configurations".

winmate e430t win mobile tablet przemysłowy kolektor danych


E430T (Standard/3G)

E430T (1D/2D/RFID/HF/IR)

 Dimensions 132.2x82x21.2mm 132.2x82x21.5mm
 Weight 232g 240g

winmate e430t mały dla sklepów przemysł winmate e430t kolektory danych rfid 1d 2d

go top... do góry menu… menu





Protection Standards

Applicable standards

 Operating -30°C ~ +60°C
 Storage -40°C ~ +70°C
 Charging 10° ~ 45°C
 Humidity 95% non-condensing
 Dust & Water
IP67
(versions with readers) IP66
 Vibration MIL-STD-810G M514.6
(versions with readers) MIL-STD-810F M514.5
 Drop Multiple drops to concrete 5ft./1.5m over the range of operating temperatures
(versions with readers) Multiple drops to concrete 4ft./1.2m over the range of operating temperatures
 Regulatory CE, FCC, CCC, UL
(versions with readers) CE, FCC, UL
go top... do góry menu… menu



winmate e430t hand rubberized data collector 1d 2d rfid

IP67 Resistance

 Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

go top... do góry menu… menu
The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8


Protection against complete, continuous submersion in water



Available hardware configurations

Hardware configurations

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

M 3M B2M 3B2M BLM 3BLM HFM 3HFM IRM 3IRM
 WiFi
 Bluetooth
 Camera
 IP66 - -
 IP67 - - - - - - - -
 GPS
 3.5G - - - - -
 1D (Laser)
- - - - - -
 2D (CMOS)
- - - - - - - -
 IR - - - - - - - -
 RFID HF
- - - - - - - -

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

menu… menu

Durability: MIL-STD 810F
Humidity: 95% non-condensation
Waterproof: IP 65
Weight:
Temperature: Operating temperature: -30°C - 60°C
Storage temperature: -40°C - 70°C
Charging temperature: 10°C do + 40°C
Shock: MIL-STD-810F Method M516.5
Vibration: MIL-STD-810F Method M514.5
Drop: MIL-STD-810F Method M516.5
Sand and dust: IP 65
1D barcode scanner (reader): Yes - 1D Barcode Scanner (Laser)
2D barcode scanner (reader): No - (available in other configurations)
RFID scanner (reader): No - (available in other configurations)
Magnetic card reader (MSR): No
Microchip card reader: No
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 4.3'' TFT WVGA (480x800) resistive-capacitive (Pro-Cap)
Brightness: 400nits
Contrast: 800:1
Touch screen: Yes - resistive-capacitive (Pro-Cap) Multi Touch
Graphics card: --------
Swivel Hinge: --------
VGA out: --------
TV Out: No
TV Tuner: -----
Processor: ARM® Cortex™ - A8 Core DM3730 1000MHz
Chipset: --------
BIOS: --------
Memory: 512MB MDDR
Hard Drive: 512MB NAND Flash
Flash Memory:
Battery: Li-Ion battery 2600 mAh (1S1P) : 5V/1A : USB Adapter
Working time on battery: up to 8h
HotSwap battery: No
Fast battery replacement ability: No
Size: 132.2 x 82 x 21.5mm - 232g
Casing material: ABS plastic with rubberized bumper areas and overmolding
Fanless casing: Yes
Operating System: Yes - Microsoft® Windows Embedded Handheld 6.5
LAN: --------
WLAN: Yes - WiFi b/g/n
Bluetooth: Yes - Bluetooth (2.1+ EDR)
WAN: Yes - (WCDMA, HSDPA, HSUPA, GPRS , EDGE)
GPS: Yes - U-Blox Neo6Q
Flash Card Reader: Yes - micro SD (max. 32GB)
CD/DVD: -----
Camera: Yes - Rear Camera 5Mpx + LED Flash
Audio: 1.2W
Seciurity: Gum case
In/Out: micro USB (typ B)
Keyboard: No
Additional Navigation Devices : Yes - Function keys | Switch, Starting scanner, Volume
Color: black-yellow
Optional accessories: Car holder, Car charger
Other: Optional warranty up to 3 years : Receiver&Transmitter IR (optional)


CURRENT PRICE
3227.41 € Net
3969.71€ Gross
