Industial ANDROID Touch Panel PC AV-Panel 8 inch IP54 Przmysłowy Panel PC Andoid AV-Panel 8 WiFI Norma odporności IP54 Przemysłowy komputer panelowy Ekran rezystancyjny 4 wire resistive wyświetlacz 8 cali mobilator.pl New Portable Devices Windows ANDRIOD PANEL PC KOMPUTER ANDROID

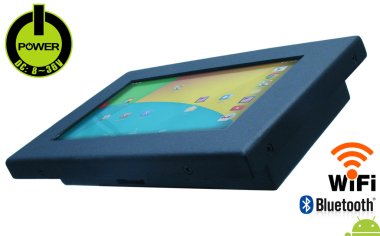

AV-Panel	Industial ANDROID Touch Panel PC AV-Panel 8 inch IP54 v.5.1
		CPU: ARM Cortex-A7 A20 1GHz Dual Core
		Memory RAM: 1GB
		Memory ROM: 8GB Nand Flash
		System: Android 4.2.2
		Screen: 8" / 1024x768 / capacitive
		Expansion cards: none
		Detailed specification of the configuration available in the "Technical data"

Using the latest technology Panel PC is designed for continuous operation multitasking with low power consumption. An important advantage is the powerful combination of small size with considerable opportunities through the use of processor family ARM® Cortex-A7 A20, 1GB of RAM memory. Integrated Mali400mp2 GPU video systems allow you to play a wide range of applications and media files (video, audio). The internal memory offers available to 8GB which can be expanded card SD memory (32GB max).

Dimensions:

Housing dimension are 216 x 176 x 46 mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.0 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Cooling:

Industrial Touch PC AV-Panel 8 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

The industrial fanless Panel PC AV-Panel 8 uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled.

go top…

menu…

Communication & Connections

Communication:

Industrial Panel PC AV-Panel 8 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as Bluetooth, 3G and GPS.

Connector:

Integrated Network card 10 / 100Mpbs 1xRJ-45 LAN, WIFI allows you to connect the device to the network. The panel is equipped with: one LAN connector, one VGA, two USB 2.0 ports, one Audio(Eerjack) input , SD card slot and power connector (DC-in).

go top…

menu…

Screen

Industrial Touch PC AV-Panel8 has a water-resistant front panel and scratch resistant screen with 3H hardness. With 1024x768 resolution and high brightness of 250 cd/m2, screen capacitive type with high sensitivity to touch, offers the user a clear picture and ease of use.

Capacitive screen

Operation of this type of screen is a bit more complex than the resistive screens, but the comfort of their use is much higher. In the corners of the screen capacitive electrodes are placed emitting weak electric field. If you touch the display, the intensity produced before the field changes, and the system will calculate respectively, where the disturbance occurred.

Industial ANDROID Touch Panel PC AV-Panel 8 inch IP54 Przmysłowy Panel PC Andoid AV-Panel 8 WiFI Norma odporności IP54 Przemysłowy komputer panelowy Ekran rezystancyjny 4 wire resistive wyświetlacz 8 cali mobilator.pl New Portable Devices Windows ANDRIOD PANEL PC KOMPUTER ANDROID
The image on the capacitive screen is clearly visible both indoors and outdoors. Particularly noteworthy here precise identification of the touch system, because this is a very high level, although many here depends on the materials used in the construction of the screen. The downside may be items that responds to a capacitive display as a list is very limited.

Using capacitive screens do not have to wrestle because it only requires a light touch of the screen with your finger to the unit responded appropriately.

go top… menu…

Application

Applicable standards and tests carried out.

Panel PC AV-Panel 8 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP54 front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. AV-Panel 8 is the best solution for extreme applications in dust or moisture.

Operating Temp	0-60 °C
Operating Humidity	5%-90%
Dust	IP5x(dust)
Water	IPx4(drops of water)

Resistance IP54 - Front Panel

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… menu…

The first digit [x]
Protection against solid objects

The second digits [y]
Protection against liquids

No special protection

No waterproofing

Protection from solid objects greater than 50mm in diameter

Protection from dripping water

Protection from object not greater than 12mm in diamete

Protection from vertically dripping water (tilted up to 15°)

Protection from object not greater than 2,5mm in diameter

Protection from sprayed water (tilted up to 60°)

Protection from object not greater than 1mm in diameter

Protection from splashed water

Complete protection against contact, Protection against dust deposit

Protection from water projected from a nozzle

Complete protectionm against contact, Protection from infiltration of dust

Protection against heavy seas, or powerful jets of water

Protection against immersion

Protection against complete, continuous submersion in water

Industrial Panel PCs with AV-Panel companies are based on the efficient dual-core processors and high-quality components.

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Areas of use of industrial panel computers.

Trade

Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

Magazine

Industrial Panel PC through COM portcan be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 8-36V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

go top… menu…

Versions

	v.1.1	v.2.1	v.3.1	v.4.1	v.5.1	v.6.1	v.7.1	v.8.1
AV-Panel 8 IP54
Wi-Fi
Bluetooth 4.0	-		-	-
3G	-	-	-	-	-
GPS	-	-	-	-	-	-
NFC	-	-	-		-	-	-
DC: 12 V			-	-	-	-	-	-
DC: 8-36 V	-	-
Screen: capacitive

go top… menu…

Specifications

Display	Screen: 8" Resolution: 1024 x 768 Type: capacitive
Resistance IP	Front Panel: IP 54
Communication	Wi-FI Bluetooth 3G (option) GPS (option)
Dimensions	Height: 46 mm Width: 176 mm Length: 216 mm
Weight	3 kg
Processor	ARM Cortex-A7 A20 1GHz Dual Core
Memory ROM	8GB NAND FLASH
Memory RAM	1GB DDR3
Graphics Card	Mali400mp2 GPU
Sound Card	Integrated
Network Card	100Mpbs LAN
Ports & interfaces	2 x USB 1 x RJ45 1 x SD Card reader 1 x VGA 1 x Audio 1 x DC-in

Screen size:	8"
Resolution:	1024 x 768
Aspect ratio:	-----
Touchscreen:	Capacitive
Chipset:	-----
CPU Support:	1) ARM Cortex-A7 A20 1GHz Dual Core 2) ARM Cortex-A7 A31s 1GHz Quad Core (option) 3) ARM Cortex-A9 S802 2.0GHz Quad Core (option)
Installed CPU:	ARM Cortex-A7 A20 1GHz Dual Core
Memory Support:	up to 1GB (max)
Installed Memory:	1GB DDR3
Graphic Card:	Mali400mp2 GPU
Audio:	Integrated, speakers (optional)
Storage (HDD) Support:	-----
Installed Storage (HDD):	ROM: 8GB NAND FLASH
CD/DVD Drive:	-----
LAN:	RJ45 100Mpbs LAN
Wireless LAN card:	Yes
Bluetooth:	Bluetooth 4.0
3G:	-----
4G LTE:
GPS:	-----
TV Tuner:	-----
Watch Dog Timer:	-----
Ports - front panel:	-----
Ports - rear panel:	2x USB 1x RJ45 1x SD card reader 1x VGA 1x Audio 1x DC-IN
Ports - left panel:	-----
Ports - right panel:	-----
Power:	8-36 V DC
Supported OS:	Support Android
Installed OS:	Android 4.2.2
Dimensions:	216 x 176 x 46 mm
Weight:	3 kg
Expansion:	-----
Fanless:	Yes
Humidity:	5%~ 90%
Temp:	0°C ~ 60°C
Storage Temp:	-20°C ~ 65°C
IP Norm:	Front panel
IP Level (back panel):	-----
IP Level (front panel):	IP 54
Dual display:	-----
Response time touch-panel (ms):	< 20
Contrast Ratio:	500:1
Brightness:	250 cd/m2
Viewing Angle:	160;160
Backlight MTBF:	>15000hrs
Color Resolution:	262 K
Surface hardness (display):	>3H
Touch Life(contacts):	>10,000,000 times
Housing material:	Aluminum
Mounting VESA:	VESA 100mm x 100mm
Folding Bracket (for office type working):	No (optional)
Power Consumption:	6 W
Others:	-----
Anti-vibration:	-----
Anti-shock:	-----
RFID scanner (reader):	-----
Barcode reader:

CURRENT PRICE
2041.39 €	Net
2510.91€	Gross
