Rugged MobiPad MobiPad RT-M77 v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-mobipad-rt-m77-v.1-produkt-87484.html

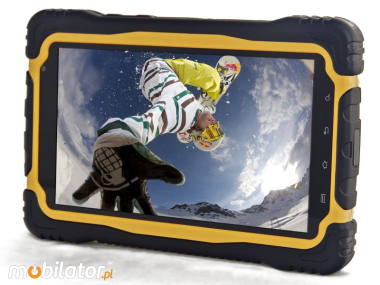

Rugged MobiPad MobiPad RT-M77 v.1

Tablet MobiPad M76 has a specially designed, reinforced structure, adapted to harsh environmental conditions. As equipment produced for the military, meets the requirements of IP65. With this structure is resistant to dust and water. The device works great when in the home and industry.

7 calowych tablet przemyslowy mobipad m76


Description

cpu dual core gpu mobipad m76 tablet przemysłowy

 Processor  ARM Quad-Core (4x - 1.2GHz)
 GPU  Power VR SGX531 Ultra
 Display  7" (1024x600) IPS/AFFS : Tempered Glass :  Capacitive :  Multi-Touch
 RAM  1GB LPDDR2
 ROM  4GB EMCP
 Connectors  Micro USB : Card Reader SD/TF
 GPS  Built-in + A-GPS
 Audio  Headphone output : Microphone : Stereo Speakers
 Camera  Rear 8Mpx (Auto-Focus) : Front 2Mpx
 Battery  9600mAh 5V-2A Li-Polymer
 Keyboard  Onscreen keyboard
 Environment  Android 4.2.2
 Modules  WCDMA/GSM/HSDPA : WIFI b/g/n : Bluetooth 4.0
 Weight&Dimensions  200mm x 135mm x 20.7mm - 680g
 Resistance  IP65 (dustproof and waterproof)
 Readers  optional - RFID
 Warranty
 12 months (optional 24 months)
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.


Resistance

ip65 wodoodporny kurzoodporny pyloodporny ip65

Operating -20°C -- +65°C
Storage -40°C -- +80°C
Humidity 95%
Drop Test
1.2m
Regulatory CE

IP65 Resistance

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu…

Modules and Wireless Networks

aplikacje ochrona przemysłowe tablety mobipad getac

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal CM76 WCDMA module adapts automatically to transfer and network coverage.

WiFi  802.11b/g/n
GPS  Built-in + A-GPS
Bluetooth  Bluetooth 4.0
WCDMA  GSM: 850/900/1800/1900MHz
   WCDMA: 850/2100 : 850/1900 : 900/1900MHz

rugged tablet 7 wifi bluetooth gps wcdma android

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

 menu… menu



Multi-Touch technology allows you to control user interfaces more than one finger at a time, which improves control MobiPadem. Multi-touch devices in contrast to conventional touch screens detect simultaneous touch screen of the 5 locations. Multi-touch is very helpful when web browsing, videos and galleries. New capacitive screen with multi-touch function is even more multimedia capabilities to the user. With support for up to 5 touch points at the same time, you can comfortably use advanced applications.



go top... do góry menu…

Minimalizm

tablet przemysłowy kolektory danych magazyn android 4.1 rugged mobipad

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPad problem disappears forever, as it weighs only 680g and its dimensions (20 x 13.5 x 20.7cm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.

tablet przemysłowy chłodnia magazyn 7 cali 3g rugged ip65


 Rozmiary 20 x 13.5 x 20.7cm
 Waga 680g

go top... do góry menu…


wifi b/g/n tablet przemysłowy 7 calowy android


więcej zdjęć w zakładce "Galeria"...

specyfikacja danej wersji dostępna jest w zakładce "Dane techniczne"...


Durability: IP65
Humidity: 95%
Waterproof: IP65
Weight:
Temperature: Operating temperature: -20°C -- +65°C
Storage temperature: -40°C -- +80°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP65
1D barcode scanner (reader): -----
2D barcode scanner (reader): -----
RFID scanner (reader): none (available in other configurations)
Rugged MobiPad RT-M76 (RFID)
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: No
Dispaly: 7" (1024x600) IPS/AFFS
Tempered Glass
Capacitive
Multi-Touch
Brightness: 400nits
Contrast: 800:1
Touch screen: Tak
Graphics card: Power VR SGX531 Ultra
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: ARM Quad-Core (4x - 1.2GHz)
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 8GB
Flash Memory:
Battery: 9600mAh 5V-2A Li-Polyme
Working time on battery: Around 13h
HotSwap battery: No
Fast battery replacement ability: No
Size: 200mm x 135mm x 20.7mm - 680g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.2.2
LAN: No
WLAN: Yes - 802.11 b/g/n
Bluetooth: Yes - Bluetooth 4.0
WAN: GSM 850/900/1800/1900MHz
WCDMA:850/2100MHz (Customized 850/1900,900/1900)
GPS: Yes - Built-in + A-GPS
Flash Card Reader: micro SD/TF max. 32GB
CD/DVD: -----
Camera: Yes - Front 2Mpx : Rear 8Mpx (Auto-Focus)
Audio: 3.5 Jack : Built-in Stereo Speaker and Microphone
Seciurity: -----
In/Out: micro USB, 3.5mm earphone, Mirco SD card slot
Keyboard: Ekranowa
Additional Navigation Devices : -----
Color: orange-black
Optional accessories: Hand Strap, Car charger
Other: User Manual : Charger : USB Cable : Earphone


CURRENT PRICE
1800.94 € Net
2215.16€ Gross
