Rugged MobiPad MP630 (Standard)
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-mobipad-mp630-1d-produkt-86283.html

Rugged MobiPad MP630 (Standard)

mobipad mp640 uhf rfid 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 2d

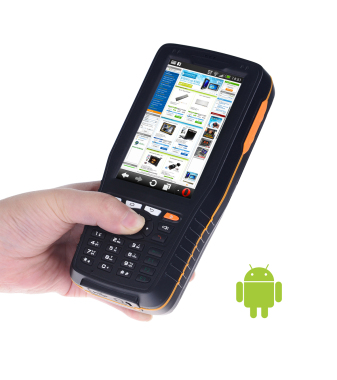

Tablet MobiPad MP630 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, the equipment produced for the military, meets the requirements of IP65. Thanks to this structure is resistant to dust and water. The device is ideal writes in the home and industry.


Descripiton

mobipad mp630 tablet przemyslowy 4 cale 8gb rj45

 Processor   Qualcomm Snapdragon 200 MSM8625Q - Quad (4x)1.2Ghz
 Graphics  Qualcomm Adreno 203
 Display  4" (800x480) VGA LCD resistive-capactivie
 RAM  1GB
 ROM  8GB
 Connectors  Czytnik MicroSD : Mini USB : LAN
 GPS  GPS + A-GPS
 Audio  AudioJack : Speaker : Mikrofon
 Camera  5Mpx (Auto-Focus + LED Flash)
 Battery  3.7V 5600mAh Li-Ion
 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 4.1
 Modules (factory)
 GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth  V2.1 : GPS+A-GPS
 Dimensions
 172 × 81 × 37- 420g
 Resistance  IP65
 Readers  RFID HF 13.56 Mhz | 1D (Laser) | 2D (Laser) - optional
 Warranty
 12 miesięcy (optional 24 months)
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer to your computer data stored in the barcode. With dynamic scanning capabilities and the large range of reading, data collector carefully collected data, which helps to increase the rate and efficiency. The whole can quickly start because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.

1D (Laser)

JAN/UPC/EAN incl. addon, Codabar/NW-7, Code 11, Code 39,Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial2of5,Interleaved 2of5, ISBN-ISMN-ISSN,Matrix 2of5, MSI/ Plessey, S-Code, Telepen,Tri-Optic, UK/Plessey• Postal code: Chinese Post, Korean PostalAuthoritycode itp.

2D (Laser) - optional

 QRCode, DataMatrix, PDF417 Maxicode,Aztec itp.

 2D support 1D codes.

mobipad mp630 rj45 1d barcode scanner

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading information from special tags that are attached to the objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

RFID -  HF
13.56 Mhz

mobipad 630 rfid uhf hf

go top... do góry menu… menu

Resistance

Applicable standards

Operating -10°C -- +45°C
Storage -20°C -- +65°C
Humidity 95% non-condensing
Dust IP6x (dust)
Water IPx5 (water)
Drop Multiple drops a concrete 4ft./1.2m the entire operation range

go top... do góry menu… menu

mobipad mp630 uhf rfid 1d 2d

IP65 Resistance



IP level is a classification of different degrees of protection of electrical equipment which are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, such as dust. It's mainly about access of foreign bodies inside. The second digit is a degree of protection against water.





No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8



Protection against complete, continuous submersion in water

go top... do góry menu… menu

Modules and Wirelles Networks

mobipad mp630 gprs 3g wcdma hsdpa

With WCDMA module, you need only insert a SIM card in the special slot and can instantly connect to the Internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Also used in MobiPad internal 3G module adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11b/g
GPS  High sensitivity receiver
Bluetooth  Bluetooth  V2.1 (OPP)
GSM/3G  GSM (GPRS/EDGE) WCDMA (HSDPA)
    The ability to make voice calls

go top... do góry menu… menu

Minimalism

mobipad mp630 1d barcode scanner lase micro usb lan rj45 bateria

You no longer need to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPadem problem disappears forever, as it weighs only 420g and its dimensions (172 x 81 x 37mm) allow you to take it with them everywhere. With elegant performance and energy efficiency is on the forefront of this segment equipment and is very popular on the Polish market in the industrial segment.

 Dimensions 172 × 81 × 37mm
 Weight 420g



Quick change battery

With friendly construction equipment it is possible to quickly change the battery. This is useful when working in the field and difficult conditions, where there is no additional tools and the necessary time.

mobipad mp630 microusb

go top... do góry menu… menu


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 95%
Waterproof: IP65
Weight:
Temperature: Operating temperature: -10°C -- +45°C
Storage temperature: -20°C -- +65°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP65
1D barcode scanner (reader): Yes - Laser
Motorola SE955
2D barcode scanner (reader): Nie
RFID scanner (reader): Yes - HF 13.56Mhz
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: No
Dispaly: 4" (800x480) VGA LCD : resistive-capacitive
Brightness: 400nits
Contrast: 800:1
Touch screen: Tak
Graphics card: Qualcomm Adreno 203
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Qualcomm Snapdragon 200 MSM8625Q - Quad (4x)1.2Ghz
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 8GB
Flash Memory:
Battery: 6000mAh 3.7V Li-Po
Working time on battery: 9-11 hours
HotSwap battery: No
Fast battery replacement ability: No
Size: 172 × 81 × 37mm - 420g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.1
LAN: Yes
WLAN: Yes - 802.11 b/g
Bluetooth: Yes - Bluetooth 2.1
WAN: GSM 850/900/1800/1900MHz
WCDMA:850/2100MHz (Customized 850/1900,900/1900)
GPS: Yes - Built-in + A-GPS
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Yes - 5Mpx (Auto-Focus + LED Flash)
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: micro USB (support OTG), AudioJack, Mirco SD card slot (max.32GB)
Keyboard: Numeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: yellow-black
Optional accessories: Hand Strap
Other: Charger : USB Cable


CURRENT PRICE
2286.63 € Net
2812.55€ Gross
