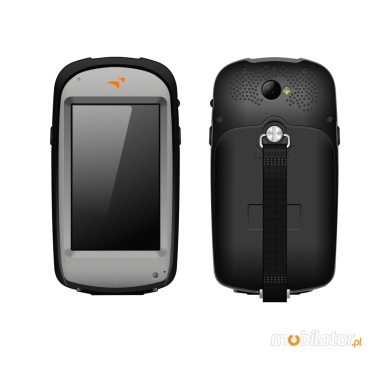

Rugged MobiPad MP VX-S
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-mobipad-mp-vx-s-produkt-86205.html

Rugged MobiPad MP VX-S

mobipad mp vx-s kolektor danych data collector


Tablet MobiPad MP VX has a specially designed, reinforced structure, adapted to harsh environmental conditions. As equipment produced for the military, meets the requirements of IP65. With this structure is resistant to dust and water. The device works great when in the home and industry.


Description

mp vx-s barcode scanner rfid kolektory danych data collector

 Processor  Samsung Cortex-A8 S5PV210@1GHz
 PCB  G43
 Display  4.3" (800x480) TFT Capacitive | Notification LED (red-green)
 RAM  512MB DDR3
 ROM  4GB NAND flash
 Connectors  MicroSD Reader : Mini USB
 GPS  High sensitivity receiver, 64 channels
 Audio  2,5mm mini headphone jack
 Camera  5Mpx : Auto-focus : LED Flash
 Battery  2500mAh Li-Ion
 Keyboard  Onscreen + Function keys (scanner, camera)
 Environment  Android 4.0.4 (Multi-Language)
 Modules (factory)
 850/900/1800/1900 : IEEE 802.11 b/g : Bluetooth  V2.1 (OPP) : GPS
 Dimensions
 83 x 153 x 32mm - 380g
 Resistance  IP65 (dustproof and waterproof)
 Readers  RFID 13.56 Mhz,  1D (CCD), 2D (CMOS)
 Warranty
 12months (optional 24 months)
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.
 Standard
GSM/GPRS
 MP VX-R
GSM/GPRS + RFID
 MP VX-1D GSM/GPRS + 1D
 MP VX-R1D GSM/GPRS + RFID + 1D
 MP VX-2D GSM/GPRS + 2D
 MP VX-R2D
GSM/GPRS + RFID + 2D

go top... do góry menu… menu



Data collection and processing

Barcode Readers (optional)

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data MobiPad exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

1D (CCD)

Newland EM1300

JAN/UPC/EAN incl. addon, Codabar/NW-7, Code 11, Code 39,Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial2of5,Interleaved 2of5, ISBN-ISMN-ISSN,Matrix 2of5, MSI/ Plessey, S-Code, Telepen,Tri-Optic, UK/Plessey• Postal code: Chinese Post, Korean PostalAuthoritycode itp.

2D (CMOS)

Newland EM3000

 QRCode, DataMatrix, PDF417 Maxicode,Aztec itp.

 2D reader also supports 1D.

mpc vx mobipad data collector czytnik kodów kreskowych rfid 13.56mhz

RFID (optional)

They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

Fudan Microelectronics FM1735Q - (RFID)

13.56Mhz

go top... do góry menu… menu



Charging and battery

Quick changer battery

With friendly construction equipment it is possible to quickly change the battery. This is useful when working in the field and difficult conditions, where there is no additional tools and the necessary time.



Charging Station (included)

The kit comes with a comprehensive charging stand, which provides stability of the device in a vertical position and quick loading. MiniUSB output allows you to connect the device via stajcę charging to your computer. To more accurately seize the opportunity to display the kit was included as a high quality stylus.

charging station mobipad mx v-s ip65

Resistance

Applicable standards and tests

 Operating -15°C -- +50°C
Storage -20°C -- +60°C
Humidity 5% -- 95% non condensation
Dust IP6x (dustproof)
Water IPx5 (waterproof)
 Upadek Multiple drops a concrete 5ft./1.5m the entire operation range
Regulatory     CE

go top... do góry menu… menu



IP65

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Bryzgi wodne niezależnie od
kierunku nie powinny wywoływać żadnych niepożądanych efektów
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wirelles Networks

mobipad mx v barcode scanner 3g hsdpa wcdma grps gps tablet przemysłowy

With HSDPA module, you need only insert a SIM card in the special slot and can immediately connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Moreover, the use of the MP-VX internal 3G module adjusts automatically to transfer and network coverage.

WiFi  802.11b/g
GPS  high sensitivity receiver, 64 channels
Bluetooth  Bluetooth  V2.1 (OPP)
GSM/GPRS  Quad Brand EGSM 850/900/1800/1900
    Possibility of calling using wireless headphones

go top... do góry menu… menu



Minimalism

kamera camera industrial przemysłowy barcode scanner rfid 13.56mhz

You no longer need to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPadem problem disappears forever, as it weighs only 380g and its dimensions (83 x 153 x 32mm) allow you to take it with them everywhere. With elegant performance and energy efficiency is on the forefront of this segment equipment and is very popular on the European market in the industrial segment.

 Dimensions  83 x 153 x 32mm
 Weight 380g

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 5% -- 95% non-condensation
Waterproof: IP 65
Weight:
Temperature: Operating temperature: -15°C - 50°C / Storage temperature: -20°C - 60°C
Shock: --------
Vibration: --------
Drop: t 1.2 meters (47") drop, 2⇒plywood over concrete, each edge,face and corner; 26 drops total (@ ambient temp)
Sand and dust: IP 65
1D barcode scanner (reader): none (available in other configurations)
2D barcode scanner (reader): none (available in other configurations)
RFID scanner (reader): none (available in other configurations)
Magnetic card reader (MSR): --------
Microchip card reader: --------
Docking station connector: Yes - Charging station (included)
VESA standard – holders and mounts support: --------
COM port: --------
Dispaly: 4.3'' (800x480) TFT
Brightness: 400nit
Contrast: 800:1
Touch screen: Yes - Capacitive
Graphics card: --------
Swivel Hinge: No
VGA out: No
TV Out: No
TV Tuner: --------
Processor: Samsung Cortex-A8 S5PV210 1GHz
Chipset: --------
BIOS: --------
Memory: 512MB DDR3
Hard Drive: 4GB NAND flash
Flash Memory:
Battery: 2500mAh Li-Ion
Working time on battery: --------
HotSwap battery: No
Fast battery replacement ability: Yes - specially designed battery
Size: 83 x 153 x 32mm
380g
Casing material: plastic with rubber
Fanless casing: Yes
Operating System: Yes - Android 4.0.4 (Multi-Language)
LAN: No
WLAN: Yes - Wifi IEEE 802.11 b/g
Bluetooth: Yes - V2.1 (OPP profile)
WAN: Yes - Quad brand EGSM 850/900/1800/1900 (Voice Calling - Handsfree)
GPS: Yes - Built-in (high sensitivity receiver, 64 channels)
Flash Card Reader: Yes - micro SD up to 64GB
CD/DVD: --------
Camera: Yes - 5Mpx (Flash + Autofocus)
Audio: 2.5mm mini headphone jack
Seciurity: Gum case
In/Out: Mini USB : SIM : Micro SD : 3.5mm Audio Jack
Keyboard: Ekranowa
Additional Navigation Devices : Yes - Function keys (launch scanner, launch camera, power)
Color: black-grey
Optional accessories: Additional battery 2500mAh Li-Ion
Other: Optional warranty up to 2 years


CURRENT PRICE
1946.33 € Net
2393.99€ Gross
