Rugged MobiPad M770
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-mobipad-m770-produkt-86258.html

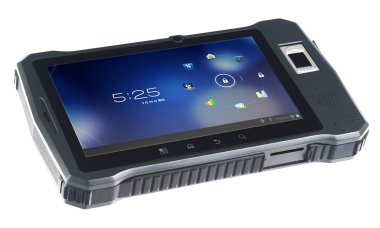

Rugged MobiPad M770

tablet przemysłowy umpc mobipad m770 7 cali gps 3g rfid

Tablet MobiPad M770 has a specially designed, reinforced structure, adapted to harsh environmental conditions. As equipment produced for the military, meets the requirements of IP65. With this structure is resistant to dust and water. The device works great when in the home and industry.


Description

cpu dual core gpu mobipad m770 tablet przemysłowy

 Processor Qualcomm MSM 8225 Dual Core 1.2GHz
 Display 7" (1024x600) Capacitve : Sunlight Readable
 RAM 1GB
 ROM 4GB
 Connectors MiniUSB (OTG) : Czytnik kart SD : SIM : FingerPrint : AudioJack
 GPS Built-in GPS + A-GPS
 Audio Built-in speaker and microphone : AudioJack
 Camera Front 1.3Mpx :  Rear 5Mpx (LED / Autofocus)
 Battery DC 3.7V /  8000mAh Li-Ion
 Keyboard 1x Power on/off

3x  Function keys (default on/off control WIFI, BT, 3G, GPS, speaker/microphone)
 Environment Android 4.0.4
 Modules WLAN 802.11 b/g : Bluetooth 2.1 : GPS+A-GPS

GSM/GPRS/EDGE 900/1800Mhz
WCDMA/HSDPA 2100Mhz
CDMA 2000 1X EVDO 800Mhz
 Dimensions 220 x 132 x 23(mm) - 500g with batteries
 Resistance IP65
 Readers RFID HF 13.56Mhz : 1D/2D by Camera
 Warranty
12 months (optional - 24 months)
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

go top... do góry menu…

Resistance

ip65 wodoodporny kurzoodporny pyloodporny ip65

 Operating -20°C -- +70°C
 Storage -40°C -- +70°C
 Humidity <90%
 Drop 1m

IP65

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

Complete protectionm against contact, Protection from infiltration of dust
6

5

Protection from water projected from a nozzle

go top... do góry menu…

Modules and Wireless Networks

mobipad m770 wcdma wirelles sieć wifi bluetooth kolektor danych

RFID

Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products.

 RFID
  HF 13.56MHz, ISO18000-6C, ISO/IEC 14443 A, ISO/IEC 14443 B, ISO 15693

tablet rfid hf 13.56mhz

Fingerprint

czytnik linii papilarnych mobipad m770Fingerprint security feature that makes our tablet becomes even more personal, allows the security device fingerprint. This is possible by using a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important and confidential data and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to effectively protect their data.

Modules

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal CM770 WCDMA module adapts automatically to transfer and network coverage.

 WiFi 802.11b/g
 GPS Wbudowany (Accuracy: 10m) + A-GPS
 Bluetooth Bluetooth 2.1
 WCDMA GSM/GPRS/EDGE 900/1800Mhz
  WCDMA/HSDPA 2100Mhz
  CDMA 2000 1X EVDO 800Mhz

rugged tablet 7 wifi bluetooth gps wcdma android  multi-touchThe latest WiFi wireless module operating in 802.11b/g provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

menu… menu

Multi-Touch technology allows you to control user interfaces more than one finger at a time, which improves control MobiPad. Multi-touch devices in contrast to conventional touch screens detect simultaneous touch screen of the 5 locations. Multi-touch is very helpful when web browsing, videos and galleries. New capacitive screen with multi-touch function is even more multimedia capabilities to the user. With support for up to 5 touch points at the same time, you can comfortably use advanced applications.

go top... do góry menu…



Minimalism

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPad problem disappears forever, as it weighs only 500g and its dimensions (22 x 13.2 x 2.3cm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.

 Dimensions 220 x 132 x 23(mm) | (8.7" x 5.2" x 0.9")
 Weight 500g (with battery)

go top... do góry menu…


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 95%
Waterproof: IP65
Weight:
Temperature: Operating temperature: -20°C -- +70°C
Storage temperature: -40°C -- +70°C
Shock: -----
Vibration: -----
Drop: 1 metr
Sand and dust: IP65
1D barcode scanner (reader): 1D/2D by Camera
2D barcode scanner (reader): 1D/2D by Camera
RFID scanner (reader): Yes - HF 13.56MHz, ISO18000-6C, ISO/IEC 14443 A, ISO/IEC 14443 B, ISO 15693
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: No
Dispaly: 7" (1024x600) Capacitive : Sunlight Readable
Brightness: -----
Contrast: -----
Touch screen: Yes - Capacitive : Multi-Toych
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Qualcomm MSM 8225 Dual Core 1.2GHz
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 4GB
Flash Memory:
Battery: DC 3.7V/ 8000mAh Li-Ion
Working time on battery: -----
HotSwap battery: No
Fast battery replacement ability: No
Size: 220 x 132 x 23(mm) - 500g with batteries
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.0.4 (English)
LAN: No
WLAN: Yes - 802.11 b/g
Bluetooth: Yes - Bluetooth 2.1
WAN: GSM/GPRS/EDGE 900/1800Mhz
WCDMA/HSDPA 2100Mhz
CDMA 2000 1X EVDO 800Mhz
GPS: Yes - Built-in + A-GPS
Flash Card Reader: micro SD/TF max. 32GB
CD/DVD: -----
Camera: Yes - Front 2Mpx : Rear 5Mpx (LED Flash : Auto-Focus)
Audio: Built-in Speaker and Microphone : AudioJack
Seciurity: -----
In/Out: MicroUSB (OTG) : SD Card Reader : SIM
Keyboard: OnScreen keyboard
Keys:
1x Power on/off
3x Function Keys (default on/off control WIFI, BT, 3G, GPS, speaker/microphone)
Additional Navigation Devices : -----
Color: czarno-szary
Optional accessories: Hand Strap, Car charger
Other: Charger : miniUSB Cable


CURRENT PRICE
2183.74 € Net
2686.00€ Gross
