Industrial MiniPC mBOX-T3217UC4 i3 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-minipc-mbox-t3217uc4-i3-v.2-produkt-86865.html

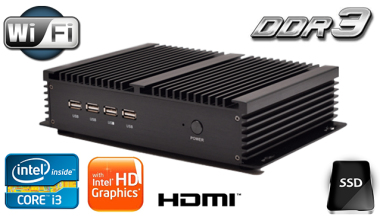

Industrial MiniPC mBOX-T3217UC4 i3 v.2

Przemys³owy MiniPC mBOX-T3217UC4 i3



Industrial MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

mBOX-T3217UC4 i3 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimension are 215 (W) x153 (L) x56 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.0 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics 4000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB SSD.

Przemys³owy MiniPC mBOX-T3217UC4 i3
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel 82574L and WiFi module allow connection to the network. The computer is equipped with: two LAN port, four COM ports (RS232), one HDMI port, one VGA output, four USB 2.0, four USB 3.0, one way audio, one microphone input.

Two independent network cards Intel 82574L
The computer can use two network cards for different purposes - it can be very practical - for example - when one card is responsible for the Internet connection, and the other keeps the connection of devices in the factory, warehouse, shop, supermarket and even in bank that should not have its own connection to the Internet.

Przemys³owy MiniPC mBOX-T3217UC4 i3

1. Power ON/OFF

2. 4x USB 2.0


Przemys³owy MiniPC mBOX-T3217UC4 i3

1. 2x WiFi
   5. 2x RJ-45
2. 4x COM(RS232)
   6. 1x VGA
3. Audio/Mic
   7. 1x HDMI
4. 4x USB 3.0
   8. DC-IN 12V

Przemys³owy MiniPC mBOX-T3217UC4 i3

Cooling

The industrial MiniPC mBOX-T3217UC4 i3 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series mBOX-T3217UC4 i3 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy MiniPC mBOX-T3217UC4 i3 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy MiniPC mBOX-T3217UC4 i3


Areas of use of industrial MiniPC

Digital Engine

Przemys³owy MiniPC mBOX-T3217UC4 i3

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy MiniPC mBOX-T3217UC4 i3
Przemys³owy MiniPC mBOX-T3217UC4 i3

Magazine

Industrial MiniPC mBOX-T3217UC4 i3 by to four COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC mBOX-T3217UC4 i3 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy MiniPC mBOX-T3217UC4 i3

Przemys³owy MiniPC mBOX-T3217UC4 i3



Przemys³owy MiniPC mBOX-T3217UC4 i3



Specifications


    Dimension



   H: 56 mm

   L: 153 mm

   W: 215 mm
   Weight    2,0kg
   Processor
    Intel Core i3-3217U (2x 1.8GHz)
   Chipset
    Intel HM77 express chipset
   RAM Memory
    4GB DDR3 (optional 8GB)
   Graphic Card
    Intel HD Graphics 4000
   Sound Card
    Realtek ALC662
   WLAN
    Intel 82574L
   Connectors

   4x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   4x USB 2.0

   4x USB 3.0

   2x RJ-45

   1x wyj¶cie Audio

   1x HDMI

   1x Mic

   1x VGA
Przemys³owy MiniPC mBOX-T3217UC4 i3


Others: Colour Black, Case
Chipset: Intel HM77
CPU Support: -----
Installed CPU: Intel Core i3-3217U (2x1.8GHz)
Memory Support: 2GB DDR3 (can up to 16GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD Graphics 4000
Storage (HDD) Support: -----
Installed Storage (HDD): 64GB SSD
CD/DVD Drive: -----
LAN: Intel 82574L
Wireless LAN card: Yes
Bluetooth: -----
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: -----
Front Panel (ports): 4x USB 2.0,
Power ON/OFF
Rear Panel (ports): 4x USB 3.0,
1x Audio,
2x RJ-45,
DC-in Jack,
1x HDMI,
1x Mic,
4x COM(RS232),
1x VGA
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 215 x 153 x 56 mm
Weight: 2.0 kg
Expansion: -----
Fanless: No
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃
