Industrial MiniPC mBOX-T30S v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-minipc-mbox-t30s-v.1-produkt-87609.html

Industrial MiniPC mBOX-T30S v.1

Industrial MiniPC mBOX-T30S




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial MiniPC mBOX-T30S
is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 215 (W) x190 (L) x60 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 8GB/32GB/64GB SSD.

Industrial MiniPC mBOX-T30S

go topdo góry   menu… menu


Communication & Connectors

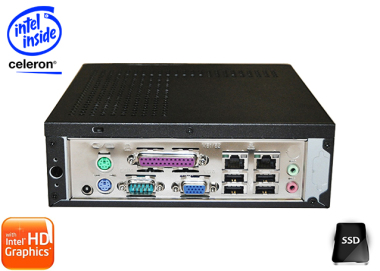

Integrated card - Intel RTL8111DL 100M allow connection to the network. The computer is equipped with: two LAN ports, four USB 2.0 ports, two PS/2 ports, one LPT input, one VGA output, one COM(RS232)  conector, one way audio and one microphone input.


Industrial MiniPC mBOX-T30S

1. Power ON/OFF






Industrial MiniPC mBOX-T30S

1. DC-IN 12V
6. 4x USB 2.0
2. 2x PS/2
7. 1x Mic
3. 1x COM(RS232)
8. 1x Audio
4. 1x LPT
9. 2x RJ-45
5. 1x VGA


Industrial MiniPC mBOX-T30S

Cooling

The industrial fanless Industrial MiniPC mBOX-T30S uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series mBOX-T30S are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets atIndustrial MiniPC mBOX-T30S the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial MiniPC mBOX-T30S


Areas of use of industrial MiniPC

Digital Engine

Industrial MiniPC mBOX-T30S

Trade

Small, less computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial MiniPC mBOX-T30S
Industrial MiniPC mBOX-T30S

Magazine

Industrial MiniPC mBOX-T30S by to USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial MiniPC mBOX-T30S can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial MiniPC mBOX-T30S

Industrial MiniPC mBOX-T30S



Industrial MiniPC mBOX-T30S



Specifications


    Dimension





   H: 60 mm

   L: 190 mm

   W: 215 mm

   Weight    2kg
   Processor
   Intel Celeron 1037U (2x1,8GHz)
   Chipset
   Intel Soc Chipset
   RAM Memory
   2GB DDR3 (1x SODIMM)
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel RTL8111DL 100M Lan
   Connectors

   1x wyjście 12V DC_JACK

   4x USB 2.0

   2x PS/2

   2x RJ-45

   1x wyjście Audio

   1x COM(RS232)

   1x Mic

   1x VGA

   1x LPT

Industrial MiniPC mBOX-T30S


Others: Colour Black, Aluminum
Chipset: Intel Soc Chipset
CPU Support: -----
Installed CPU: Intel Celeron 1037U (2x1,8GHz)
Memory Support: 2GB DDR3 (can up to 16GB)
Installed Memory: 2GB DDR3 SODIMM DUAL CHANNEL
Graphic Card: Intel HD Graphics
Storage (HDD) Support: SSD
Installed Storage (HDD): 8GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111DL 100M Lan
Wireless LAN card: No
Bluetooth: No
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power ON/OFF
Rear Panel (ports): 1x Audio,
2x RJ-45,
1x COM(RS232),
1x LPT,
1x VGA,
4x USB 2.0,
1x Mic,
DC-IN 12V
Power: 12V
Supported OS: Microsoft Windows: XP/7/8/8.1, Linux
Installed OS: -----
Dimensions: 215 x 190 x60 mm
Weight: 2kg
Expansion: -----
Fanless: No
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
955.32 € Net
1175.04€ Gross
