Industrial MiniPC |
Description

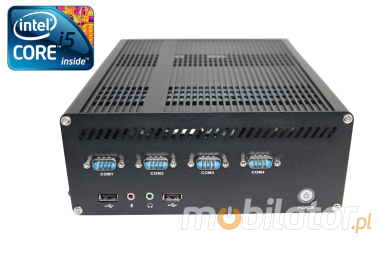

Housing dimension are 211 (W) x254 (L) x85 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD 4000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB SSD or 500GB HDD.
|
|
Communication & Connectors |
Integrated card - Intel RTL8105E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, six COM ports (RS232), eight USB 2.0 ports, one DVI input, one VGA input, one way audio, one microphone input and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one JVGA connector, one LVDS connector. PCI or Peripheral Component Interconnect bus is developed by INTEL in 1992. It has been designed for use adapters that require high-speed transmission. She had to replace the old standard ISA, which she did, because today most motherboards have a few PCI slots. Initially, the PCI card has been designed to supply 5 V, later also introduced 3.3V cards. The PCI 2.3 is valid only 3.3V voltage. There are slots 32-bit (most commonly used) and 64-bit. 64-bit slots have an additional 32 contacts on each side (because they are longer than the 32-bit). Bit 32 has 62 pins on each side, it has two or four slots (depending on the operated voltage), so the terminal on a 60 or 58 on each side. The possibility of installing the card 32-bit 64-bit slot and vice versa. In the latter case, 64-bit card operates as a 32-bit version. It is worth noting that all the PCI slots on the motherboard are connected to a data bus, so one of the cards is slower - it will slow down all the other cards.
LVDS Interface
Two independent network cards Intel RTL8111E
|
Cooling
The industrial MiniPC IBOX-i5M61-X8 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
Others: | Colour Black, Case |
Chipset: | Intel H61 |
CPU Support: | ----- |
Installed CPU: | Intel i5 3470 (4x3.2GHz) |
Memory Support: | 4GB DDR3 (can up to 8GB) |
Installed Memory: | 4GB DDR3 |
Graphic Card: | Intel HD 4000 |
Storage (HDD) Support: | ----- |
Installed Storage (HDD): | 64 GB SSD or 500GB HDD |
CD/DVD Drive: | ----- |
LAN: | Intel RTL8105E 100M Lan |
Wireless LAN card: | Yes |
Bluetooth: | Yes |
3G: | ----- |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |
Front Panel (ports): | 2x USB 2.0, Audio/Mic, 4x COM(RS232) |
Rear Panel (ports): | 6x USB 2.0, 1x Audio, 2x RJ-45, DC-in Jack, 1xVGA, 1x Mic, 1x DVI, 2x COM(RS232) |
Power: | 12V |
Supported OS: | Microsoft Windows: XP/Vista/7 , Linux |
Installed OS: | ----- |
Dimensions: | 211 x 254 x 85 mm |
Weight: | 2,4 kg |
Expansion: | ----- |
Fanless: | ----- |
Humidity: | 0 ~ 95% |
Temp: | -10℃ ~ 60℃ |
IP Norm: | ----- |
Storage temperature: | -20 - 70 ℃ |
CURRENT PRICE |
|
2517.55 € | Net |
3096.59€ | Gross |
