Industrial MiniPC IBOX-i5B85-S120 (WiFi - Bluetooth)
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-minipc-ibox-i5b85-s120-wifi--bluetooth-produkt-86592.html

Industrial MiniPC IBOX-i5B85-S120 (WiFi - Bluetooth)

Przemys³owy Fanless MiniPC IBOX-i5B85-S120




Industrial MiniPC

Industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-i5B85-S120 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 196 (W) x254 (L) x70 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD 4000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB SSD or 500GB HDD.

Przemys³owy Fanless MiniPC IBOX-i5B85-S120

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8105E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, six COM ports (RS232), six USB 2.0 ports, two USB 3.0 ports, one DVI input, one VGA input, one HDMI input, one way audio, one microphone input and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one JVGA connector, one LVDS connector.

LVDS Interface
This is a fast digital interface that is used for many applications requiring: a high resistance to interference electromagnetic, low energy consumption at high data rates. LVDS is used in various applications and industries, including commercial and military applications
.

Two independent network cards Intel RTL8111E
The computer can use two network cards for different purposes - it can be very practical - for example - when one card is responsible for the Internet connection, and the other keeps the connection of devices in the factory, warehouse, shop, supermarket and even in bank that should not have its own connection to the Internet.

Przemys³owy Fanless MiniPC IBOX-i5B85-S120

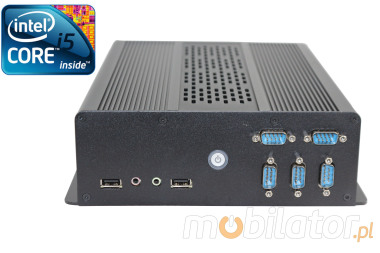

1. 2x USB 2.0
3. Power ON/OFF
2. Audio/Mic
4. 5x COM(RS232)

Przemys³owy Fanless MiniPC IBOX-i5B85-S120

1. 2x USB 3.0
  5. 1x HDMI
9. 1x COM(RS232)
2. 4x USB 2.0
  6. Audio/Mic

3. 1x VGA
  7. 2x RJ-45

4. 1x PS/2
  8. 1x DVI


Przemys³owy fanless MiniPC IBOX-i5B85-S120

Cooling

The industrial MiniPC IBOX-i5B85-S120 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series IBOX-i5B85-S120 are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy Fanless MiniPC IBOX-i5B85-S120 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy Fanless MiniPC IBOX-i5B85-S120

Dual Display

Indrustrial Fanless MiniPC IBOX-i5B85-S120


Areas of use of industrial MiniPC

Digital Engine

Przemys³owy Fanless MiniPC IBOX-i5B85-S120

Trade

Small, computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy fanless MiniPC IBOX-i5B85-S120
Przemys³owy Fanless MiniPC IBOX-i5B85-S120

Magazine

Industrial MiniPC IBOX-i5B85-S120 by to six COM ports (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC IBOX-i5B85-S120 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy Fanless MiniPC IBOX-i5B85-S120

Przemys³owy Fanless MiniPC IBOX-i5B85-S120



Przemys³owy Fanless MiniPC IBOX-i5B85-S120



Specifications


    Dimension





   H: 70 mm

   L: 254 mm

   W: 196 mm

   Weight    2,4kg
   Processor
   Intel i5 4460 (4x 3.2GHz)
   Chipset
   Intel H61 express chipset
   RAM Memory
   4GB DDR3
   Graphic Card
   Intel HD 4000
   Sound Card
   Realtek ALC662
   WLAN
   Intel RTL8111E 1000M Lan
   Connectors

   6x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   6x USB 2.0

   2x USB 3.0

   2x RJ-45

   1x wyj¶cie Audio

   1x Mic

   1x HDMI

   1x DVI

   1x VGA

Przemys³owy Fanless MiniPC IBOX-i5B85-S120


Others: Colour Black, Case
Chipset: Intel B85
CPU Support: -----
Installed CPU: Intel i5 4460 (4x3.2GHz)
Memory Support: 4GB DDR3 (can up to 8GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD 4000
Storage (HDD) Support: -----
Installed Storage (HDD): 64 GB SSD or 500GB HDD
CD/DVD Drive: -----
LAN: Intel RTL8105E 100M Lan
Wireless LAN card: Yes
Bluetooth: Yes
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 2x USB 2.0,
Audio/Mic,
5x COM(RS232)
Rear Panel (ports): 6x USB 2.0,
2x USB 3.0,
1x Audio,
2x RJ-45,
DC-in Jack,
1xVGA,
1x Mic,
1x PS/2,
1x DVI,
1x HDMI,
1x COM(RS232)
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 196 x 254 x 70 mm
Weight: 2,4 kg
Expansion: -----
Fanless: -----
Humidity: 0 ~ 95%
Temp: 0 - 60 ℃
IP Norm: -----
Storage temperature: -15 - 65 ℃


CURRENT PRICE
2651.59 € Net
3261.46€ Gross
