Industrial MiniPC IBOX-i3H81-S100-RS422/485
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-minipc-ibox-i3h81-s100-rs422-485-produkt-86497.html

Industrial MiniPC IBOX-i3H81-S100-RS422/485

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485



Industrial MiniPC

Industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-i3D61-S100-RS422/485 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimension are 196 (W) x204 (L) x70 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD 4000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 64GB SSD to 256GB SSD (from 320GB to 1TB HDD).

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8105E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, four COM ports (RS232), two COM ports (RS422/485) - optional can be six COM ports (RS232), four USB 2.0 ports, two USB 3.0 ports, one HDMI input, one VGA input, one way audio, one microphone input and connectors built into the motherboard: two USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one VGA connector, one LVDS connector.

LVDS Interface
This is a fast digital interface that is used for many applications requiring: a high resistance to interference electromagnetic, low energy consumption at high data rates. LVDS is used in various applications and industries, including commercial and military applications.

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485

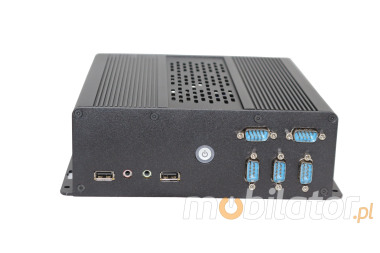

1. 2x USB 2.0
 4. 3x COM(RS232)
2. Audio/Mic
 4. 2x COM(RS422/485)
3. Power ON/OFF

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485

1. 2x USB 2.0
   5. 1x RJ-45
2. 1x HDMI
   6. Audio/Mic
3. 1x VGA
   7. DC-IN 12V
4. 2x USB 3.0
   8. 1x COM(RS232)

Przemys³owy fanless MiniPC IBOX-i3D61-S100-RS422/485

Cooling

The industrial MiniPC IBOX-i3D61-S100-RS422/485 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… do góry   menu… menu

Application

Industrial MiniPC Series IBOX-i3D61-S100-RS422/485 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485

Dual Display

Indrustrial Fanless MiniPC IBOX-i3D61-S100-RS422/485


Areas of use of industrial MiniPC

Digital Engine

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485

Trade

Small, computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy fanless MiniPC IBOX-i3D61-S100-RS422/485
Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485

Magazine

Industrial MiniPC IBOX-i3D61-S100-RS422/485 by to four COM ports (RS232) and two COM ports (RS422/485) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC IBOX-i3D61-S100-RS422/485 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485

Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485



Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485



Specifications


    Dimension



   H: 70 mm

   L: 204 mm

   W: 196 mm
   Weight    2,4kg
   Processor
    Intel i3 3240 (2x 3.4GHz)
   Chipset
    Intel H61 express chipset
   RAM Memory
    4GB DDR3
   Graphic Card
    Intel HD 4000
   Sound Card
    Realtek ALC662
   WLAN
    Intel RTL8111E 1000M Lan
   Connectors

   4x COM(RS232)

   2x COM(RS422/485)

   1x wyj¶cie 12V DC_JACK

   4x USB 2.0

   2x USB 3.0

   1x RJ-45

   1x wyj¶cie Audio

   1x Mic

   1x HDMI

   1x VGA
Przemys³owy Fanless MiniPC IBOX-i3D61-S100-RS422/485


Others: Colour Black, Case
Chipset: Intel H81
CPU Support: -----
Installed CPU: Intel i3 4130 (2x3.4GHz)
Memory Support: 4GB DDR3 (can up to 8GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD 4000
Storage (HDD) Support: -----
Installed Storage (HDD): 64 GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8105E 100M Lan
Wireless LAN card: No (opctional Yes)
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 2x USB 2.0,
Audio/Mic,
3x COM(RS232),
2x COM(RS422/485)
Rear Panel (ports): 2x USB 2.0,
2x USB 3.0,
1x Audio,
1x RJ-45,
DC-in Jack,
1xVGA,
1x Mic,
1x HDMI,
1x COM(RS232)
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 196 x 204 x 70 mm
Weight: 2,4 kg
Expansion: WiFi
Fanless: -----
Humidity: 0 ~ 95%
Temp: -10℃ ~ 60℃
IP Norm: -----
Storage temperature: -20 - 70 ℃


CURRENT PRICE
2162.17 € Net
2659.47€ Gross
