Industrial MiniPC |
Description
Housing dimension are 211 (W) x204 (L) x85 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB SSD or 500GB HDD.
|
|
Communication & Connectors |
Integrated card - Intel RTL8105E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, five COM ports (RS232), six USB 2.0 ports, one LPT input, one VGA input, one way audio, one microphone input and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one JVGA connector, one LVDS connector.
LVDS Interface
Two independent network cards Intel RTL8111E
|
Cooling
The industrial MiniPC IBOX-H25-X7 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
Others: | Colour Black, Case |
Chipset: | Intel NM70 |
CPU Support: | ----- |
Installed CPU: | Intel Atom D2550 (2x1.86GHz) |
Memory Support: | 2GB DDR3 (can up to 8GB) |
Installed Memory: | 4GB DDR3 |
Graphic Card: | Intel GMA3650 |
Storage (HDD) Support: | ----- |
Installed Storage (HDD): | 64 GB SSD or 500GB HDD |
CD/DVD Drive: | ----- |
LAN: | Intel RTL8105E 100M Lan |
Wireless LAN card: | No (opctional Yes) |
Bluetooth: | ----- |
3G: | ----- |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |
Front Panel (ports): | 2x USB 2.0, Audio/Mic, 5x COM(RS232) |

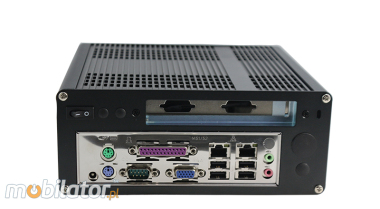

Rear Panel (ports): | 4x USB 2.0, 1x Audio, 2x RJ-45, DC-in Jack, 1xVGA, 1x Mic, 1x LPT, 1x COM(RS232) |
Power: | 12V |
Supported OS: | Microsoft Windows: XP/Vista/7 , Linux |
Installed OS: | ----- |
Dimensions: | 211 x 204 x 45 mm |
Weight: | 2,4 kg |
Expansion: | WiFi |
Fanless: | ----- |
Humidity: | 0 ~ 95% |
Temp: | -10℃ ~ 60℃ |
IP Norm: | ----- |
Storage temperature: | -20 - 70 ℃ |
CURRENT PRICE |
|
1319.27 € | Net |
1622.70€ | Gross |
