Industrial Computer Fanless MiniPC IBOX-D2550F v.1

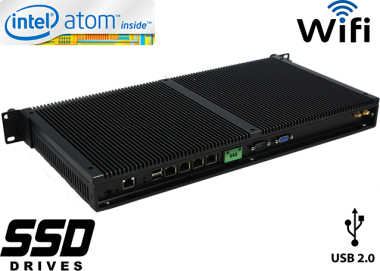

Industrial Computer Fanless MiniPC IBOX-D2550F




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-D2550F is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimensions are 300 (W) x190 (L) x48 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 32GB SSD to 64GB SSD.

Industrial Computer Fanless MiniPC IBOX-D2550F

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel 82583V 1000M Lan and WiFi module allows connection to the network. The computer is equipped with: four LAN ports, one COM port (RS232), one VGA output, one RJ-45 COM port, two USB 2.0 ports and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one CPUFAN, one SYSFAN connector.

Industrial Computer Fanless MiniPC IBOX-D2550F

Industrial Computer Fanless MiniPC IBOX-D2550F

1. DC-IN 12V
5. Power 3 pin
2. 1x RJ-45 COM
6. 1x COM(RS232)
3. 2x USB 2.0
7. 1x VGA
4. 4x RJ-45
8. 2x antena WiFi

Industrial Computer Fanless MiniPC IBOX-D2550F

Cooling

The industrial fanless MiniPC IBOX-D2550C uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series IBOX-D2550F are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Computer Fanless MiniPC IBOX-D2550F of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-D2550F



Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC IBOX-D2550F

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Computer Fanless MiniPC IBOX-D2550F
Industrial Computer Fanless MiniPC IBOX-D2550F

Magazine

Industrial fanless MiniPC IBOX-D2550F by up to two COM can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-D2550F can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-D2550F

Industrial Computer Fanless MiniPC IBOX-D2550F

Industrial Computer Fanless MiniPC IBOX-D2550F



Specifications


    Dimension





   H: 48 mm

   L: 190 mm

   W: 300 mm

   Weight    3,6kg
   Processor
   Intel Atom Dual Core D2550 (2x 1.86GHz)
   Chipset
   Intel NM10 express chipset
   RAM Memory
   4GB DDR3
   Graphic Card
   Intel GMA3650
   Sound Card
   Realtek ALC662
   WLAN
   4x Intel 82583V 1000M Lan
   Connectors

   1x COM(RS232)

   1x wyjście 12V DC_JACK

   1x RJ-45 COM

   2x USB2.0

   4x RJ-45

   1x Power 3-pin

   1x VGA

Industrial Computer Fanless MiniPC IBOX-D2550F


Others: Colour Black, Case
Chipset: Intel NM10
CPU Support: -----
Installed CPU: Intel Atom Dual Core D2550 (2x1.86GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel GMA3650
Storage (HDD) Support: -----
Installed Storage (HDD): 32 GB SSD
CD/DVD Drive: -----
LAN: Intel 82583V 1000M Lan
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): Power ON/OFF
Rear Panel (ports): 2x USB 2.0,
4x RJ-45,
DC-in Jack,
1x RJ-45 COM,
1x COM(RS232),
1x VGA,
1x Power 3-pin
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1, Linux
Installed OS: -----
Dimensions: 300 x 190 x 48 mm
Weight: 3.6 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10℃ ~ 60℃
IP Norm: -----
Storage temperature: -20 - 70 ℃
