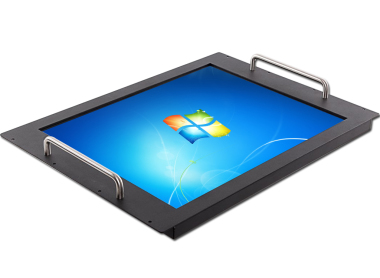

Industial RACK MOUNT Touch PC CCETouch CT19-PC-High
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-panelowy-rack-mount--ccetouch-ct19-pc-high-produkt-86874.html

Industial RACK MOUNT Touch PC CCETouch CT19-PC-High

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

(June 2014) Industrial panel PCs CCETouch company are a new distribution segment on Mobilator.pl. CCETouch company has achieved an excellent reputation as a manufacturer of industrial touch panel computers. Due to the high position of products in the segment of high-tech has won the confidence of many customers around the world.

CCETouch Industrial PC Touch

Industrial Panel PC

Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology.

Description


Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

CCETouch

Industial RACK MOUNT Touch PC CCETouch CT19-PC-High






Industial Touch PC CCETouch

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)


Memory: 2GB RAM DDR3 SODIMM


Disk: 32GB SSD / 320GB HDD (option)


System: Windows 8.1/8 / Windows 7 / Windows XP / Linux


Screen: 19" / 1280x1024 / 4:3 / 5 - Wire Resistive



Expansion cards:
None



Detailed specification of the configuration available in the "Technical data"



Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel® HD video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

Dimensions:

Housing dimension are 481 (W) x 356 (L) x 62 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 7.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Cooling:

Industrial Touch PC CT19-PC  is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

The industrial fanless RACK MOUNT Touch PC CCETouch CT19-PC uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled.
go top… do góry   menu… menu

Communication & Connections

Communication:

Industial RACK MOUNT Touch PC CCETouch CT19-PC standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Connector:

The integrated network card  Intel RTL8111G 10/100/1000 Mbps LAN 2xRJ-45, WIFI allows you to connect the device to the network. The computer is equipped with: two LAN connector, three ports COM (RS232), one port COM (RS485), one VGA, one HDMI output, two USB 2.0 ports, one USB 3.0 port, one audio input, one  input MIC, connector DC-in.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Screen

Industial RACK MOUNT Touch PC CCETouch CT19-PChas a water-resistant front panel and scratch resistant LCD screen with 3H hardness. With 1280x1024 resolution and high brightness of 300 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT



Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside.  The second important layer is either made of glass or hard plastic and is also coated with ITO.  Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another.  When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

5-WIRE RESISTIVE SCREENS

The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

Application

Applicable standards and tests carried out.

Industial RACK MOUNT Touch PC CCETouch CT19-PC is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP54 front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. CT19-PC is the best solution for extreme applications in dust or moisture.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

 Operating Temp
0-60 °C
 Operating Humidity 5%-95%
 Dust IP5x(dust)
 Water IPx4(drops of water)

Resistance IP54 - Front Panel

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Industrial Panel PCs with CCETouch companies are based on the efficient quad-core processors and high-quality components.Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Areas of use of industrial panel computers.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Trade

Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT
Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 9V - 30V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT

go top… do góry   menu… menu

Versions


  RACK MOUNT CT19-PC RACK MOUNT CT19-3G-PC
RACK MOUNT CT19-PC-High
 Intel® Celeron™ J1900
Wi-Fi
3G + GPS - -
2 x RJ-45
9-30V DC-IN

go top… do góry   menu… menu

Specifications


   Display

   Screen: 19"

   Resolution: 1280 x 1024

   Type: 5 - Wire Resistive
   Resistance IP

   Front Panel: IP 54

   Communication

   Wi-Fi

   3G (option)

   GPS (option)

   Dimensions





   Height:  356mm

   Width: 62 mm

   Length: 481 mm

   Weight    7.5 kg
   Processor    Intel® Celeron™ J1900 (4 x 2.0 GHz)
   Chipset
   Intel Bay trail
   Memory RAM
   2GB DDR3 (optional up to 6GB)
   Graphics Card
   Intel® HD Graphics
   Sound Card
   Realtek ALC662
   Network Card
   Intel RTL8111G 1000M Lan
   Ports & interfaces

   3 x COM (RS-232)

   1 x COM (RS-485)

   2 x USB 2.0

   1 x USB 3.0

   2 x RJ-45

   1 x Audio

   1 x Mic

   1 x HDMI

   1 x VGA

   1 x DC-in

Industial RACK MOUNT Touch PC CCETouch CT19-PC Przemys³owy Komputer Panelowy RACK MOUNT - CCETouch CT19-PC Norma odporno¶ci IP54 Przemys³owy komputer panelowy Ekran rezystancyjny 5 wire resistive wy¶wietlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM RACK MOUNT


Screen size: 19"
Resolution: 1280 x 1024
Aspect ratio: 4:3
Touchscreen: Resistive Type 5-Wire
Chipset: Intel Bay trail
CPU Support: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Installed CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Memory Support: up to 6GB (max) DDR3 SODIMM
Installed Memory: 4GB DDR3
Graphic Card: Intel® HD Graphics
Audio: Realtek ALC662, 6 Channel High Definition Audio Codec 2x 2W loudspeaker
Storage (HDD) Support: 32 - 512 GB SSD / 320 - 1TB HDD
Installed Storage (HDD): 128 GB SSD
CD/DVD Drive: -----
LAN: Realtek RTL 8111E, 10/100/1000Mbit 1 x RJ45 Port / 10/100/1000Mbit 2 x RJ45 Port(option procesorN2600)
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
GPS: -----
TV Tuner: -----
Watch Dog Timer: -----
Ports - front panel: -----
Ports - rear panel: 1 x VGA
1 x HDMI
2 x USB 2.0
1 x USB 3.0
2 x RJ-45 LAN
3 x RS-232 COM
1 x RS-485 COM
1 x DC-in
1 x MIC
1 x Audio
1 x WIFI antenna
Ports - left panel: -----
Ports - right panel: -----
Power: 9-30V
Supported OS: Microsoft Windows: XP/Vista/7/8/8.1; Linux
Installed OS: -----
Dimensions: 481 x 356 x 62 mm
Weight: 7.5 kg
Expansion: -----
Fanless: Yes
Humidity: 5%~ 95%
Temp: 0°C ~ 60°C
Storage Temp: -15°C ~ 70°C
IP Norm: Front panel
IP Level (back panel): -----
IP Level (front panel): IP 54
Dual display: Yes
Response time touch-panel (ms): < 10
Contrast Ratio: 1000:1
Brightness: 300 cd/m2
Viewing Angle: 150;150
Backlight MTBF: LED/40,000 h
Color Resolution: 16,7 M
Surface hardness (display): 3H
Touch Life(contacts): >10.000.000 times
Housing material: Aluminum
Mounting VESA: Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Folding Bracket (for office type working): No (optional)
Power Consumption: 32 W
Others: -----
Anti-vibration: -----
Anti-shock: -----
RFID scanner (reader): -----
Barcode reader:


CURRENT PRICE
3539.28 € Net
4353.31€ Gross
