Industial Touch PC CCETouch CT17-PC-IP65-High
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-panelowy--ccetouch-ct17-pc-ip65-high-produkt-86451.html

Industial Touch PC CCETouch CT17-PC-IP65-High

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

(June 2014) Industrial panel PCs CCETouch company are a new distribution segment on Mobilator.pl. CCETouch company has achieved an excellent reputation as a manufacturer of industrial touch panel computers. Due to the high position of products in the segment of high-tech has won the confidence of many customers around the world.

CCETouch Industrial PC Touch

Industrial Panel PC

Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology.



Description


Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

CCETouch

Industial Touch CT17-PC-IP65-High






Industial Touch PC CCETouch CT08-PC Komputer panelowy Panel PC

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)


Memory: 4GB RAM DDRIII SODIMM


Disk: 128GB SSD


System: Windows 8.1/8 / Windows 7 / Windows XP / Linux


Screen: 17" / 1280x1024 / 4:3 / 5 - Wire Resistive



Expansion cards:
none



Detailed specification of the configuration available in the "Technical data"


Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel® HD video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

Dimensions:

Housing dimension are 397 (W) x 325 (L) x 85 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 6.25kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Cooling:

Industrial Touch PC CT17-PC-IP65  is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

The industrial fanless Panel PC CT17-PC-IP65 uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled.

go top… do góry   menu… menu

Communication & Connections

Communication:

Industrial Panel PC CCETouch CT17-PC-IP65 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Connector:

Integrated Intel NIC RTL8111E LAN 1xRJ 1000M-45, WiFi allows you to connect the device to the network. The computer is equipped with: one LAN connector, one COM port (RS232), one VGA output, two USB 2.0 ports (optional USB 3.0) and a power switch (screwed). Optionally, this model can also select 1xCOM port (RS232) or 2xUSB.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

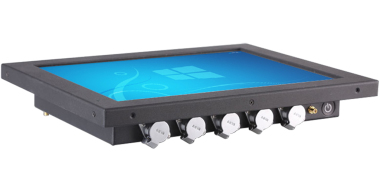

Panel PC CT17-PC-IP65 is equipped with 5 specialized aluminum connectors which are attached all the necessary ports and interfaces. Ports fitted with a special 7 pin connector, which provides excellent quality.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows


Screen

Industrial Touch PC CT17-PC-IP65 has a water-resistant front panel and scratch resistant LCD screen with 3H hardness. With 1280x1024 resolution and high brightness of 250 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows



Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside.  The second important layer is either made of glass or hard plastic and is also coated with ITO.  Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another.  When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

5-WIRE RESISTIVE SCREENS

The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

Application

Applicable standards and tests carried out.

Panel PC CT17-PC-IP65 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial aluminum IP65 housing protects the display from the outside against mechanical damage, drops of water, sand and dust. CT17-PC-IP65 is the best solution for extreme applications in dust or moisture.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

 Operating Temp
0-60 °C
 Operating Humidity 5%-95%
 Dust IP6x(dust)
 Water IPx5(drops of water)

Resistance IP65

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Industrial Panel PCs with CCETouch companies are based on the efficient quad-core processors and high-quality components.Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Areas of use of industrial panel computers.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Trade

Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows
Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 9V - 30V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows

go top… do góry   menu… menu

Versions

  CT17-PC-IP65
CT17-PC-IP65-3G
CT17-PC-IP65-High
Intel® Celeron™ J1900

Wi-Fi
3G + GPS - -
9-30V DC-IN

go top… do góry   menu… menu

Specifications


   Display

   Screen: 17"

   Resolution: 1280 x 1024

   Type: 5 - Wire Resistive
   Resistance IP

   IP 65

   Communication

   Wi-FI

   3G (option)

   GPS (option)

   Dimensions





   Height:  85 mm

   Width: 325 mm

   Length: 397 mm

   Weight    6.25 kg
   Processor    Intel® Celeron™ J1900 (4 x 2.0 GHz)
   Chipset
   Intel Bay trail
   Memory RAM
   4GB DDR3 (optional up to 6GB)
   Graphics Card
   Intel® HD Graphics
   Sound Card
   Realtek ALC662
   Network Card
   Intel RTL8111E 1000M Lan
   Ports & interfaces

   1 x COM(RS232)

   2 x USB2.0 (USB 3.0 - option)

   1 x RJ-45

   1 x VGA

   1 x Power Switch(screwable)

   Option:

   2 x USB 2.0

   1 x RS232
Industial Touch PC CCETouch CT17-PC Komputer panelowy Panel PC Norma odporności IP65 Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows


Screen size: 17"
Resolution: 1280 x 1024
Aspect ratio: 4:3
Touchscreen: Resistive Type 5-Wire
Chipset: Intel Bay trail
CPU Support: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Installed CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Memory Support: do 6GB (max) DDR3 SODIMM
Installed Memory: 4GB DDR3
Graphic Card: Intel® HD Graphics
Audio: Realtek ALC662, 5.1 Channel High Definition Audio Codec 2 x 2W loudspeaker
Storage (HDD) Support: 32 - 512 GB SSD / 320 - 1TB HDD
Installed Storage (HDD): 128 GB SSD
CD/DVD Drive: -----
LAN: Realtek RTL 8111E, 10/100/1000Mbit 1 x RJ45 Port
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
GPS: -----
TV Tuner: -----
Watch Dog Timer: -----
Ports - front panel: -----
Ports - rear panel: 1 x VGA; 2 x USB 2.0; 1 x RJ-45 LAN; 1 x RS-232 COM; 1 x Power Switch; 1 x WIFI antenna; (Option: 2 x USB 2.0 or 1 x RS232)
Ports - left panel: -----
Ports - right panel: -----
Power: 9-30V
Supported OS: Microsoft Windows: XP/Vista/7/8/8.1; Linux
Installed OS: -----
Dimensions: 397 x 325 x 85 mm
Weight: 6.25 kg
Expansion: -----
Fanless: Yes
Humidity: 5%~ 95%
Temp: 0°C ~ 60°C
Storage Temp: -15°C ~ 70°C
IP Norm: IP 65
IP Level (back panel): IP 65
IP Level (front panel): IP 65
Dual display: No
Response time touch-panel (ms): 2.6
Contrast Ratio: 800:1
Brightness: 250 cd/m2
Viewing Angle: 160;160
Backlight MTBF: LED/40,000 h
Color Resolution: 262 K
Surface hardness (display): 3H
Touch Life(contacts): >35.000.000 times
Housing material: Aluminum
Mounting VESA: Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Folding Bracket (for office type working): No (optional)
Power Consumption: 32 W
Others: -----
Anti-vibration: -----
Anti-shock: -----
RFID scanner (reader): -----
Barcode reader:


CURRENT PRICE
4079.69 € Net
5018.02€ Gross
