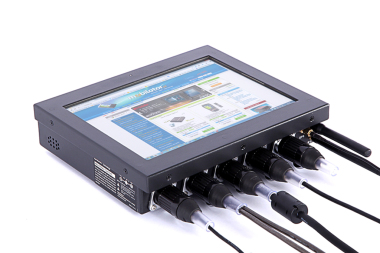

Industrial Panel PC Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology. |
|
Description
Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron™ processor family, Intel chipsets and DDR3 memory. Integrated Intel® HD video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).
Dimensions:
Housing dimension are 255 (W) x 216 (L) x 61 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Cooling: Industrial Touch PC CCETouch CT10.4-PC-IP65 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week. |
Communication & Connections |
Communication: Industrial Panel PC CCETouch CT10.4-PC-IP65 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS. With 3G module panel PC will have, wherever access to the resources of the Internet without restrictions. The GPS module installed in PanelPC enables user exact position location on the map, what extends PanelPC application to all types of vehicles.
Connector: Integrated Intel NIC RTL8111E LAN 1xRJ 1000M-45, WiFi allows you to connect the device to the network. The computer is equipped with: one LAN connector, one COM port (RS232), one VGA output, two USB 2.0 ports (optional USB 3.0) and a power switch.
Panel PC CCETouch CT10.4-PC-IP65 is equipped with special aluminum connectors are attached to which all the necessary ports and interfaces. Ports fixed with a special socket with pins that provide excellent quality.
|
|
Screen size: | 10.4" |
Resolution: | 1024 x 768 |
Aspect ratio: | 4:3 |
Touchscreen: | Resistive Type 5-Wire |
Chipset: | Intel Bay trail |
CPU Support: | Intel® Celeron™ J1900 (4 x 2.0 GHz) |
Installed CPU: | Intel® Celeron™ J1900 (4 x 2.0 GHz) |
Memory Support: | do 6GB (max) DDR3 SODIMM |
Installed Memory: | 2GB DDR3 |
Graphic Card: | Intel® HD Graphics |
Audio: | Realtek ALC662, 5.1 Channel High Definition Audio Codec 2 x 2W loudspeaker |
Storage (HDD) Support: | 32 - 512 GB SSD / 320 - 1TB HDD |
Installed Storage (HDD): | 32 GB SSD / 320 GB HDD (option) |
CD/DVD Drive: | ----- |
LAN: | Realtek RTL 8111E, 10/100/1000Mbit 1 x RJ45 Port |
Wireless LAN card: | Yes |
Bluetooth: | ----- |
3G: | Yes |
4G LTE: | |
GPS: | Yes |
TV Tuner: | ----- |
Watch Dog Timer: | ----- |
Ports - front panel: | ----- |
Ports - rear panel: | 1 x VGA; 2 x USB 2.0; 1 x RJ-45 LAN; 1 x RS-232 COM; 1 x Power IN; 1 x WIFI antenna; |
Ports - left panel: | ----- |
Ports - right panel: | ----- |
Power: | 9-30V |
Supported OS: | Microsoft Windows: XP/Vista/7/8/8.1; Linux |
Installed OS: | ----- |
Dimensions: | 255 x 216 x 61 mm |
Weight: | 4 kg |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 5%~ 95% |
Temp: | 0°C ~ 60°C |
Storage Temp: | -15°C ~ 70°C |
IP Norm: | IP 65 |
IP Level (back panel): | IP 65 |
IP Level (front panel): | IP 65 |
Dual display: | No |
Response time touch-panel (ms): | < 10 |
Contrast Ratio: | 500:1 |
Brightness: | 1000+ cd/m2 |
Viewing Angle: | 150;130 |
Backlight MTBF: | LCD/40,000 h |
Color Resolution: | 16,194,227 |
Surface hardness (display): | 3H |
Touch Life(contacts): | >35.000.000 times |
Housing material: | Aluminum |
Mounting VESA: | Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
Folding Bracket (for office type working): | No (optional) |
Power Consumption: | 32 W |
Others: | ----- |
Anti-vibration: | ----- |
Anti-shock: | ----- |
RFID scanner (reader): | ----- |
Barcode reader: |
