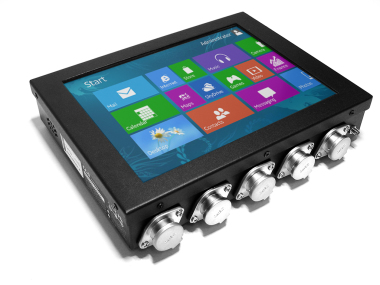

Industrial Panel PC Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology. |
|
Description
Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron™ processor family, Intel chipsets and DDR3 memory. Integrated Intel® HD video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).
Dimensions:
Housing dimension are 247 (W) x 194 (L) x 53 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.75kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Cooling: Industrial Touch PC CT10-PC-IP65 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week. |
Communication & Connections |
Communication: Industrial Panel PC CCETouch CT10-PC-IP65 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS.
Connector: Integrated Intel NIC 1xRJ RTL8111E 1000M-45 LAN, WIFI allows you to connect the device to the network. Your computer is equipped with: one LAN interface in one port Audio / Mic, one VGA output, two USB 2.0 ports (optional USB 3.0) and the power port.
Panel PC CT10-PC-IP65 is equipped with a specialized aluminum connectors which are attached all the necessary ports and interfaces. Ports fitted with a special 7 pin connector, which provides excellent quality.
|
|
Screen size: | 10" |
Resolution: | 1024 x 768 |
Aspect ratio: | 4:3 |
Touchscreen: | Resistive Type 5-Wire |
Chipset: | Intel Bay trail |
CPU Support: | Intel® Celeron™ N2930 (2M Cache, 4x1.83 GHz) |
Installed CPU: | Intel® Celeron™ N2930 (2M Cache, 4x1.83 GHz) |
Memory Support: | do 6GB (max) DDR3 SODIMM |
Installed Memory: | 4GB DDR3 |
Graphic Card: | Intel® HD Graphics |
Audio: | Realtek ALC662, 5.1 Channel High Definition Audio Codec 2 x 2W loudspeaker |
Storage (HDD) Support: | 32 - 512 GB SSD / 320 - 1TB HDD |
Installed Storage (HDD): | 128 GB SSD |
CD/DVD Drive: | ----- |
LAN: | Realtek RTL 8111E, 10/100/1000Mbit 1 x RJ45 Port |
Wireless LAN card: | Yes |
Bluetooth: | ----- |
3G: | ----- |
4G LTE: | |
GPS: | ----- |
TV Tuner: | ----- |
Watch Dog Timer: | ----- |
Ports - front panel: | ----- |
Ports - rear panel: | 1 x VGA; 2 x USB 2.0; 1 x RJ-45 LAN; 1 x Audio / Mic; 1 x Power Switch; 1 x WIFI antenna; |
Ports - left panel: | ----- |
Ports - right panel: | ----- |
Power: | 9-30V |
Supported OS: | Microsoft Windows: XP/Vista/7/8/8.1; Linux |
Installed OS: | ----- |
Dimensions: | 243 x 176 x 51 mm |
Weight: | 3.75 kg |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 5%~ 95% |
Temp: | 0°C ~ 60°C |
Storage Temp: | -15°C ~ 70°C |
IP Norm: | IP 65 |
IP Level (back panel): | IP 65 |
IP Level (front panel): | IP 65 |
Dual display: | No |
Response time touch-panel (ms): | 2.6 |
Contrast Ratio: | 600:1 |
Brightness: | 250 cd/m2 |
Viewing Angle: | 150;130 |
Backlight MTBF: | LED/40,000 h |
Color Resolution: | 262 K |
Surface hardness (display): | 3H |
Touch Life(contacts): | >35.000.000 times |
Housing material: | Aluminum |
Mounting VESA: | Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
Folding Bracket (for office type working): | No (optional) |
Power Consumption: | 32 W |
Others: | ----- |
Anti-vibration: | ----- |
Anti-shock: | ----- |
RFID scanner (reader): | ----- |
Barcode reader: |
CURRENT PRICE |
|
3624.14 € | Net |
4457.69€ | Gross |
