Industrial Computer Fanless MiniPC Nuc IBOX-700 v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-fanless-minipc-nuc-ibox-700-v.3-produkt-88622.html

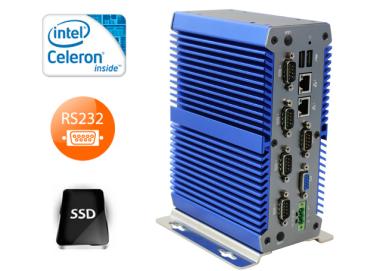

Industrial Computer Fanless MiniPC Nuc IBOX-700 v.3

Industrial Computer Fanless MiniPC Nuc IBOX-700




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Nuc IBOX-700 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimensions are 200 (W) x 234 (L) x65 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD

Industrial Computer Fanless MiniPC Nuc IBOX-700

go topdo góry   menu… menu


Communication & Connectors

Integrated cards - Intel 82583V allows connection to the network. The computer is equipped with: two LAN ports, one VGA port, one Audio input, four COM ports, one GPIO interface, four USB 2.0 ports, and a built-in connector on the motherboard: one SATA  ports and one Mini-PCIE connectors.



BACK:



Industrial Computer Fanless MiniPC Nuc IBOX-700



FRONT:



Industrial Computer Fanless MiniPC Nuc IBOX-700



Industrial Computer Fanless MiniPC Nuc IBOX-700


Industrial Computer Fanless MiniPC Nuc IBOX-700

Cooling

The industrial fanless  MiniPC Nuc IBOX-700 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go topdo góry   menu… menu

Application

      Industrial  MiniPC Nuc IBOX-700 are based on high-performance Industrial Computer Fanless MiniPC Nuc IBOX-700two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC Nuc IBOX-700


Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC Nuc IBOX-700

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Computer Fanless MiniPC Nuc IBOX-700
Industrial Computer Fanless MiniPC Nuc IBOX-700

Magazine

Industrial fanless  MiniPC Nuc IBOX-700 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC Nuc IBOX-700 can be used on transport market, in cars, through adapting him to operate with a supply 9-36V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC Nuc IBOX-700

Industrial Computer Fanless MiniPC Nuc IBOX-700



Specifications


    Dimension





   H: 72 mm

   L: 180 mm

   W:160 mm

   Processor
   Intel Celeron1037U Dual Core(2x1.8GHz)
   Chipset
   Intel express chipset
   RAM Memory
   2GB DDR3
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   2x Intel 82583V
   Connectors

    1x 9-36V DC

    4x USB 2.0

    2x RJ-45 LAN

    2x VGA

    1x GPIO

    1x Audio

    4x COM

Industrial Computer Fanless MiniPC Nuc IBOX-700


Others: -----
Chipset: Intel NM70 express chipset
CPU Support: -----
Installed CPU: Intel Celeron Dual Core 1037U ( 2x 1.8Ghz)
Memory Support: DDR3 (max. 8GB)
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 128 GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111E 1000M Lan
Wireless LAN card: -----
Bluetooth: -----
3G: Nie
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 2x USB2.0, Power ON/OFF, 1x Audio, 1x Mic
Rear Panel (ports): 2x USB2.0
4x COM RS232 (optionally COM1: RS422/485)
2x LAN
DC-IN 9-36V
1x VGA
1xGPIO
Power: 9-36V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 180 x 160 x 72 mm
Weight: ~1.5kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10 ~60℃
IP Norm: -----
Storage temperature: 0 ~ 60℃


CURRENT PRICE
1895.28 € Net
2331.19€ Gross
