Industrial Fanless |
Description

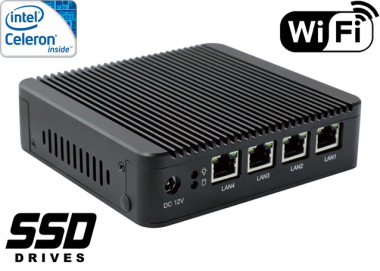

Housing dimensions are 134 (W) x124 (L) x36 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD.
|
|
Communication & Connectors |
Integrated card - Intel WG82583 1000M Lan and WiFi module allows connection to the network. The computer is equipped with: four LAN ports, one VGA port, two USB 2.0 ports and a built-in connector on the motherboard: one Mini-SATA connector, one SATA port and one Mini-PCIE connector.
|
Cooling
The industrial fanless MiniPC IBOX-501 N10-A uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
Others: | Colour Black/Silver |
Chipset: | Intel express chipset |
CPU Support: | ----- |
Installed CPU: | Intel Celeron Quad Core J1900 (4x2GHz) |
Memory Support: | 2GB DDR3 (can up to 8GB) |
Installed Memory: | 4GB DDR3 |
Graphic Card: | Intel HD Graphics |
Storage (HDD) Support: | ----- |
Installed Storage (HDD): | 32 GB SSD |
CD/DVD Drive: | ----- |
LAN: | Intel WG82583 1000M Lan |
Wireless LAN card: | Yes |
Bluetooth: | ----- |
3G: | ----- |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |
Front Panel (ports): | 2x USB 2.0, 1x VGA, Power ON/OFF |
Rear Panel (ports): | DC-IN 12V, 4x RJ-45 LAN |
Power: | 12V |
Supported OS: | Microsoft Windows: 7/8/8.1/10, Linux |
Installed OS: | ----- |
Dimensions: | 134 x 124 x 36 mm |
Weight: | 1.6 kg |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 0 ~ 95% |
Temp: | -20 ~60℃ |
IP Norm: | ----- |
Storage temperature: | -20 ~ 60℃ |
