Industrial Computer Fanless MiniPC Nuc IBOX-NS-1U6L v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-fanless-minipc-ibox-ns-1u6l-v.3-produkt-88627.html

Industrial Computer Fanless MiniPC Nuc IBOX-NS-1U6L v.3

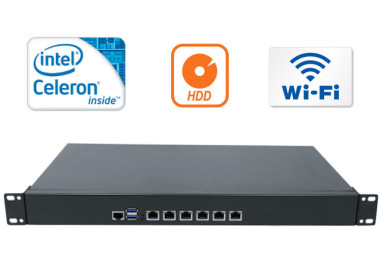

Industrial Computer Fanless MiniPC IBOX-NS-1U6L



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

 MiniPC IBOX-NS-1U6L is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimensions are 300 (W) x 482 (L) x44 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2GB/4GB/8GB DDR3 memory. Integrated Intel HD Graphics video allow you to play a wide range of applications - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD.

Industrial Computer Fanless MiniPC IBOX-NS-1U6L
go top… do góry   menu… menu


Communication & Connectors

Integrated cards - Intel 82583V and Wi-Fi module allows connection to the network. The computer is equipped with: six LAN ports, one VGA port, one RJ-45 COM port, two USB 2.0 ports, and a built-in connector on the motherboard: one mSATA, one disk slot 2.5" HDD/3.5" HDD, one CompactFlash card reader, and one Mini-PCIE connector.



BACK:



Industrial Computer Fanless MiniPC IBOX-NS-1U6L



FRONT:



Industrial Computer Fanless MiniPC IBOX-NS-1U6L



Przemysłowy Komputer Fanless MiniPC IBOX-NS-1U6L



Cooling

The industrial fanless  MiniPC IBOX-NS-1U6L uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… do góry   menu… menu

Application

      Industrial  MiniPC IBOX-NS-1U6L are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications Industrial Computer Fanless MiniPC IBOX-NS-1U6Land industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-NS-1U6L


Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC IBOX-NS-1U6L

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Idunstrial Computer Fanless MiniPC IBOX-NS-1U6L
Industrial Computer Fanless MiniPC IBOX-NS-1U6L

Magazine

Industrial fanless  MiniPC IBOX-NS-1U6L by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC IBOX-NS-1U6L can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-NS-1U6L

Industrial Computer Fanless MiniPC IBOX-NS-1U6L



Specifications


    Dimension



   H: 44 mm

   L: 482 mm

   W: 300 mm
   Processor
    Intel Celeron1037U Dual Core(2x1.8GHz)
   Chipset
    Intel express chipset
   RAM Memory
    2GB/4GB/8GB DDR3
   Graphic Card
    Intel HD Graphics
   WLAN
    6x Intel 82583V
   Connectors

    1x 12V DC

    2x USB 2.0

    6x RJ-45 LAN

    1x RJ-45 COM

    1x VGA

    1x Power ON/OFF

    1x Wi-Fi

    1x Bluetooth
Industrial Computer Fanless MiniPC IBOX-NS-1U6L


Others: -----
Chipset: Intel HM76
CPU Support: -----
Installed CPU: Intel Celeron Dual Core 1037U ( 2x 1.8Ghz)
Memory Support: DDR3 (max. 8GB)
Installed Memory: 4GB DDR3
Graphic Card: Integrated HD Graphic Card
Storage (HDD) Support: -----
Installed Storage (HDD): 500GB HDD
CD/DVD Drive: -----
LAN: 6x Intel 82583V
Wireless LAN card: Yes
Bluetooth: Yes
3G: Nie
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 2x USB2.0
6x LAN
RJ-45 COM
Rear Panel (ports): DC 12V
1x VGA
Power ON/OFF
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 482 x 300 x 44 mm
Weight: ~2.2kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10 ～50℃
IP Norm: -----
Storage temperature: -20 ~ 70℃


CURRENT PRICE
1858.77 € Net
2286.29€ Gross
