Computer Industrial Fanless MiniPC IBOX-513NA v.6
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-fanless-minipc-ibox-513na-v.6-produkt-89660.html

Computer Industrial Fanless MiniPC IBOX-513NA v.6

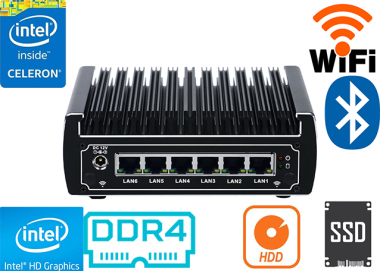

Industrial Computer Fanless MiniPC IBOX-513NA



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

 Industrial Fanless MiniPC IBOX-513NA is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimensions are 155 (W) x126,5 (L) x52,5 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4/8/16/32GB DDR4 memory. Integrated Intel HD Graphics 610 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB/128GB/256GB SSD and 500GB HDD.

Industrial Computer Fanless MiniPC IBOX-513NA
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel 82583V 10/100/1000M Lan and WiFi+Bluetooth module allow connection to the network. The computer is equipped with: six LAN ports, one HDMI ports, four USB 3.0 ports, one RJ-45 COM (RS232) ports.

Industrial Computer Fanless MiniPC IBOX-513NA



Industrial Computer Fanless MiniPC IBOX-513NA

Industrial Computer Fanless MiniPC IBOX-513NA

Industrial Computer Fanless MiniPC IBOX-513NA

The Industrial Computer Fanless MiniPC IBOX-513NA uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… do góry   menu… menu

Application

      Industrial Computer Fanless MiniPC IBOX-513NA are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Computer Fanless MiniPC IBOX-513NA of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-513NA


Areas of use of industrial MiniPC

IBOX-513NA

Digital Engine

Industrial Computer Fanless MiniPC mBOX IBOX-513NA


Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Computer Fanless MiniPC IBOX-513NA
Industrial Computer Fanless MiniPC IBOX-513NA

Industrial Computer Fanless MiniPC IBOX-513NA by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Industrial Computer Fanless MiniPC IBOX-513NA can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-513NA

Industrial Computer Fanless MiniPC IBOX-601i3U



Industrial Computer Fanless MiniPC IBOX-513NA

go top… do góry   menu… menu

Specifications


    Dimension



   H: 52,5 mm

   L: 126,5 mm

   W: 155 mm
   Processor
    Intel Celeron 3865U (2x1,8GHz)
   Chipset
    Intel Chipset
   RAM Memory
    16GB DDR4
   Graphic Card
    Intel HD Graphics 610
   Sound Card
    Realtek ALC662
   WLAN
    Intel 82583V 10/100/1000M Lan
   Connectors

   1x 12V DC-IN

    4x USB 3.0

    6x RJ-45 LAN

    1x HDMI

    1x RJ-45 COM (RS232)

    1x WiFi
Industrial Computer Fanless MiniPC IBOX-513NA


Others: Colour Black
Chipset: Intel express chipset
CPU Support: -----
Installed CPU: Intel Celeron 3865U (2x1,8GHz)
Memory Support: DDR4 (max.32GB) 1866/2133MHz SO-DIMM
Installed Memory: 16GB DDR4
Graphic Card: Intel HD Graphics 610
Storage (HDD) Support: SSD/HDD
mSATA
Installed Storage (HDD): 256GB SSD and 500GB HDD
CD/DVD Drive: -----
LAN: Intel 82583 10/100/1000M Lan
Wireless LAN card: Yes - 802.11 b/g/n
Bluetooth: Bluetooth 4.0
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 4x USB3.0
1x RJ-45 COM(RS232)
Power ON/OFF
1x HDMI
Rear Panel (ports): DC-IN 12V,
6x RJ-45 LAN
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 155 x 126,5 x 52,5 mm
Weight: 1600g
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10 ～60℃
IP Norm: -----
Storage temperature: -20 ~ 80℃


CURRENT PRICE
2491.15 € Net
3064.11€ Gross
