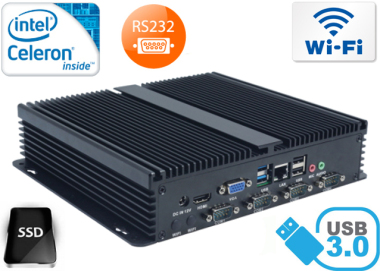

Industrial Fanless |
Description
Housing dimensions are 234 (W) x204 (L) x54 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4/8GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.
|
|
Communication & Connectors |
Integrated card - Intel WGI211AT 1000M Lan, Wi-Fi and Bluetooth modules allows connection to the network. The computer is equipped with: one LAN port, one VGA port, four COM ports (can extend to 6), one HDMI port, one USB 3.0 port, seven USB 2.0 ports, and a built-in connector on the motherboard: two SATA ports, one MiniSATA port, three Mini-PCIE connectors, SIM card slot and one GPIO interface.
BACK:
FRONT:
|
Cooling
The industrial fanless MiniPC IBOX-209 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
Others: | Color Black |
Chipset: | Intel express chipset |
CPU Support: | ----- |
Installed CPU: | Intel Celeron J1900 Quad Core(4x2GHz) |
Memory Support: | DDR3 (max. 8GB) |
Installed Memory: | 8GB DDR3 |
Graphic Card: | Intel HD Graphics |
Storage (HDD) Support: | ----- |
Installed Storage (HDD): | 128GB SSD |
CD/DVD Drive: | ----- |
LAN: | Intel RTL8111E 1000M Lan |
Wireless LAN card: | Yes |
Bluetooth: | Yes |
3G: | No |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |
Front Panel (ports): | 4x USB2.0, Power ON/OFF |
Rear Panel (ports): | 3x USB2.0 1x USB3.0 4x COM(RS232) ( max.6) 1x LAN 1xHDMI DC-IN 12 1x VGA 1x Audio 1x Mic |
Power: | 12V |
Supported OS: | Microsoft Windows: 7/8/8.1/10, Linux |
Installed OS: | ----- |
Dimensions: | 234 x 204 x54 mm |
Weight: | 2kg |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 0 ~ 95% |
Temp: | -20 ~60℃ |
IP Norm: | ----- |
Storage temperature: | -20 ~ 60℃ |
CURRENT PRICE |
|
1576.26 € | Net |
1938.80€ | Gross |
