Industrial Computer Fanless MiniPC IBOX-206(1037UL2) v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-fanless-minipc-ibox-2061037ul2-v.1-produkt-88485.html

Industrial Computer Fanless MiniPC IBOX-206(1037UL2) v.1

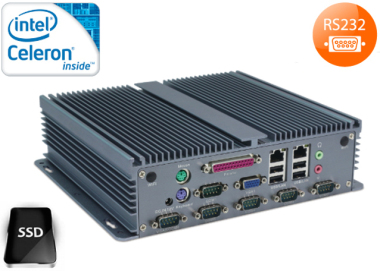

Industrial Computer Fanless MiniPC IBOX-206(1037UL2)



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

 MiniPC IBOX-206(1037UL2) is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimensions are 204 (W) x 234 (L) x65 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4/8GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.

Industrial Computer Fanless MiniPC IBOX-206(1037UL2)
go top… do góry   menu… menu


Communication & Connectors

Integrated cards - Intel RTL8111E 1000M Lan allows connection to the network. The computer is equipped with: two LAN ports,  one VGA port, six COM ports, one LPT port, two PS/2 ports, eight USB 2.0 ports, and a built-in connector on the motherboard: two SATA  ports, one MiniSATA port, one SIM Card slot and two Mini-PCIE connectors.



BACK:



Industrial Computer Fanless MiniPC IBOX-206(1037UL2)



FRONT:



Industrial Computer Fanless MiniPC IBOX-206(1037UL2)



Industrial Computer Fanless MiniPC IBOX-206(1037UL2)

Industrial Computer Fanless MiniPC IBOX-206(1037UL2)

Cooling

The industrial fanless  MiniPC IBOX-206(1037UL2) uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… do góry   menu… menu

Application

      Industrial  MiniPC IBOX-206(1037UL2) are based on high-performance four-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Computer Fanless MiniPC IBOX-206(1037UL2) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-206(1037UL2)


Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC IBOX-206(1037UL2)

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Computer Fanless MiniPC IBOX-206(1037UL2)
Industrial Computer Fanless MiniPC IBOX-206(1037UL2)

Magazine

Industrial fanless  MiniPC IBOX-206(1037UL2) by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC IBOX-206(1037UL2) can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-206(1037UL2)

Industrial Computer Fanless MiniPC IBOX-206(1037UL2)



Specifications


    Dimension



   H: 65 mm

   L: 234 mm

   W: 204 mm
   Processor
    Intel Celeron1037U Dual Core(2x1.8GHz)
   Chipset
    Intel express chipset
   RAM Memory
    2/4/8GB DDR3
   Graphic Card
    Intel HD Graphics
   Sound Card
    Realtek ALC662
   WLAN
    Intel  RTL8111E Gigabit 1000M Lan
   Connectors

    1x 12V DC Jack

     2x PS/2

    8x USB 2.0

    2x RJ-45 LAN

    1x VGA

    1x LPT

    1x Audio

    1x SIM card

    6x COM
Industrial Computer Fanless MiniPC IBOX-206(1037UL2)


Others: Color Black
Chipset: Intel NM70 express chipset
CPU Support: -----
Installed CPU: Intel Celeron Dual Core 1037U ( 2x 1.8Ghz)
Memory Support: DDR3 (max. 8GB)
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 32 GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111E 1000M Lan
Wireless LAN card: -----
Bluetooth: -----
3G: Yes
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 4x USB2.0, Power ON/OFF
Rear Panel (ports): 4x USB2.0
6x COM(RS232)
2x LAN
2xPS/2
DC-IN 12
1x LPT
1x VGA
1x Audio
1x Mic
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 234 x 204 x 65 mm
Weight: -----
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10 ～60℃
IP Norm: -----
Storage temperature: -10 ~ 60℃


CURRENT PRICE
1253.39 € Net
1541.67€ Gross
