Industrial Fanless |
Description
Housing dimensions are 234 (W) x122 (L) x54 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4/8GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.
|
|
Communication & Connectors |
Integrated cards - Intel WGI211AT 1000M Lan and WiFi module allows connection to the network. The computer is equipped with: two LAN ports, one VGA port, six COM ports, one HDMI port, one GPIO interface one USB 3.0 ports, five USB 2.0 ports, SIM Card slot and a built-in connector on the motherboard: two SATA ports, one MiniSATA port, and two Mini-PCIE connectors.
|
Cooling
The industrial fanless MiniPC Nuc IBOX-101 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
Others: | Colour Black |
Chipset: | Intel express chipset |
CPU Support: | ----- |
Installed CPU: | Intel Celeron J1900 Quad Core(4x2GHz) |
Memory Support: | DDR3 (max. 8GB) |
Installed Memory: | 4GB DDR3 |
Graphic Card: | Intel HD Graphics |
Storage (HDD) Support: | ----- |
Installed Storage (HDD): | 500GB HDD |
CD/DVD Drive: | ----- |
LAN: | 2 x Intel WGI211AT 1000M Lan |
Wireless LAN card: | Yes |
Bluetooth: | Yes |
3G: | Yes |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |

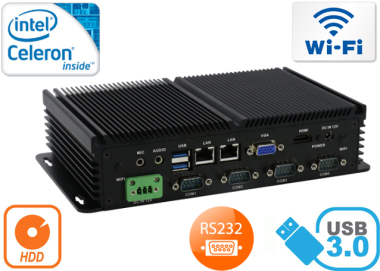

Front Panel (ports): | 1x GPIO 5xUSB2.0 1x SIM 2x COM, Power ON/OFF |
Rear Panel (ports): | 1x USB2.0 1x USB3.0 4x COM 2x LAN 1xHDMI DC-IN 12V Power ON/OFF 1x VGA 1x Audio 1x Mikrofon |
Power: | 12V |
Supported OS: | Microsoft Windows: 7/8/8.1/10, Linux |
Installed OS: | ----- |
Dimensions: | 234 x 122 x 54 mm |
Weight: | ----- |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 0 ~ 95% |
Temp: | -20 ~60℃ |
IP Norm: | ----- |
Storage temperature: | -20 ~ 60℃ |
CURRENT PRICE |
|
1810.48 € | Net |
2226.89€ | Gross |
