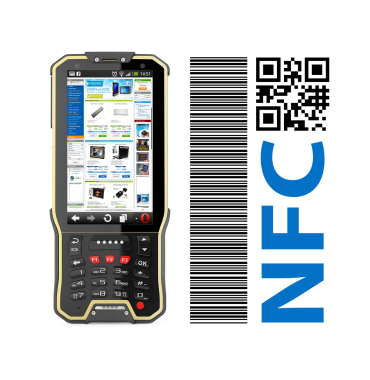

Industrial data collector MobiPad MT40-2D ANDROID 5.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-mt40-2d-produkt-87567.html

Industrial data collector MobiPad MT40-2D ANDROID 5.1

kolektor danych mobipad mt40

MT40 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.


Description

kolektor danych mobipad mt40

 Processor  ARM® Cortex-A53 Quad-core 1.3GHz
 Graphics  Mali-400 MP
 Display  4" (480x800) LCD
 Type of display
 Capacitive
 RAM  1GB DDR3
 ROM  8GB
 Connectors (factory)  MicroUSB (OTG) | MicroSD | Audio Jack | Charging/Docking Port | Dual SIM
   1x - SIM (3G)
   1x - micro SIM (2G)
 GPS (factory)  GPS + A-GPS
 Audio  Built-in Microphone | Speaker | Receiver | Audio Jack
 Camera  (REAR)
 8Mpx (Autofocus + Flash)
 Klawiatura  on-Screen + Numeric
   Home | Menu | Return | ON/OFF
   3x - Additional function keys (F1-F3)
   2x - Barcode Trigger
   2x- Camera Trigger (make photo/video)
 Battery  Li-Ion 3.8V 4200mAh | 15.2Wh

 Standby time - 500h
   Operating time  (depending of usage) - 7h
 Environment  Android 5.1
 Modules (factory)  802.11 b/g/n | Bluetooth v4.0 (LE) | 2G/3G/4G | GPS
 Modules (optional) (1D) Honeywell N4313 | (1D/2D) Honeywell N6603 | NFC
 Dimensions&Weight  166*74*16mm | 350g
 Resistance  IP65
 Sensors (factory)  Accelerometer | Proximity Sensor | Light Sensor | Magnetic Field Sensor
   Orientation Sensor
 Warranty  12 months
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

skaner motorola se955 laser kolektor

Version for you

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.


1D 2D
1D (LASER) -
1D/2D (BI-DIRECTIONAL)
-
NFC

go top… do góry menu… menu

Resistance

industrial data collector with android mobipad mt40

 Operating
-20°C -- +50°C
 Storage -40°C -- +60°C
 Humidity
5% - 95% non-condensing
 Dust IP6x (dust)
 Water IPx5 (water)
 Drop 1.5m

kolektor danych rfid nfc przemysłowy ip65

Waterproof and Dustproof

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact, Protection from infiltration of dust.
6

5

Protection from water projected from a nozzle.

go top… do góry menu… menu

The collection and processing of data

Barcode Scanner

mobipad mt40 se4500 motorola

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

motorola android skaner mobipad mt40

1D 1D / 2D
Honeywell N4313 (LASER) Honeywell ™ N6603 OEM 2D Imager


mobipad mt40 kolektor danych mobilator

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.

kolektor danych android system mobipad mt40 mtk

 Type  NFC
 Frequency 13.56 MHz
 Standard ISO/IEC 15693
  ISO/IEC 14443A/B

go top… do góry menu… menu

Modules and Wireless Networks

data collector mobipad mt40 dualsim android 4.4.2

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal MT40 WCDMA module adapts automatically to transfer and network coverage.

 WIFI  802.11 a/b/g/n
 GPS (Standard)
GPS/Beidou + A-GPS
 Bluetooth Bluetooth v4.0 (LE)
 4G
3G / 4G LTE ( FDD B1B3B7 | TDD B38B39B40 | WCDMA B1B2B5B8 | EVDO BC0 | GSM B2B3B5B8)
  The ability to make voice calls
mobipad kamera 8mpx cmos

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… do góry menu… menu

Minimalism

Charging

MobiPad MT40 has the latest solution that eliminates damage to the micro USB port. Damage to the charging port unieruchomiało work effectively in the enterprise. Manufacturer data collectors noticing this problem applied magnetic charge port, which itself clings on contact with dock connector.

docking charging mobipad mt40

MT40 weighs only 350g and its dimensions (166 x 74 x 16mm) allow you to take it with them everywhere. With sleek performance and energy efficiency is on the forefront of devices in this segment and enjoys great popularity on the Polish market in the industrial segment.

 Dimensions 166 x 74 x 16mm
 Weight 350g

dualsim camera data collector mobipad mt40

go top… do góry menu… menu

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 5% - 95% non-condensing
Waterproof: IPx5
Weight:
Temperature: Operating temperature: -20°C -- +50°C
Storage temperature: -40°C -- +60°C
Shock: -----
Vibration: -----
Drop: 1.5meters
Sand and dust: IP6x
1D barcode scanner (reader): 1D/2D Honeywell ™ N6603 OEM 2D Imager
2D barcode scanner (reader): 1D/2D Honeywell ™ N6603 OEM 2D Imager
RFID scanner (reader): NFC (13.56MHz)
14443A/B
15693
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: No
Dispaly: 4" (480x800) LCD
Brightness: -----
Contrast: -----
Touch screen: Yes - capacitive
Graphics card: Mali-400 MP
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: ARM® Cortex-A53 Quad-core 1.3GHz
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 8GB
Flash Memory:
Battery: Li-Ion 3.8V 4000mAh | 15.2Wh
Working time on battery: Operating time (depending on usage) - 7h
Standby time - 500h
HotSwap battery: No
Fast battery replacement ability: Yes
Size: 166*74*16mm
350g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 5.1
LAN: -----
WLAN: IEEE 802.11b/g/n
Bluetooth: Bluetooth v4.0 (LE)
WAN: 4G TDD-LTE: 1900/2300/2500/2600 MHz
4G FDD-LTE: 1800/2100/2600 MHz
3G TD-SCDMA: 1900/2100 MHz
3G WCDMA: 850/900/1900/2100 MHz
2G GSM: 850/900/1800/1900 MHz; CDMA&EVDO: 800MHz
GPS: GPS/Beidou + A-GPS
Flash Card Reader: Yes - max. 32GB
CD/DVD: -----
Camera: REAR: 8MPX (Auto Focus+ Flash)
Audio: Built-in Microphone | Built-in Speaker | Receiver | Audio Jack
Seciurity: IP65
In/Out:
Keyboard: on-Screen + Numeric
Home | Menu | Return | ON / OFF
3x - Additional function keys
2x - Barcode Trigger
2x- Camera Trigger (make photo/video)
Additional Navigation Devices : -----
Color: czarno-złoty
Optional accessories: -----
Other: Accessories Factory
Charger (5V / 1.2A)
microUSB Cable
Power Cord

Sensors
Accelerometer
Proximity Sensor
Light Sensor
Magnetic Field Sensor
Orientation Sensor


CURRENT PRICE
1702.32 € Net
2093.85€ Gross
