Industrial Data Collector MobiPad MPS8W 2D 2Y ANDROID 9.0 v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-mps8w-2d-2y-android-9.0-v.1-produkt-92132.html

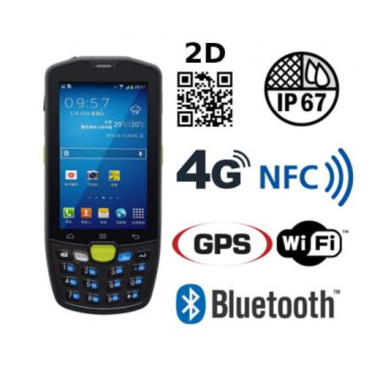

Industrial Data Collector MobiPad MPS8W 2D 2Y ANDROID 9.0 v.1



MobiPad MPS8W 2D

MobiPad MPS8W has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

MobiPad MPS8W 2d CMOS

 Processor Cortex Octa-Core 1.8GHz
 Display  4" (800x480) IPS | Capacitive
 RAM  3GB
 ROM  16GB
 Connectors  microUSB | Micro SD | SIM
 GPS  GPS
 Audio  AudioJack | Speaker | Microphone
 Camera  8Mpx
 Battery

 3.8V 4000mAh Li-Ion

 3.7V, 60mAh Li-Ion (HotSwap - depends of version)
 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 9.0
 Modules(optional)
  3G| 4G | WiFi | Bluetooth | GPS | NFC
 Dimensions  156mm*70mm*27mm
 Resistance  IP67
 Readers  2D Honeywell N6603(factory) | 1D Motorola SE965(optional)



Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

[tab_wersja_id_244]

do góry… do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MobiPad MPS8W 2D CMOS wifi


Near Field Communication (NFC)


Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 5 cm or less.



MobiPad MPS8W 2D cmos wifi nfc



 NFC
 Frequency 13.56 MHz
Reading distance od 1 do 5 cm
Supported standards  ISO 14443
  ISO 15693
  ISO 18092

go top... do góry menu… menu

Resitance

Applicable standards

Operating -20°C -- +50°C
Storage -40°C -- +60°C
Humidity 5% - 95% RH | non-condensing
Dust IP6x (dust)
Water IPx7 (water)
Drop  5ft./1.5m

go top... do góry menu… menu

MobiPad MPS8W 2D CMOS wifi

IP67 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

The first digit [x]
Protection against solid objects		 Protection
Level		 The second digits [y]
Protection against liquids

No special protection

 No special protection
Protection from solid objects greater than 50mm in diameter Protection from dripping water
Protection from object not greater than 12mm in diamete Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter Protection from sprayed water
(tilted up to 60°)
Protection from object not greater than 1mm in diameter Protection from splashed water
Complete protection against contact, Protection against dust deposit Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust Protection against heavy seas, or powerful jets of water
  Protection against immersion
  Protection against complete, continuous submersion in water



go top... do góry menu… menu



Modules and Wireless Networks

MobiPad MPS8W 2D CMOS wifi gps

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G(or 4G) module used in MobiPad MPS8W adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11 a/b/g/n
GPS  Yes
Bluetooth  Bluetooth  4.0
WWAN
 GSM: Quad Band(850/900/1800/1900Mhz)
TD-SCDMA:Band34,Band39
WCDMA:Band1,Band2,Band5,Band8
CDMA 1x /EVDO :BC0
TDD-LTE:Band38,Band39,Band40,Band41
FDD-LTE:Band1,Band3,Band7
  The ability to make voice calls

go top... do góry menu… menu

Minimalism

mobipad 2d cmos MobiPad MPS8W

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad MPS8W. The device weighs just 270g and its dimensions  (156 x 70 x 27mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MPS8W is in a group of devices which enjoy great popularity in the European market in the industrial segment.
 Dimensions 156 ×70 × 27mm
 Weight 270g



Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

MobiPad MPS8W 2D wifi

Customized for Your needs



From now We offer possibility to choose keyboard to MobiPad MPS8W. Thanks  this solution You can customize your device much more to maximize efficiency. Below short description:



Standard - get additional functional buttons and bind them to open installed applications like flashlight, messages or facebook,



Alphanumeric - makes possible to write text by device's keyboard - same like in old generation cell phones,



22 buttons - standard keyboard with 4 navigation buttons and one to block touch screen(operating by navigation buttons).



*shipping can be longer, depends of the selected keyborad...

*
* when ordering please specify the type of keyboard you want, without any information the device will be delivered with a standard keyboard ...



go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...

Durability: IP67
Humidity: 5% - 95% (no condensation)
Waterproof: IP67
Weight:
Temperature: Operating temperature: -20°C -- +50°C
Storage temperature: -20°C -- +60°C
Shock: -----
Vibration: -----
Drop: 1.5 meters
Sand and dust: IP67
1D barcode scanner (reader): -----
2D barcode scanner (reader): 2D (CMOS) Honeywell N6603
RFID scanner (reader): NFC (13.56MHz)
ISO 14443, ISO 15693, ISO 18092
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Yes
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly:
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Cortex-A53 Octa-Core 1.8GHz
Chipset: -----
BIOS: -----
Memory: 3GB
Hard Drive: -----
Flash Memory: 16GB
Battery: 3.8V 4000mAh Li-Ion (Removable)
Built in 3.7V 60mAh Li-Ion backup battery - HotSwap
Working time on battery: >12 hours
HotSwap battery: Yes
Fast battery replacement ability: Yes
Size: 156 × 70 × 27mm- 270g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 9.0
LAN: No
WLAN: 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0
WAN: 4G/3G/GPRS/WCDMA/CDMA
GSM 850/900/1800/1900 MHz
CDMA 1x /EVDO :BC00,
WCDMA: Band1,Band2,Band5,Band8,
TD-SCDMA: Band34,Band39
FDD-LTE: Band1,Band3,Band7
TDD-LTE: Band38,Band39,Band40,Band41
GPS: Built-in
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Rear: 8Mpx (Auto Focus, Flash)
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: 1 x microUSB 2.0, 1 x AudioJack , 1 x Micro SD(max.32GB), 1 x SIM
Keyboard: Numeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: -----
Optional accessories: Pistol grip
Hand Strap
Hand Belt
Capacitive Stylus
Holster
Docking Station
Five Slot Battery Charger
Four Slot Battery Charger
Single Slot Battery Charger
Other: Two year warranty


CURRENT PRICE
2143.49 € Net
2636.49€ Gross
