Rugged data collector MobiPad MP43CE v.11
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-mp43ce-v.11-produkt-88498.html

Rugged data collector MobiPad MP43CE v.11

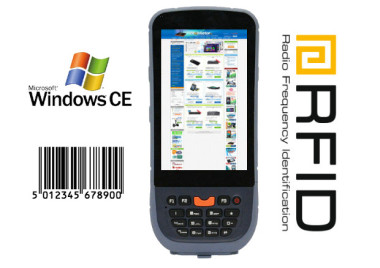

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer Windows CE

Industrial Data Collector MobiPad MP43CE has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Specification

Processor TI3715 A8 1GHz
RAM 512MB
Flash memory 512MB
Connectors AudioJack | SIM | MicroSD | Micro USB
GPS UBLOX 6010
Audio AudioJack
Battery 4500mAh 3.7V Li-Ion | 2250mAh 7.4V Li-Ion (version with printer)
Keyboard Physical + Function Keys | On-Screen
Operating system Windows CE 6.0
Modules Bluetooth | Wi-Fi | GPS | 3G (optional)
Readers (optional) RFID | 1D Scanner (Symbol) | 1D Scanner (Honeywell) | 2D Scanner
Dimensions 175x76x27mm
Weight 400g
Resistance IP65
Check "Available versions" tab to see available configurations of this device. To get more information about this product click "Ask about the product" or use the Contact form.

MobiPad MP43CE is offered with the latest TI3715 A8 1GHz processor to ensure the highest performance, low power consumption and long battery life. The data collector works with Windows CE 6.0 operating system to meet the growing requirements in industrial applications.

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer CE

Select the version dedicated to yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

  1D
Symbol
1D
  Honeywell
    2D     Printer  LF RFID LF RFID
( 125kHz )
HF RFID UHF RFID     3G
v.1
v.2
v.3
v.3.1
v.4
v.5
v.6
v.7
v.8
v.9
v.10
v.11
v.12
v.13
v.14
v.15
v.16
v.17
v.18

The collection and processing of data

back to top… do góry menu… menu

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer Windows CE

Radio-Frequency Identification (RFID)

RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer Windows CE

RFID LF 134.2khz, ISO11784/11785, FDX-B/HDX | 125KHz (2nd option)
RFID HF 13.56MHz ISO 14443A/B ISO 15693
RFID UHF 860-960MHZ ISO18000-6C (EPC Gen2) /ISO18000-6A,B

Printer

MobiPad MP43CE with built-in thermal printer is designed to work in the field, where it can be used to print receipts and receipts. A small number of moving parts and a robust design ensure trouble-free operation even in the harshest conditions. The use of thermal printing technology eliminates the need for expensive ink or toner. No matter how many pages will be printed pages - ink in the printer does not run out.

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer

Printing method Direct thermal line printing
Paper width 57mm
Print width 48mm
Resolution Ration 8 dots/mm (384 dots/line )
Life of printing head 5,000,000 -15,000,000 character lines
Printing speed 40-60mm/sec
Character size 8x16dots , 12x24dots
Paper supplied 57mm wide , 22mmø
Interface Serial RS232C/TTL
Operating temperature 0℃ -- 50℃
Storage temperature -20℃ --  60℃
Operating humidty 10%--80%
Storage humidty 10%--90%

Resistance

back to top… do góry menu… menu

Work temperature -10℃ to 50℃
Humidity 10% - 90% (non-condensing)
Dust resistance IPx6
Water resistance IPx5
Drop resistance 1.5m

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer bluetooth

Resistance IP65

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No protection 0 0 No protection
Protection against any large surface of the body, such as the back of a hand 1 1 Protection against vertically dripping water
Protection from object > 12mm, e.g. Fingers or similar objects 2 2 Protection against vertically dripping water when device is tilted at an angle up to 15 degrees
Protection from object > 2.5mm, e.g tools, thick wires, etc. 3 3 Protection against direct sprays of water when device is tilted at an angle up to 60 degrees
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. 4 4 Protection from sprays and splashing of water in all directions
Dust protected - Ingress of dust is almost entirely prevented. 5 5 Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction
Dust tight - No ingress of dust, complete protection against contact. 6 6 Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction
7 7 Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins
8 8 Protected from immersion in water with a depth of more than 1 meter

Modules and wireless networks

back to top… do góry menu… menu

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer bluetooth gps Windows CE

Thanks to the WCDMA module, you only need to insert a SIM card in the slot and you are able to instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad MP43CE adjusts automatically to transfer and network coverage.

Wi-Fi 802.11 b/g/n
GPS UBLOX 6010
Bluetooth Yes
3G (optional) GSM band 850/900/1800/1900MHz
GPRS, EDGE, HSPA
UMTS 850/900/1900/ 2100MHz
Phone calls No

Minimalism and comfort

back to top… do góry menu… menu

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, this problem disappears forever with MobiPad MP43CE. The device weighs just 400g and its dimensions (175x76x27mm) allow you to take this device everywhere.

MobiPad rugged data collector rfid nfc wi-fi 1d 2d printer bluetooth Windows CE


Durability: IP65
Humidity: 10% -- 90% non-condensation
Waterproof: IP65
Weight:
Temperature: Operating temperature: -10°C -- +50°C
Shock: -----
Vibration: -----
Drop: 1.5m
Sand and dust: IP65
1D barcode scanner (reader): Symbol SE955
2D barcode scanner (reader): -----
RFID scanner (reader): ISO14443 A/B and ISO15693 13.56MHz RFID HF
134.2khz, ISO11784/11785, FDX-B/HDX
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: No
COM port: Yes - (RS232) via an adapter
Dispaly: 4.5" IPS (800x480) 4 WIRE - resistive
Brightness: -----
Contrast: -----
Touch screen: Yes - Resistive
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Texas Instruments 3715-A8 (1Ghz)
Chipset: -----
BIOS: -----
Memory: 512MB DDR
Hard Drive: 512MB
Flash Memory: Yes
Battery: Li-Ion 4500mAh
Working time on battery: Standby Time: 500h
Calls Time: 6h
Charging Time: 4h
HotSwap battery: No
Fast battery replacement ability: -----
Size: 175x76x27mm - 400g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Windows CE 6.0
LAN: -----
WLAN: IEEE 802.11b/g/n
Bluetooth: Yes
WAN: -----
GPS: Yes - GPS Standard (ublox 6010)
Flash Card Reader: micro SD (max. 32GB)
CD/DVD: -----
Camera: -----
Audio: Audio Jack
Seciurity: -----
In/Out: Micro SD | USB HOST/RS232 | USB 2.0/MicroUSB
Keyboard: Onscreen + Keyboard + Function keys
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: -----


CURRENT PRICE
2646.65 € Net
3255.38€ Gross
