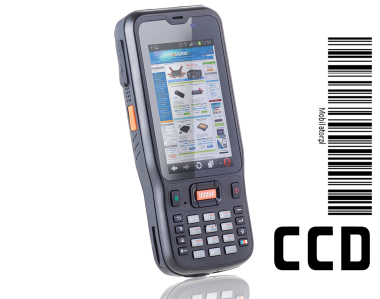

Industrial Data Collector MobiPad MH-83 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-mh-83-v.2-produkt-87370.html

Industrial Data Collector MobiPad MH-83 v.2

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d


MobiPad MH83  has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

android-4_1_2-3G-WIFI-1D-2D-RFID-GPS-BT4_0-IP54-1_5m-5_0MPx

 Processor  Samsung  S7898 Dual Core 1.0GHz
 Graphics card  PowerVR SGX540
 Display 3.5" (800x480) WVGA | LCD | Sunlight readable | IPS: capacitive
 RAM  512MB
 ROM  4GB
 Connectors  MicroSD : Mini USB
 GPS  GPS | A-GPS | EPO
 Audio  AudioJack : Speaker : Microphone
 Camera  5Mpx (Auto-Focus + LED Flash)
 Battery  Dual Battery: - Bulit-in back battery 290mAh
                       - Replaceable battery 4500mAh
 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 4.1.2
 Modules (factory)
 GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth  4.0 : GPS+A-GPS
 Dimensions  157 mm x 76 mm x 28 mm- 324g
 Resistance  IP54
 Readers (optional)
RFID LF (125khz/134.2khz ) - 5cm 1D - Standard (CCD)

  1D - MOTROLA: SE955 (LASER)
    1D/2D -Motorola SE4500 (CMOS)
 Readers NFC
NFC 13.56Mhz  ISO14443 A / B i ISO15693
 Sensors
 Light sensor, accelerometer, proximity sensor, Irda Reciver/Transmitter with 5M distance
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


1D (CCD)
1D (LASER)
1D/2D (CMOS)
LF (5cm) Gun handle
NFC IrDA (up to 5m)
3G Camera
v.1 - - - - -
v.2 - - - -
v.3 - - - -
v.4 - - -
v.5 - - - -
v.6 - - -
v.7 - - - -
v.8 - - -
v.9 - -
v.10 - -

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
Standard (CCD)
MOTOROLA: SE4500 (CMOS)
MOTOROLA: SE955 (LASER)

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

RFID LF (125KHz / 134,2 KHz)

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

The LF band covers frequencies from 30 KHz to 300 KHz. Typically LF RFID systems operate at 125 KHz, although there are some that operate at 134 KHz. This frequency band provides a short read range of 10 cm, and has slower read speed than the higher frequencies, but is not very sensitive to radio wave interference.

  LF
 Frequency 125 kHz / 134.2 kHz
 Reading Range up to 5cm

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

NFC

NFC NFC 13.56Mhz  ISO14443 A / B i ISO15693

NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.

Far-infrared meter reading (IPOR)

Optical rangefinder in the tablet industry MH83 prove you that the lines are gone. Built-in rangefinder will allow you to easily and accurately measure the distance without having to rebuy an additional device.

go top... do góry menu… menu



Resitance

Applicable standards

Operating -10°C -- +50°C
Storage -20°C -- +70°C
Humidity 5% - 95% RH | non-condensing
Dust IP5x (dust)
Water IPx4 (water)
Drop Multiple drops to concrete 4.9ft./1.5m the entire operation range

go top... do góry menu… menu

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

IP54 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11a/b/g/n
GPS  GPS, supported A-GPS, EPO
Bluetooth  Bluetooth 4.0 + EDR; Class II
GSM/3G  WCDMA/EVDO/TD/FDD-LTE/GSM
   The ability to make voice calls

go top... do góry menu… menu

Minimalism

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MH83. The device weighs just 324g and its dimensions (157 x 76 x 28mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MH83 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

 Dimensions 157 × 76 × 28mm
 Weight 324g

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

In addition, the use of hot-swap function known from mobile phones. Allows you to quickly connect additional battery without shutting down the operating system. So when you replace the battery will not lose valuable data.

Przemys³owy Kolektor Danych MobiPad MH83 RUGGED DATA COLLECTOR MH-83 rfid LF HF 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP54
Humidity: 0 to 95% relative humidity
Waterproof: IP54
Weight:
Temperature: Operating temperature: -10°C -- +50°C
Storage temperature: -20°C -- +70°C
Shock: -----
Vibration: -----
Drop: 1.5 meters
Sand and dust: IP54
1D barcode scanner (reader): 1D CCD
2D barcode scanner (reader): -----
RFID scanner (reader): NFC (13.56Mhz)
ISO14443 A/B
ISO15693
Magnetic card reader (MSR):
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 3.5"(800x480), WVGA LCD, IPS, Sunlight readable: capacitive
Brightness: 500nits
Contrast: 500:1
Touch screen: Tak
Graphics card: PowerVR SGX540
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Samsung S7898 Dual Core 1.0GHz
Chipset: -----
BIOS: -----
Memory: 512MB
Hard Drive: 4GB
Flash Memory:
Battery: 4500mAh Li-Ion + 290mAh
Working time on battery: 10 hours
HotSwap battery: Yes
Fast battery replacement ability: Yes
Size: 157 mm x 76 mm x 28 mm- 324g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.1.2
LAN: No
WLAN: IEEE 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0 + EDR
WAN: WCDMA/EVDO/TD/FDD-LTE with data and voice
GPS: Built-in + A-GPS, EPO
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Yes - 5Mpx (Auto-Focus + LED Flash)
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: mini USB (support OTG), AudioJack, Mirco SD card slot (max.32GB)
Keyboard: Numeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: black
Optional accessories: Gun Handle
Other:

Factory accessories:
- cover
- hand strap

Sensors:
- accelerometer
- light sensor
- proximity sensor
- telemeters to 5 m (IrDA)



CURRENT PRICE
2130.30 € Net
2620.27€ Gross
