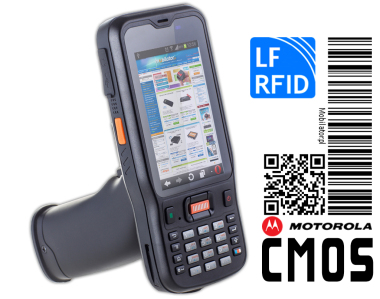

MobiPad MH83 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
|
Description |
|
Select a version for yourselfSelect a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
|
The collection and processing of data |
||||||||
Barcode ScannerBarcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
|
||||||||
RFID
RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read. RFID LF (125KHz / 134,2 KHz)
The LF band covers frequencies from 30 KHz to 300 KHz. Typically LF RFID systems operate at 125 KHz, although there are some that operate at 134 KHz. This frequency band provides a short read range of 10 cm, and has slower read speed than the higher frequencies, but is not very sensitive to radio wave interference.
NFC
NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with. Far-infrared meter reading (IPOR)Optical rangefinder in the tablet industry MH83 prove you that the lines are gone. Built-in rangefinder will allow you to easily and accurately measure the distance without having to rebuy an additional device.
|
Quick change batteryFriendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important. In addition, the use of hot-swap function known from mobile phones. Allows you to quickly connect additional battery without shutting down the operating system. So when you replace the battery will not lose valuable data.
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ... |
Durability: | IP54 |
Humidity: | 0 to 95% relative humidity |
Waterproof: | IP54 |
Weight: | |
Temperature: | Operating temperature: -10°C -- +50°C Storage temperature: -20°C -- +70°C |
Shock: | ----- |
Vibration: | ----- |
Drop: | 1.5 meters |
Sand and dust: | IP54 |
1D barcode scanner (reader): | ----- |
2D barcode scanner (reader): | 2D CMOS - Motorola SE4500 |
RFID scanner (reader): | NFC (13.56Mhz) ISO14443 A/B ISO15693 RFID LF (125khz lub 134.2khz) odleg³o¶æ odczytu: 5cm |
Magnetic card reader (MSR): | |
Microchip card reader: | ----- |
Docking station connector: | ----- |
VESA standard – holders and mounts support: | ----- |
COM port: | ----- |
Dispaly: | 3.5"(800x480), WVGA LCD, IPS, Sunlight readable: capacitive |
Brightness: | 500nits |
Contrast: | 500:1 |
Touch screen: | Tak |
Graphics card: | PowerVR SGX540 |
Swivel Hinge: | ----- |
VGA out: | No |
TV Out: | ----- |
TV Tuner: | ----- |
Processor: | Samsung S7898 Dual Core 1.0GHz |
Chipset: | ----- |
BIOS: | ----- |
Memory: | 512MB |
Hard Drive: | 4GB |
Flash Memory: | |
Battery: | 4500mAh Li-Ion + 290mAh |
Working time on battery: | 10 hours |
HotSwap battery: | Yes |
Fast battery replacement ability: | Yes |
Size: | 157 mm x 76 mm x 28 mm- 324g |
Casing material: | high quality plastic and rubber |
Fanless casing: | Yes |
Operating System: | Android 4.1.2 |
LAN: | No |
WLAN: | IEEE 802.11 a/b/g/n |
Bluetooth: | Bluetooth 4.0 + EDR |
WAN: | WCDMA/EVDO/TD/FDD-LTE with data and voice |
GPS: | Built-in + A-GPS, EPO |
Flash Card Reader: | microSD (max. 32GB) |
CD/DVD: | ----- |
Camera: | Yes - 5Mpx (Auto-Focus + LED Flash) |
Audio: | AudioJack : Built-in Speaker : Microphone |
Seciurity: | ----- |
In/Out: | mini USB (support OTG), AudioJack, Mirco SD card slot (max.32GB) |
Keyboard: | Numeric (+ function keys) : On-screen |
Additional Navigation Devices : | ----- |
Color: | black |
Optional accessories: | Gun Handle |
Other: | Factory accessories: Sensors: |
CURRENT PRICE |
|
3054.70 € | Net |
3757.28€ | Gross |
