Industrial Data Collector MobiPad H9 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-h9-v.2-produkt-88254.html

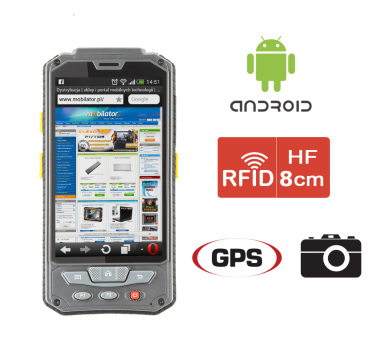

Industrial Data Collector MobiPad H9 v.2



ip 65 kolektor danych z rfid hf lf 125khz motorola laser


MobiPad H9 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

mobipad h9 kolektor danych 3g smartfon przemyslowy



 Procesor  Cortex A7 1.2GHz dual-core
 Display  4.3" TFT-LCD (480x800)
 Type of display
 LED Backlight |  Capacitive | Touch screen
 RAM  1GB
 ROM  4GB
 Connectors   SIM | MicroSD | Mini USB | DC In
 GPS  GPS + A-GPS
 Audio  Speaker | Microphone
 Camera  5Mpx +  Flash
 Battery  3.7V 4100mAh Li-Ion
 Keyboard  Onscreen | Physical keys
 Physical keys
 Power | Return | Home
 Environment  Android 4.4.2
 3G (WCDMA)
 850/1900/2100MHz
 GSM/GPRS/Edge  850/900/1800/1900MHz
 Modules (factory)
 WIFI (b/g/n) | Bluetooth 4.0 | GPS | 3G
 Dimensions  148 x 77.5 x 27mm
 Weight  300g
   IP65
 Czytniki (opcjonalnie)
RFID HF (13.56Mhz) - 8 cm
1D - Honeywell N431x (LASER)

RFID LF (125KHz FDX-B) - 10 cm
2D - MOTOROLA SE4500 (CMOS)
  RFID UHF (865-868Mhz) - 1.5 m

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

mobipad h9 sim microsd rfid lf hf

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


1D (LASER)
2D (CMOS)
RFID LF
RFID HF
RFID UHF
v.1 - - - - -
v.2 - - - -
v.3 - - - -
v.3.1 - - -
v.4 - - - -
v.5 - - - -
v.7 - - -
v.8 - - -
v.8.1 -
v.9 - -
v.10 - - -
v.10.1 - -
UHF v.1 - - - -
UHF v.2 - - -
UHF v.3 - - -

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

motorola se955 se4500 kolektor danych h9

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
Honeywell: N431x (LASER) MOTOROLA: SE4500 (CMOS)

skaner kodow kreskowych kolektor tablet przemyslowy h9

  MOTOROLA SE955 (LASER) MOTOROLA SE4500 (CMOS)
1D All major codes All major codes
2D -

2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

LF
(125KHz FDX-B)
HF
(13.56MHz)
UHF
(865-868MHz)
ISO11784 | ISO11785 ISO14443A | ISO15693 EPC C1 GEN2 | ISO18000-6C



rfid hf 13.56 rfid lf 125khz  rfid lf 134.2khz

In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO).  The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.



  LF HF UHF
 Frequency 125 KHz 13.56 MHz 865-868 MHz
Reading distance do 10 cm do 8 cm
do 1.5 m

go top... do góry menu… menu



Resistance

Applicable standards

Operating -20°C -- +50°C
Storage -20°C -- +70°C
Humidity 5% - 95% RH | noncondensing
Dust IP6x (dust)
Water IPx5 (water)
Electrostatic Discharge
± air discharge, ± direct discharge, ± indirect discharge
Drop 1.5m the entire operation range

go top... do góry menu… menu



odpornosc na upadek h9 mobipad ip65

IP65

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.
6

5

Protection from water projected from a nozzle.

go top... do góry menu… menu



Modules and Wireless Networks

2g 3g wcdma kolektor danych h9 mobipad

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in H9 adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

kolektor danych mobipad h9 wcdma 3g 2g

WIFI  IEEE 802.11b/g/n
GPS  Built-in | A-GPS
Bluetooth  Bluetooth 4.0
3G

WCDMA: 850/1900/2100MHz

GSM/GPRS/Edge: 850/900/1800/1900Mhz

    The ability to make voice calls

go top... do góry menu… menu



Minimalism

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have H9. The device weighs just 300g and its dimensions (148 x 77.5 x 27mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MobiPad is in a group of devices which enjoy great popularity in the European market in the industrial segment.

 Dimensions 148 x 77.5 x 27mm
 Weight 300g



go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 5% - 95% RH | non-condensing
Waterproof: IP65
Weight:
Temperature: Operating temperature: -20°C -- +50°C
Storage temperature: -20°C -- +70°C
Shock: -----
Vibration: -----
Drop: 1.5m in the whole temperature range
Sand and dust: IP65
1D barcode scanner (reader): none (available in other versions)
2D barcode scanner (reader): none (available in other versions)
RFID scanner (reader): RFID HF (13.56MHz)
ISO 14443A | ISO 15693
2cm to 8cm
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 4.3" TFT-LCD (480x800) | Capacitive
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Cortex A7 1.2G Hz dual-core
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 4GB
Flash Memory: Yes
Battery: 3.7V 4100mAh Li-Ion
Working time on battery: Working time: about 8 hours (depending on usage)
HotSwap battery: -----
Fast battery replacement ability: Yes
Size: 148 x 77.5 x 27mm
300g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.4.2
LAN: -----
WLAN: IEEE 802.11b/g/n
Bluetooth: Bluetooth 4.0
WAN: 3G: 850/1900/2100MHz
GSM/GPRS/Edge 850/900/1800/1900Mhz
GPS: Built-in
A-GPS
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Yes - 5Mpx + Flash
Audio: Speaker | Receiver | Microphone
Seciurity: -----
In/Out: 1x SIM | 1x MicroSD | 1x Mini USB | DC In
Keyboard: On-Screen | Functional keys
Additional Navigation Devices : -----
Color: gray with yellow buttons
Optional accessories: -----
Other: Charger


CURRENT PRICE
1658.67 € Net
2040.16€ Gross
