Rugged data collector MobiPad 7SA07 1D Laser
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-7sa07-1d-laser-produkt-88779.html

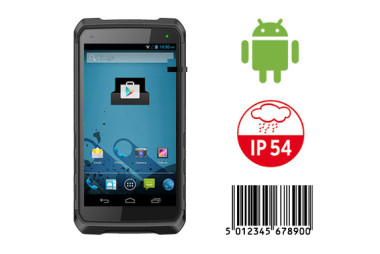

Rugged data collector MobiPad 7SA07 1D Laser

MobiPad rugged data collector wi-fi 1d 2d Android

Industrial Data Collector MobiPad 7SA07 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Specification

Processor MTK 6582 Quad Core 1.3GHz
RAM 1GB
Flash memory 8GB
Connectors SIM | MicroSD | Micro USB
GPS GPS + AGPS
Battery Li-Ion 4800mAh
Keyboard On-Screen + Function Keys
Operating system Android 4.4.2
Modules Bluetooth | Wi-Fi | GPS | 3G
Readers (optional) 1D Scanner (Dedicated)
Dimensions 161x84x24mm
Weight 1500g (with battery)
Resistance IP54
Check "Available versions" tab to see available configurations of this device. To get more information about this product click "Ask about the product" or use the Contact form.

MobiPad 7SA07 is offered with the latest MTK 6582 Quad Core 1.3GHz processor to ensure the highest performance, low power consumption and long battery life. The data collector works with Android 4.4.2 operating system to meet the growing requirements in industrial applications.

MobiPad rugged data collector wi-fi 1d 2d Android

The collection and processing of data

back to top… do g鏎y menu… menu

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly

MobiPad rugged data collector wi-fi 1d 2d Android

Resistance

back to top… do g鏎y menu… menu

Work temperature -20℃ to 60℃
Storage temperature -30℃ to 70℃
Humidity 5% - 95% (non-condensing)
Dust resistance IP5x
Water resistance IPx4
Drop resistance 1.5m

MobiPad rugged data collector wi-fi 1d 2d Android

Resistance IP54

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No protection 0 0 No protection
Protection against any large surface of the body, such as the back of a hand 1 1 Protection against vertically dripping water
Protection from object > 12mm, e.g. Fingers or similar objects 2 2 Protection against vertically dripping water when device is tilted at an angle up to 15 degrees
Protection from object > 2.5mm, e.g tools, thick wires, etc. 3 3 Protection against direct sprays of water when device is tilted at an angle up to 60 degrees
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. 4 4 Protection from sprays and splashing of water in all directions
Dust protected - Ingress of dust is almost entirely prevented. 5 5 Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction
Dust tight - No ingress of dust, complete protection against contact. 6 6 Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction
7 7 Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins
8 8 Protected from immersion in water with a depth of more than 1 meter

Application

Industrial data collector MobiPad 7SA07 is specifically designed for use in harsh industrial environments, as well as on the outside. Resistant plastic housing protects the display from the outside against mechanical damage, drops of water, sand and dust. MobiPad 7SA07 is the best solution in conditions where there is dust or moisture.

MobiPad rugged data collector wi-fi 1d 2d Android

Data collectors in the form of tablets and smartphones, thanks to its functionality and the ability to install in them a number of modules have been used in almost all fields of industry and not only. Collectors equipped with barcode scanners and RFID are primarily used in warehouses where, thanks to them, time-consuming activities will no longer be a problem. In turn, NFC readers can be used in both the smaller and larger stores as a payment card reader, making the payment becomes fast and convenient as never before.

Modules and wireless networks

back to top… do g鏎y menu… menu

MobiPad rugged data collector wi-fi 1d 2d Android

Thanks to the WCDMA module, you only need to insert a SIM card in the slot and you are able to instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad 7SA07 adjusts automatically to transfer and network coverage.

Wi-Fi 802.11 a/b/g
GPS GPS + AGPS
Bluetooth Bluetooth 4.0
3G (optional) GSM/GPRS/EDGE(850/900/1800/1900MHz)
WCDMA(850/2100MHz)
Phone calls Yes (need wireless headset)

Minimalism and comfort

back to top… do g鏎y menu… menu

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, this problem disappears forever with MobiPad 7SA07. The device weighs just 1500g with battery, and its dimensions (161x84x24mm) allow you to take this device everywhere.

MobiPad rugged data collector wi-fi 1d 2d Android


Durability: IP54
Humidity: 5% -- 95% bez kondensacji
Waterproof: IPx4
Weight:
Temperature: Operating temperature: -20蚓 -- +60蚓
Storage temperature: -30蚓 -- +70蚓
Shock: -----
Vibration: -----
Drop: 1.5m
Sand and dust: IP5x
1D barcode scanner (reader): Dedicated
2D barcode scanner (reader): -----
RFID scanner (reader): -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 5.5" IPS (1280x720)
Brightness: ~300Nit
Contrast: -----
Touch screen: Yes - Capacitive
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: MTK 6582 Quad Core 1.3GHz
Chipset: -----
BIOS: -----
Memory: 1GB DDR
Hard Drive: 8GB
Flash Memory: Yes
Battery: Li-Ion 4800mAh
Working time on battery: -----
HotSwap battery: No
Fast battery replacement ability: -----
Size: 161x84x24mm - 1.500g (with battery)
Casing material: High quality plastic
Fanless casing: Yes
Operating System: Android 4.4.2
LAN: -----
WLAN: IEEE 802.11b/g/n
Bluetooth: Bluetooth 4.0
WAN: GSM/GPRS/EDGE(850/900/1800/1900MHz)
WCDMA(850/2100MHz)
GPS: GPS + AGPS
Flash Card Reader: micro SD (max. 32GB)
CD/DVD: -----
Camera: 5Mpx + Autofocus + Flash
Audio: -----
Seciurity: -----
In/Out: Micro USB | Micro SD | SIM
Keyboard: Onscreen + Function keys
Additional Navigation Devices : -----
Color: Black
Optional accessories: ----
Other: -----


CURRENT PRICE
1630.78 € Net
2005.86€ Gross
