Industrial Fanless MiniPC mBOX Nuc Q220N-01 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-fanless-minipc-mbox-nuc-q220n-01-v.2-produkt-89180.html

Industrial Fanless MiniPC mBOX Nuc Q220N-01 v.2

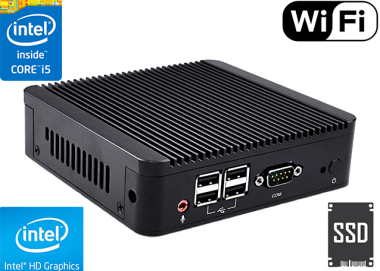

Industrial Computer Fanless MiniPC mBOX Nuc Q220N



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

 Industrial Fanless MiniPC mBOX Nuc Q220N is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimensions are 134 (W) x128 (L) x38 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4GB DDR3 memory. Integrated Intel HD Graphics 4000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD.

Industrial Computer Fanless MiniPC mBOX Nuc Q220N
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Realtek RTL8111E 10/100/1000 Controller  and WiFi module allow connection to the network. The computer is equipped with: one LAN port, one HDMI port, one VGA port, five USB 2.0 ports, one COM(RS232) port one Audio input and one Mic output.

Industrial Computer Fanless MiniPC mBOX Nuc Q220N



Industrial Computer Fanless MiniPC mBOX Nuc Q220N

Industrial Computer Fanless MiniPC mBOX Nuc Q220N intel i5

Industrial Computer Fanless MiniPC mBOX Nuc Q220N

Cooling

The Industrial Computer Fanless MiniPC mBOX Nuc Q220N uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… do góry   menu… menu

Application

      Industrial Computer Fanless MiniPC mBOX Nuc Q220N are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Computer Fanless MiniPC mBOX Nuc Q220N of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC mBOX Nuc Q220N


Areas of use of industrial MiniPC

mBOX-Q220N

Digital Engine

Industrial Computer Fanless MiniPC mBOX Nuc Q220N

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Computer Fanless MiniPC mBOX Nuc Q220N
Industrial Computer Fanless MiniPC mBOX Nuc Q220N

Magazine

Industrial Computer Fanless MiniPC mBOX Nuc Q220N by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial Computer Fanless MiniPC mBOX Nuc Q220N can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC mBOX Nuc Q220N

Industrial Computer Fanless MiniPC mBOX Nuc Q220N



Industrial Computer Fanless MiniPC mBOX Nuc Q220N

go top… do góry   menu… menu

Specifications


    Dimension



   H: 38 mm

   L: 128 mm

   W: 134 mm
   Processor
    Intel i5 3317U Dual Core (2x1,7GHz)
   Chipset
    Intel NM70
   RAM Memory
    4GB DDR3
   Graphic Card
    Intel HD Graphics 4000
   Sound Card
    Realtek ALC662
   WLAN
    Realtek RTL8111E 10/100/1000 Controller
   Connectors

   1x 12V DC Jack

   1x VGA

    5x USB 2.0

    1x RJ-45 LAN

   1x Mic

   1x HDMI

   1x Audio

   1x COM(RS232)
Industrial Computer Fanless MiniPC mBOX Nuc Q220N


Others: Colour Black
Chipset: Intel express chipset
CPU Support: -----
Installed CPU: Intel i5 3317U Dual Core (2x1,7GHz)
Memory Support: DDR3 (max. 8GB) 1333MHz/1600MHz SO-DIMM
Installed Memory: 4GB DDR3
Graphic Card: Intel HD Graphics 4400
Storage (HDD) Support: SSD
mSATA
Installed Storage (HDD): 64GB SSD
CD/DVD Drive: -----
LAN: Realtek RTL8111E 10/100/1000 Controller
Wireless LAN card: Yes - 802.11 b/g/n
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 4x USB2.0
1x COM(RS232),
1x Mic,
Power ON/OFF
Rear Panel (ports): DC-IN 12V,
1x RJ-45 LAN,
1x Audio,
1x HDMI,
1x VGA,
1x USB 2.0
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 134 x 128 x 38 mm
Weight: 680g
Expansion: -----
Fanless: Yes
Humidity: 10 ~ 90%
Temp: 0 ～50℃
IP Norm: -----
Storage temperature: -20 ~ 80℃


CURRENT PRICE
1607.58 € Net
1977.32€ Gross
